SRP Pistons SRP271054 Pro Flat Top Forged Piston & Rings Chev SB V8 4.030 Bore 4" Stroke

1 2

SRP Pistons

SRP271054
$1,652.25 AUD
$1,652.25 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

SRP Pistons SRP271054 Pro Flat Top Forged Piston & Rings Chev SB V8 4.030 Bore 4" Stroke

Item Description

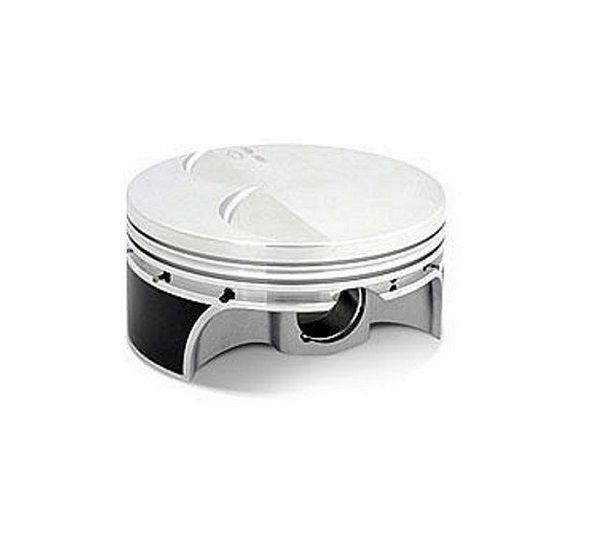

SRP PRO FLAT TOP FORGED PISTON & RINGS SRP271054 CHEV SB V8 4.030" BORE 4" STROKE
SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1.5, 1.5, 3.0mm rings.Specs:
Application: Chevy small block 350 V8
Bore (in): 4.030 in.
Bore (mm): 102.362mm
Stroke (in.): 4.000in.
Rod Length (in.): 6.000 in.
Oversize: 0.030
Piston Style: Dish top
Piston Material: Forged aluminum
Compression Distance (in): 1.000 in.
Piston Head Volume (cc): -5.00cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.927 in.
Gapless: No
File Fi No
Top Ring Thickness: 1.2mm
Top Ring Material: Steel
Top Ring Facing Material: Steel
Second Ring Thickness: 1.5mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 3.0mm
Oil Ring Material: Chrome plated carbon steel
Oil Ring Tension: Standard
Quantity: Sold as a kit.
Notes: Oil rail supports included.



Manufacturer Information

  • Manufacturer: SRP Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
