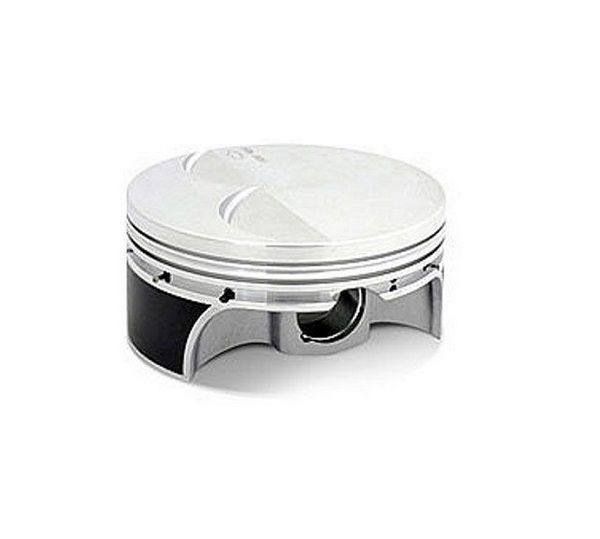

SRP Pistons SRP271063 Chev 400 Pro Flat Top Piston & Rings 4.155 Bore 4"/3.480" Stroke

Item Description

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more. SRP Professional pistons include features used in professional racing such as lightweight forged side relief (FSR) forgings, high quality wrist pins, and CNC machined ring grooves and skirts. In addition, every package includes JE Pro Seal Premium Piston Rings. The included ring set features a 1.2 premium steel top ring, 1.5 Napier (hooked face) second ring and 3.0mmstandard tension oil ring. Every piston is designed and manufactured in the USA at the advanced JE/SRP piston manufacturing center.



  • Application: Chev Small Block 400ci V8.
  • Bore (in): 4.155 in.
  • Bore (mm): 105.537mm
  • Oversize: 0.030
  • Stroke (in.): 4.000 in. (434), 3.480 in. (377)
  • Rod Length (in.): 6.000 in. (434), 6.250 in. (377)
  • Piston Style: Flat Top
  • Piston Material: Forged aluminum
  • Compression Distance (in): 1.000 in.
  • Piston Head Volume (cc): -5.00cc
  • Wrist Pin Style: Press-fit or floating
  • Pin Diameter (in): 0.927 in.
  • Gapless: No
  • File Fi No
  • Top Ring Thickness: 1.2mm
  • Top Ring Material: Steel
  • Top Ring Facing Material: Steel
  • Second Ring Thickness: 1.5mm
  • Second Ring Material: Cast iron
  • Second Ring Facing Material: Cast iron
  • Oil Ring Thickness: 3.0mm
  • Oil Ring Material: Chrome plated carbon steel
  • Oil Ring Tension: Standard
  • Quantity: Sold as a kit.
  • Notes: Oil rail supports included.

Manufacturer Information

  • Manufacturer: SRP Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
