SRP Pistons

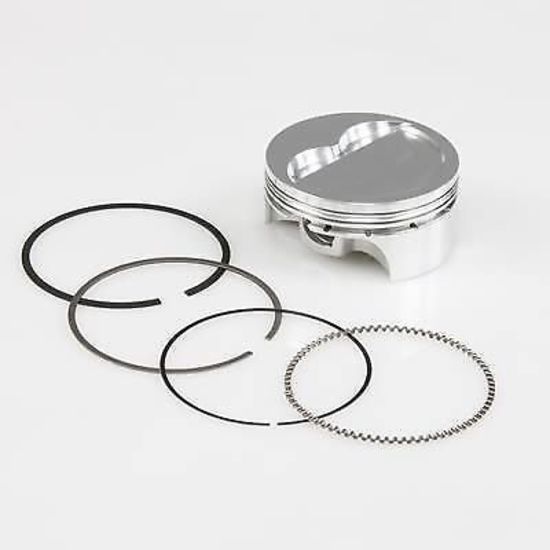

SRP Pistons SRP285749SRP Chev/Holden LS3 STD 4.065" Bore Forged Dish Top Piston & Ring Set P285749

SRP Pistons SRP285749SRP Chev/Holden LS3 STD 4.065" Bore Forged Dish Top Piston & Ring Set P285749

SRP285749SRP
$1,386.50 AUD
$1,386.50 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
SRP CHEV/HOLDEN LS3 STD 4.065" BORE FORGED DISH TOP PISTON & RING SET P285749SRPSRP professional pistons and rings include features used in professional racing, such as lightweight forged side relief (FSR) forgings, high-quality wrist pins, and precision CNC-machined ring grooves and skirts. In addition, every package includes JE Pro Seal premium piston rings. The included ring set features a 1.2 premium steel top ring, a 1.5mm Napier (hooked face) second ring, and a 3.0mm standard tension oil ring. Every SRP Professional piston is designed and manufactured in the USA at the advanced JE/SRP pistons manufacturing center.
Specs:Application: Chev / Holden LS3 6.2L (STD Bore). Bore (in): 4.065 in.
Bore (mm): 103.251 mm
Piston Style: Dish top, with two valve reliefs
Piston Material: Forged aluminum
Compression Distance (in): 1.330 in.
Piston Head Volume (cc): -11.5cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.945 in.
Connecting Rod: 6.098 in.
Stroke: 3.622"
Piston Rings Included: Yes
Top Ring Thickness: 1.2mm
Top Ring Material: Ductile iron
Top Ring Facing Material: Plasma-moly
Second Ring Thickness: 1.5mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 3.0mm
Oil Ring Material: Chrome plated carbon steel
Quantity: Sold as a kit.



Manufacturer Part Number:
