SRP Pistons SRP295444 Pro Flat Top Piston & Rings Chev 400 4.125 Bore 4"/3.480" Stroke

Item Description

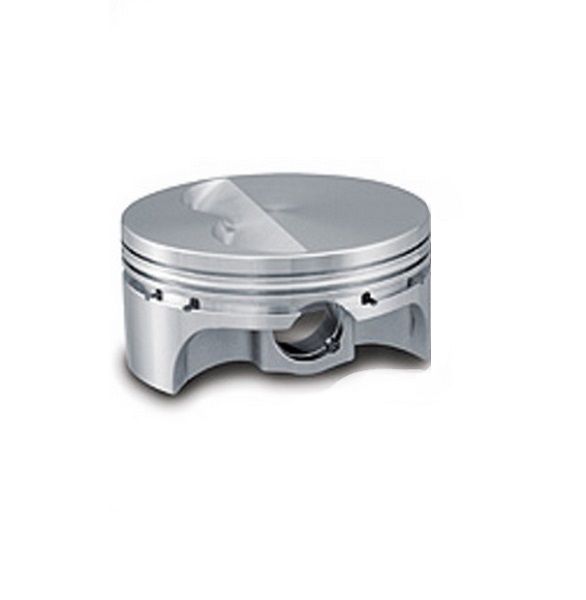

SRP PRO FLAT TOP FORGED PISTON & RINGS SRP295444 SUIT CHEV 400 V8 4.125" BORE 4.000"/3.480" STROKE
SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more. SRP Professional pistons include features used in professional racing such as lightweight forged side relief (FSR) forgings, high quality wrist pins, and CNC machined ring grooves and skirts. In addition, every package includes JE Pro Seal Premium Piston Rings. The included ring set features a 1.2 premium steel top ring, 1.5 Napier (hooked face) second ring and 3.0mmstandard tension oil ring. Every piston is designed and manufactured in the USA at the advanced JE/SRP piston manufacturing center.Specs:
Application: Chev Small Block 400ci V8.
Bore (in): 4.125 in.
Bore (mm): 104.775mm
Oversize: STD
Stroke (in.): 4.000 in. (434), 3.480 in. (377)
Rod Length (in.): 6.000 in. (434), 6.250 in. (377)
Piston Style: Flat Top
Piston Material: Forged aluminum
Compression Distance (in): 1.000 in.
Piston Head Volume (cc): -5.00cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.927 in.
Gapless: No
File Fi No
Top Ring Thickness: 1.2mm
Top Ring Material: Steel
Top Ring Facing Material: Steel
Second Ring Thickness: 1.5mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 3.0mm
Oil Ring Material: Chrome plated carbon steel
Oil Ring Tension: Standard
Quantity: Sold as a kit.





Manufacturer Information

  • Manufacturer: SRP Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
