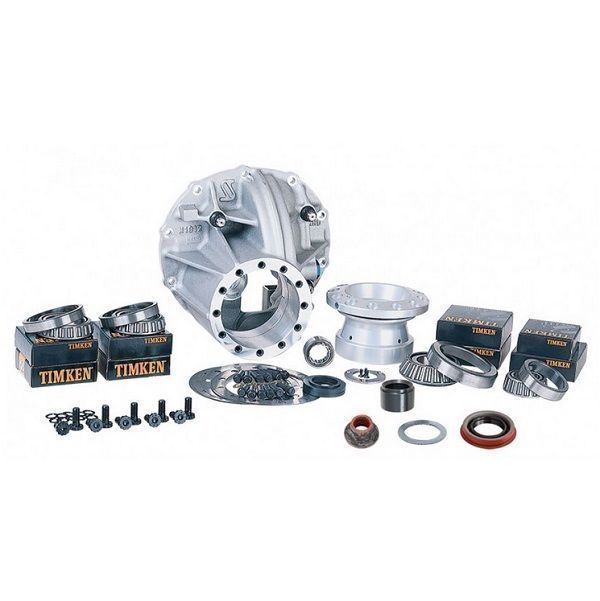

Strange STP3250ST Strange Ford 9" Ultra Case Kit 3.25" Bore Fits Small Stem 28 Sp Pinion

Strange STP3250ST Strange Ford 9" Ultra Case Kit 3.25" Bore Fits Small Stem 28 Sp Pinion

STP3250ST
$2,399.95 AUD
$2,399.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

STRANGE FORD 9" ULTRA CASE KIT 3.25" BORE FITS SMALL STEM 28 Sp PINION STP3250STThe heavy duty aluminum 9" Ultra Case is engineered to provide better lubrication to the pinion bearings and easily accept 9.00" or stronger 9.50" gear sets. The Ultra Case incorporates a uniquely designed pinion support that coalesces with the case to provide superior ring and pinion life. Four chrome-moly studs are encapsulated by billet caps, allowing for shorter and stronger studs. The tail bearing is larger than factory, which can withstand greater rpm speeds and is secured by a special retainer plate.Strange also offers a lightweight Ultra Case, featuring a taper/ball bearing pinion support. This unique 3.812" bore case incorporates a billet aluminum pinion support that has been pocket milled for reduced weight and embodies a low friction angular contact pinion ball bearing. The case and caps have been modified to further reduce static weight. The lightweight Ultra case/pinion support is 1.75 lbs. lighter than our standard Heavy duty Ultra Case/pinion support package. Both Ultra 9" Cases provide superior strength through encapsulated cap studs, a larger than stock tail bearing, 12 pinion support bolts and a unique casting design, which provides strength and optimises bearing lubrication. Strange offers the Ultra Case assemblies in three different bore sizes.
  • Strong enough to endure Pro-Mod, Alcohol & heavy door car applications
  • Extra long pinion support and substantially larger pinion bearings for improved pinion shaft support and increased ring & pinion life
  • Optional ball bearing pinion support available
  • Premium grade aluminum
  • Chrome-Moly and encapsulated studs
  • Accepts 9" & 9.50" gear sets
  • Enhanced lubrication
  • Extra wide tail bearing
  • Tail bearing retainer plate
  • Wide billet caps
  • Fully machined adjuster nuts
Specs:
Application: Ford 9" Small Stem 28 Spline Pinion
Case Style: Ford 9 in.
Case Material: Aluminum
Main Caps Included: Yes
Main Cap Material: Steel
Main Cap Retention Style: Stud
Carrier Bearing Diameter (in): 3.250 in.
Pinion Support Bolt Quantity: 12
Standard Pinion Location: No
Hardware Included: Yes
Ring Gear Load Bol No
Ring Gear Bolts: 20
Quantity: Sold individually.



Manufacturer Part Number:
