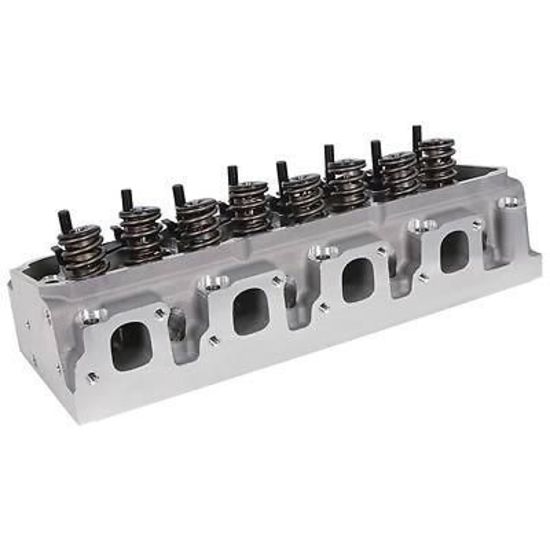

Trick Flow Specialties TFS-5161T005-C01 Trick Flow Powerport 225Cc Cyl Heads Alloy Complete Ford 351C



TRICK FLOW POWERPORT 225CC CYL HEADS ALLOY COMPLETE FORD 351C TFS-5161T005-C01

With its free-breathing, canted valve cylinder head design, Ford's 351 Cleveland was an engine that made big promises. The 2V version featured small-port cylinder heads optimized for low-speed torque. The 4V engines, however, had heads with huge intake ports that boosted top-end horsepower. What Ford did not do was make a version of the Cleveland that combined the torque of the 2V heads and the high-rpm rush of the 4V head design. But Trick Flow® engineers picked up where the factory left off. They took the best qualities of the factory head designs, added a healthy dose of hot rodder ingenuity, and created the PowerPort® Cleveland 225 cylinder heads. The heads feature intake and exhaust runners based on the OE Ford 2V design. The exhaust runners are raised 0.100 in. from the OE 2V location to improve the short turn radius, thus dramatically improving exhaust flow. The combustion chambers are fully CNC-profiled and bowl-blended to further maximize performance. The oil return system has been revised to improve oil drainback and includes provisions for mating with 351 Windsor blocks. The PowerPort® Cleveland 225 heads feature fully CNC-ported 225cc intake and 115cc exhaust runners, 60cc combustion chambers, and your choice of 1.460 in. or 1.530 in. valve springs. The PowerPort® Cleveland heads fit 351C, 351M, and 400 engines out of the box. With minor machining, the heads can be used with 302 and 351W blocks to create a "replica" Boss 302 or a 351 "Clevor" engine. The PowerPort® Cleveland heads come fully assembled with lightweight stainless steel 2.080 in./1.600 in. valves, ductile iron valve seats, chromoly retainers, machined valve locks, Viton® fluoroelastomer valve seals, 7/16 in. ARP rocker arm studs, and your choice of valve spring packages. Bare cylinder head castings are also available. Specs:Application: For Ford Small Block 351C, 351M/400 Cylinder Head Style:Assembled







.
