Wilwood Disc Brakes

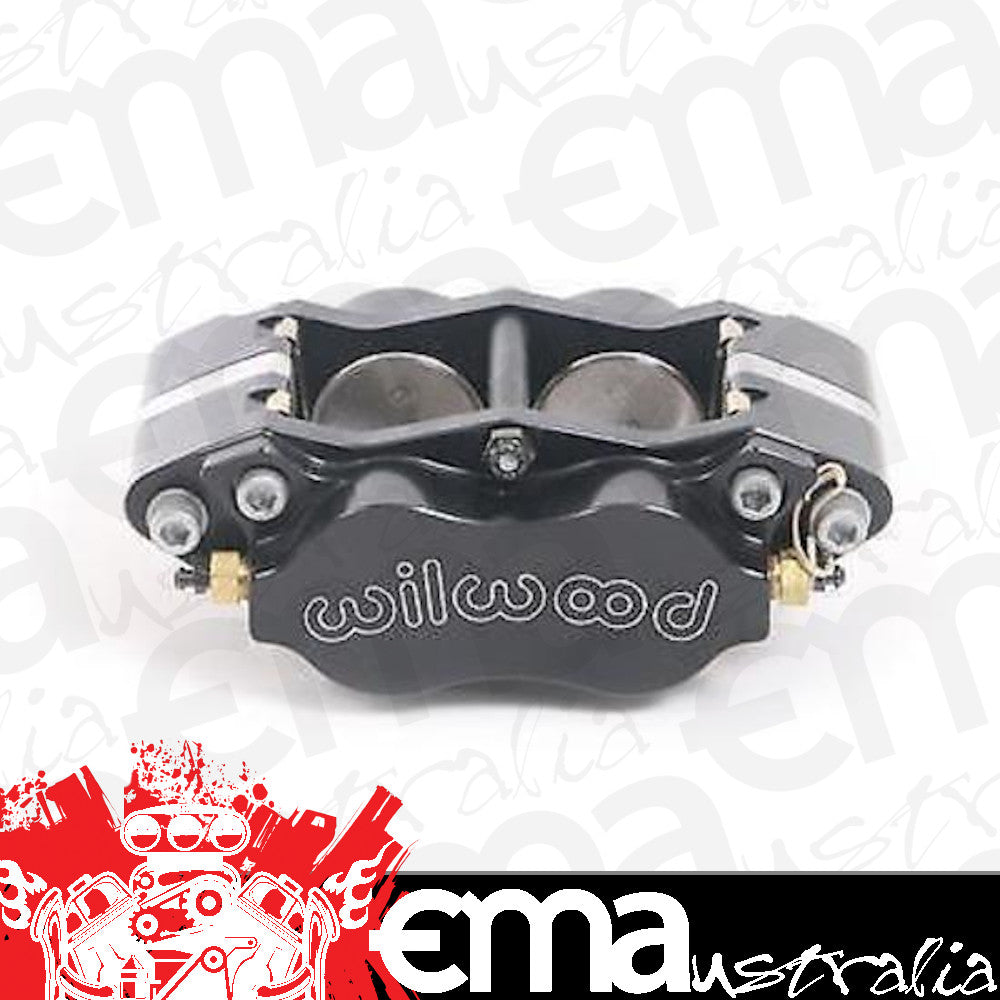

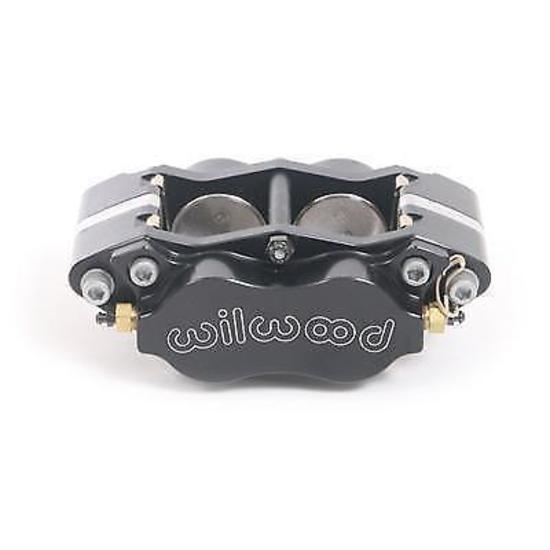

Wilwood 120-6454 Billet NDL Radial Mount 4 Spot Caliper 12.72" x .81" Rotor 1.75" Bore Size

Wilwood 120-6454 Billet NDL Radial Mount 4 Spot Caliper 12.72" x .81" Rotor 1.75" Bore Size

WIL120-6454
$448.30 AUD
$448.30 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
WILWOOD BILLET NDL RADIAL MOUNT 4 SPOT CALIPER 12.72"X.81" ROTOR WB 120-4954-SI

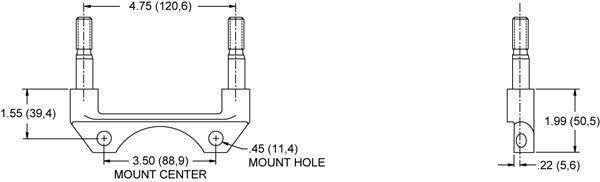

These Wilwood billet NDL radial mount calipers can be directly mounted over studs, or used with a radial mount bracket kit in place of a tab mount caliper. They feature a 1.75 in., 4-piston, stainless steel cup that provides a superior clamping force. The NDL calipers use four corner bleeds to accommodate mounting in all positions. All calipers are equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking.

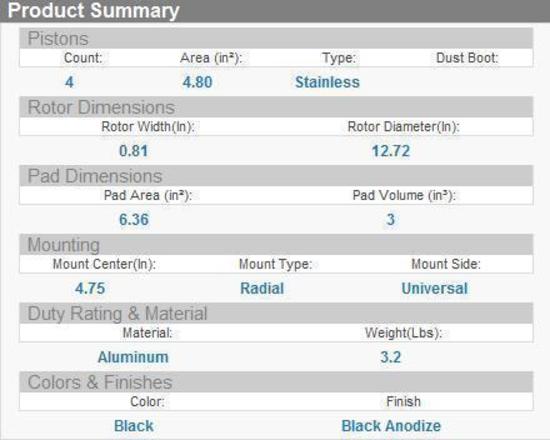

Specs:

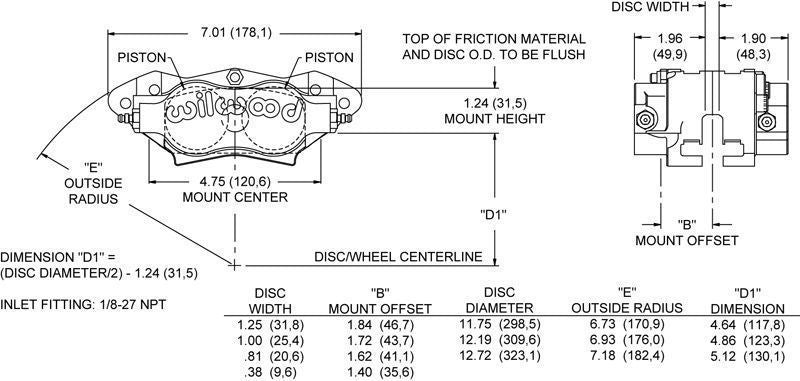

Caliper Series Billet NDL Radial Mount
Piston Diameter (in) 1.750 in.
Caliper Piston Quantity Four
Rotor Thickness (in) 0.810 in.
Caliper Material Aluminum
Caliper Finish Black anodized
Caliper Logo Wilwood
Parking Brake Provision No
Fittings Included No
Brake Pads Included No
Brackets Included No
Quantity Sold individually.
Notes: Please check additional photo's provided carefully to ensure dimensions of this item will be suitable for your application. We are currently low on stock, please email before purchase.



Manufacturer Part Number:
