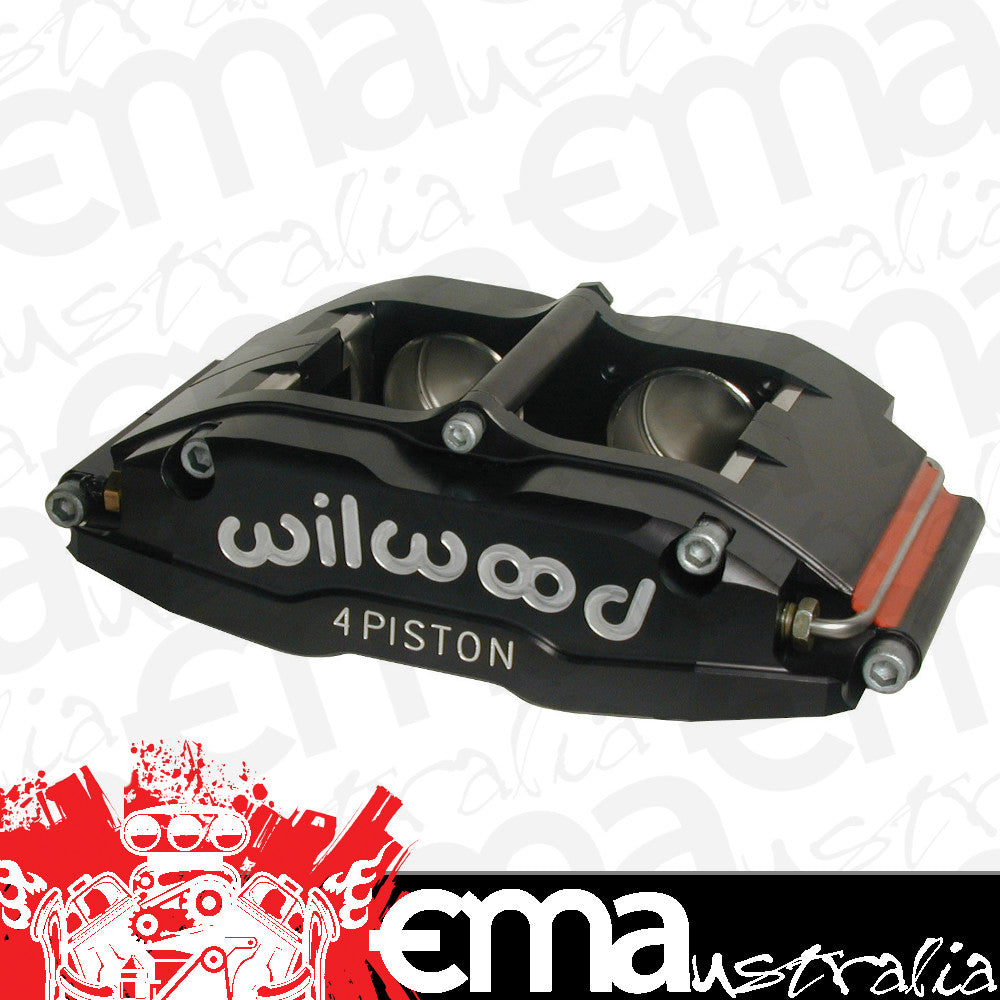

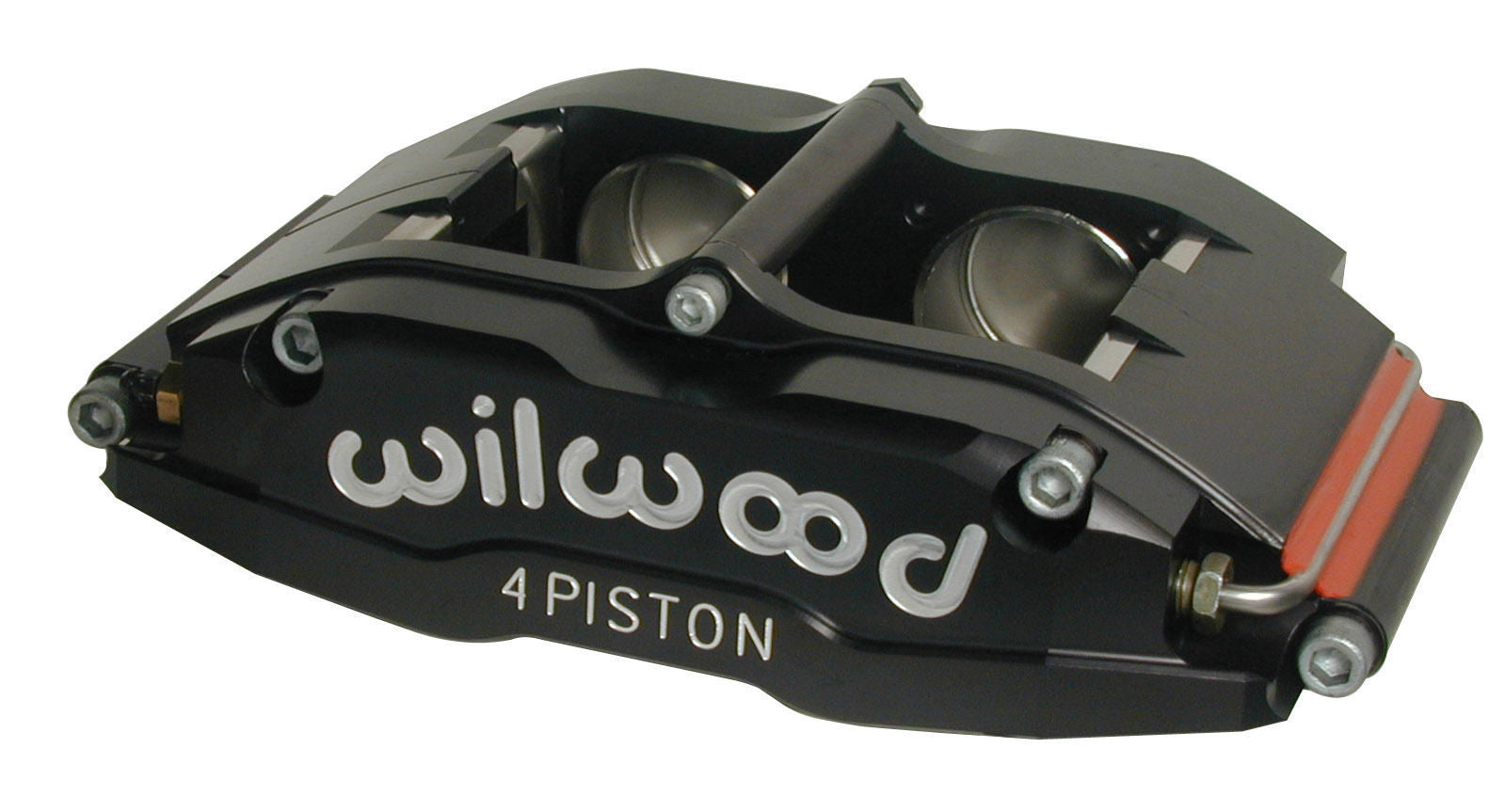

Wilwood 120-7568-FS Superlite 4 Spot Caliper Front Mount 13 x 1.25" Rotor RH

1 6

Wilwood Disc Brakes

WIL120-7568-FS
$446.70 AUD
$446.70 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Wilwood 120-7568-FS Superlite 4 Spot Caliper Front Mount 13 x 1.25" Rotor RH

Item Description

WILWOOD SUPERLITE 4 SPOT CALIPER FRONT MOUNT 13X1.25" ROTOR R/H WB 120-7568-FS
These Wilwood Billet Superlite 4 calipers feature FEA modeling and stress analysis technology. They also feature a reinforced radial transition between the piston housing body and the solid bridge. That is combined with a full body-length reinforcement rib to give them the highest resistance to deflection and separation under load. Four high-strength steel bridge bolts and a fifth center bridge bolt further add to their superior clamping efficiency, while providing easy access to the brake pads. Superlite 4 calipers are available with stainless steel or Thermolock pistons and equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking.

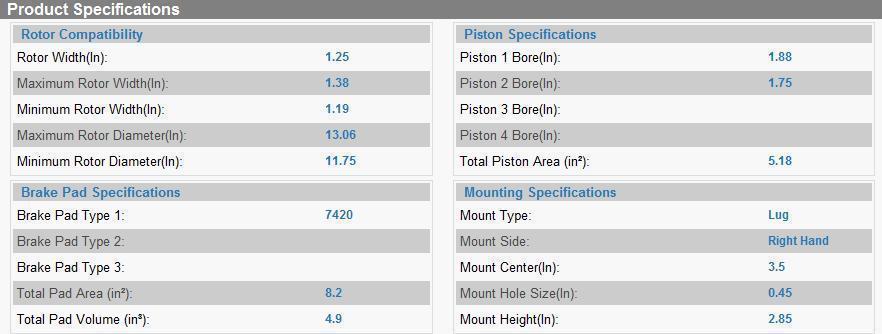

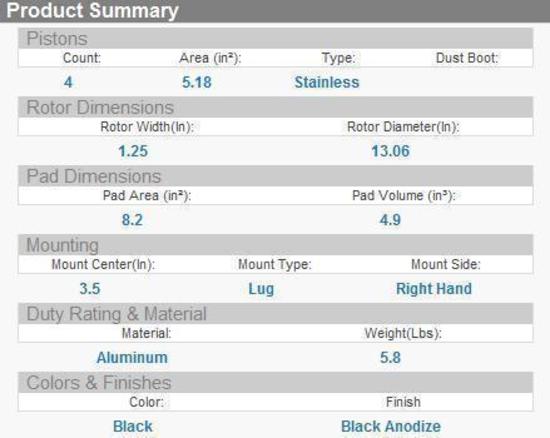

Specs:
Application: Front side Mount Driver side (RHS)
Caliper Series Billet Superlite 4
Piston Diameter (in) 1.880 in.
Caliper Piston Quantity Four
Rotor Thickness (in) 1.250 in.
Caliper Material Aluminum
Caliper Finish Black anodized
Caliper Logo Wilwood
Parking Brake Provision No
Fittings Included No
Brake Pads Included No
Brackets Included No
Quantity Sold individually.
Notes Fits front mount calipers only. Second piston has a diameter of 1.750 in. Stainless steel pistons.
Notes: Please check additional photo's provided carefully to ensure dimensions of this item will be suitable for your application. We are low on stock, please email before purchase.



Manufacturer Information

  • Manufacturer: Wilwood Disc Brakes
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
