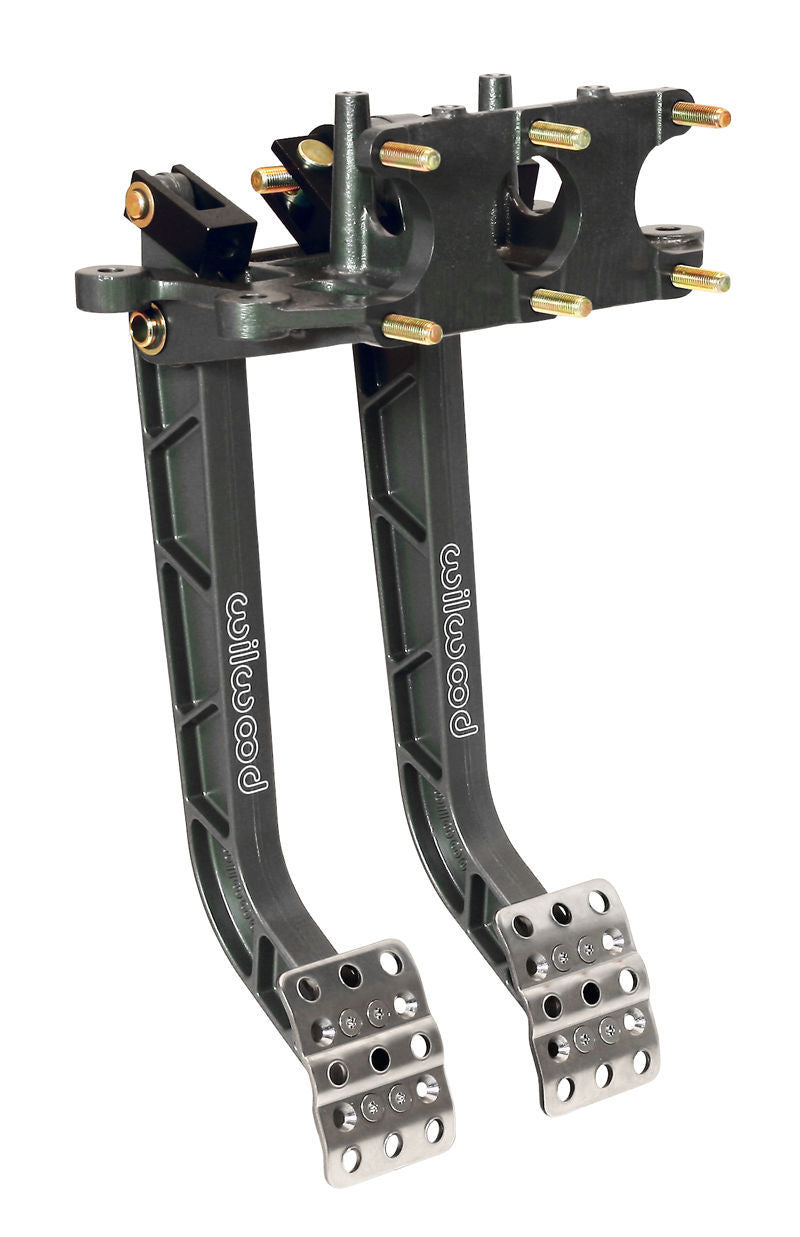

WILWOOD REVERSE SWING MOUNT BRAKE & CLUTCH PEDAL ASSEMBLY TRIPLE MC WB340-11299

WILWOOD REVERSE SWING MOUNT BRAKE & CLUTCH PEDAL ASSEMBLY TRIPLE MC WB340-11299

WIL340-11299
$476.85 AUD
$476.85 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

WILWOOD REVERSE SWING MOUNT BRAKE & CLUTCH PEDAL ASSEMBLY TRIPLE MC WB340-11299
Wilwood's new Adjustable Reverse Mount Pedal assembly combines the brake and clutch pedals together in one unit and positions the master cylinders inside the firewall, away from engine heat. It features all aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads are of special adjustable design that allows fine-tuning of the pedal location and clearance. Also included with the assembly: mounting studs, hardware, new clevis and pivot pin balance bar assembly to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. With a 6.25 to 1 pedal ratio on both clutch and brake pedals.
Specs:
Pedal Type Brake/Clutch
Pedal Mounting Location Reverse mount
Pedal Ratio 6.25:1
Throttle Cable Included No
Balance Bar Included Yes
Master Cylinder Included No
Pedal Material Aluminum
Pedal Finish Black
Pedal Pad Material Aluminum
Pedal Pad Finish Natural
Quantity Sold as a kit.
Notes Floor mount brake pedal for dual master cylinders (not included) with balance bar.
Items are shipped within one to two business days after full payment has been recieved.




.



Manufacturer Part Number:
