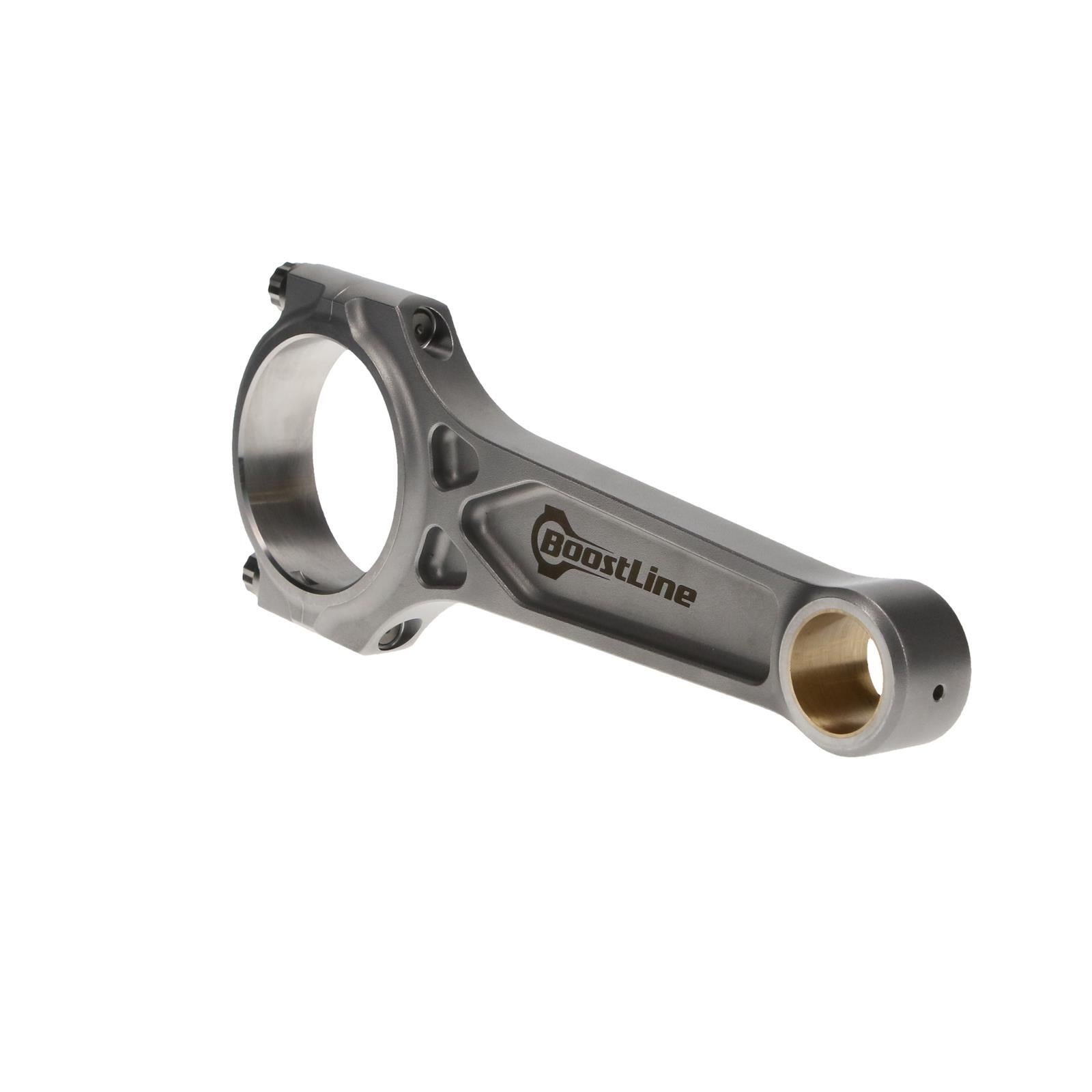

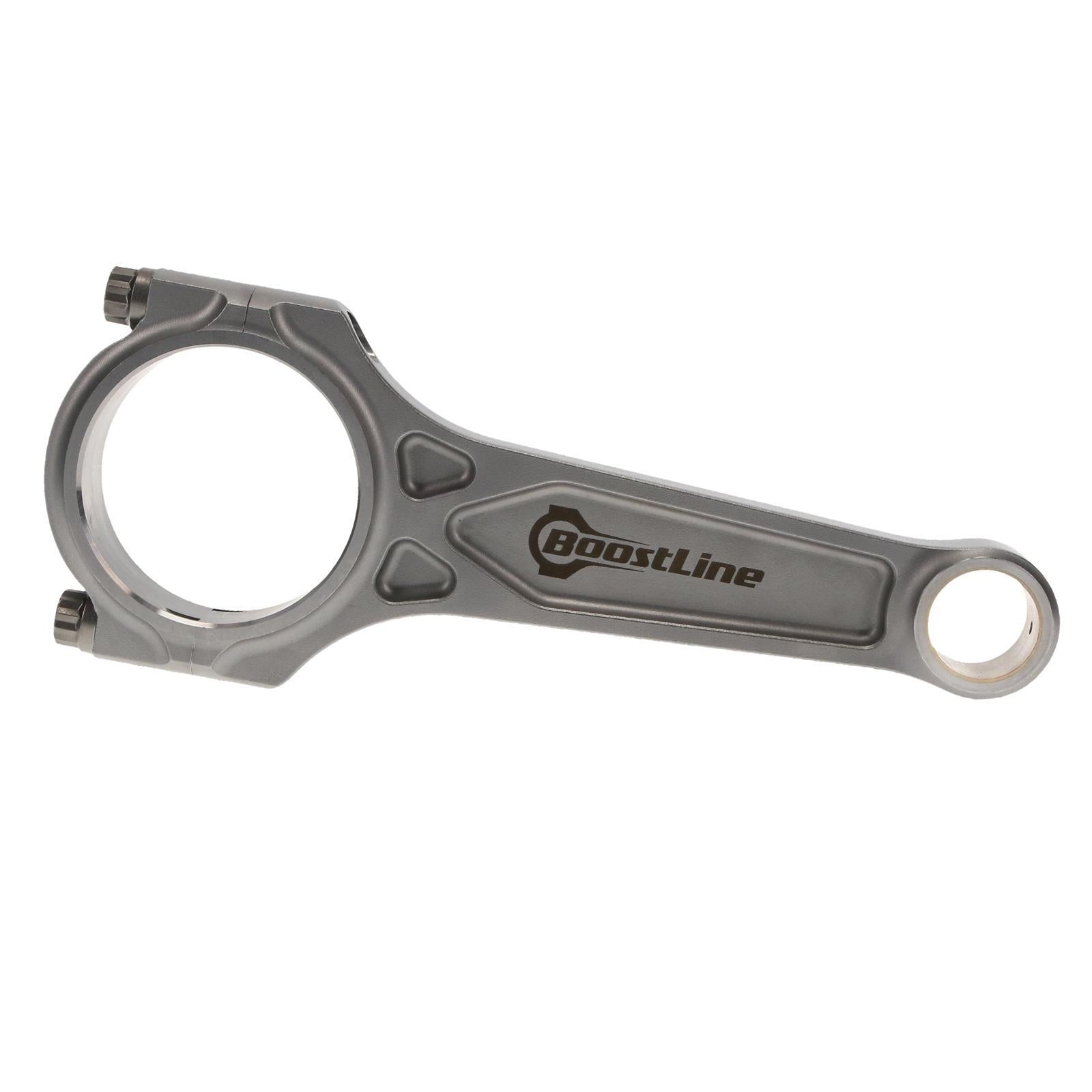

Wiseco WIS-LS6125-927 Chev LS Engines/Gen V LT Boostline Connecting Rods Forged 3-Pocket Beam

Item Description

Wiseco Boostline connecting rods are designed specifically for demanding turbocharged, supercharged, and big nitrous applications.

The patented, 3-pocket body forged from premium 4340 steel incorporates the best features of both the H-beam (mass/weight) and I-beam (strength) designs. This provides 60 percent more bending strength compared to common H-beam rods. Each piece is heat-treated, shot-peened, and fitted with ARP-2000 cap screws (strong, malleable, and 220,000 psi rating) before final finish machining. Keep things straight with a set of Wiseco Boostline connecting rods (also available individually). Order the model recommended for your specific engine size.

Features, items, and specs:

* High-quality Ampco bushing material used in the small end
* Pin clearance at between 9-ten-thousandths and 11-thousandths of an inch (allows engine builder to custom set wrist pin spec, should additional clearance be necessary)
* All BoostLine rods are individually inspected via a coordinate measuring machine (CMM) that is used to custom-match sets of rods to incredibly tight tolerances
* Each rod includes an inspection report from the Wiseco Piston quality team
* Rods are completely separated by thick foam for protection from shipping damage
* Each rod is vacuum-wrapped in plastic for corrosion protection
* Upgraded ARP 625+ bolts (260,000 to 280,000 psi) available

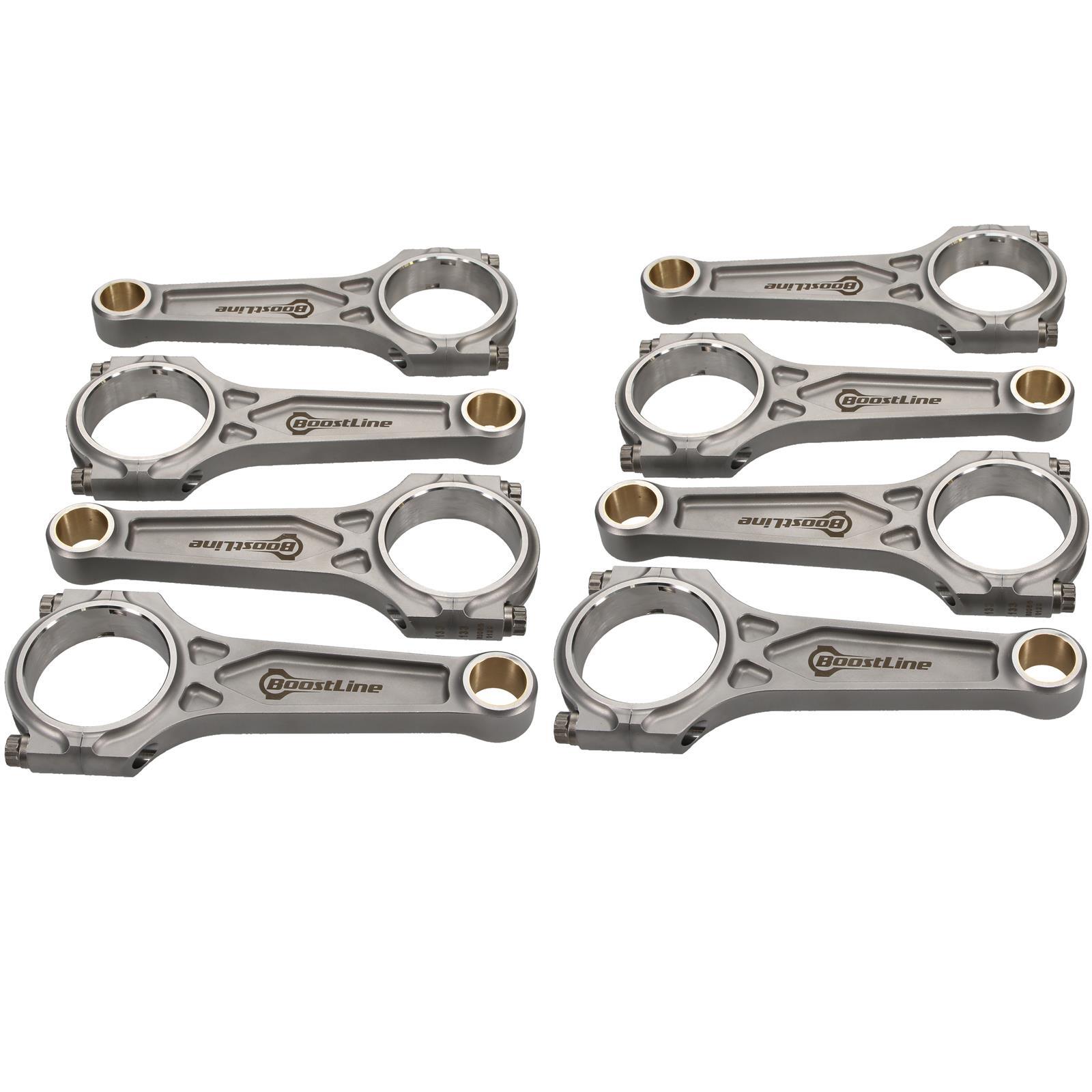

  • Quantity: Sold as a set of 8.
  • Connecting Rod Length Center to Center (in.): 6.125 in.
  • Connecting Rod Beam Style: I-beam
  • Connecting Rod Material: Forged 4340 steel
  • Connecting Rod Finish: Shot-peened
  • Wrist Pin Style: Press-fit or floating
  • Rod Journal Diameter (in.): 2.100 in.
  • Big End Bore Diameter (in.): 2.2250 in.
  • Big End Width (in.): 0.940 in.
  • Pin End Bore Diameter: 0.927 in.
  • Pin End Width (in.): 1.010 in.
  • Clearanced for Stroker: No
  • Cap Retention Style: Cap screw
  • Connecting Rod Bolt Brand: ARP
  • Connecting Rod Bolt Diameter: 7/16 in.
  • Connecting Rod Bolt Material: ARP2000 alloy
  • Fastener Tensile Strength (psi): 220,000 psi
  • Connecting Rod Bolt Head Style: 12-point
  • Approximate Connecting Rod Weight (g): 692
  • Advertised Horsepower Rating: 2,000 hp
  • Weight Matched Set: Yes
  • Remanufactured: No
  • Magnafluxed: No

Manufacturer Information

  • Manufacturer: Wiseco
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
