- Manufacturer
- COMP Cams
- MPN
- Not provided
- UPC
- 036584070566
- Our Part Number
- CO20-230-4

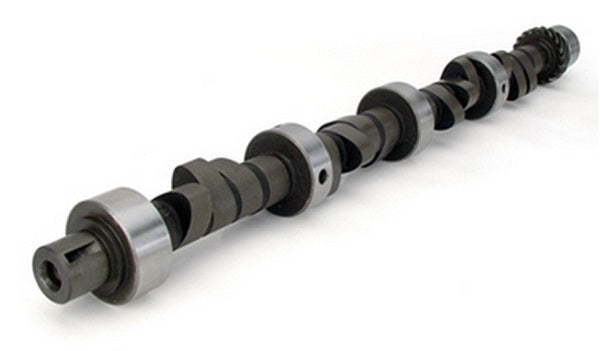

Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Solid Flat Tappet
Grind Number: XS274S
Basic Operating RPM Range: 2,200-6,200
Intake Duration at .050 Inch Lift: 236
Exhaust Duration at .050 inch Lift: 242
Advertised Intake Duration: 274
Advertised Exhaust Duration: 280
Lobe Separation: 110
Intake Valve Lift: 0.502
Exhaust Valve Lift: 0.511
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Cam and Lifter Kit Upgrade: CL20-230-4
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
K-Kit Upgrade: K20-230-4
Lifter Type: Solid Flat Tappet
Amazon ASIN: B000P5952O
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
10602: XS274S
Valve lash Inlet .016", Exh .018"
Rpm operating range 2200 - 6200
Duration advertised Inlet 274°, Exh 280°
Duration advertised @ .050" Inlet 236°, Exh 242°
Valve lift with 1.5 rocker Inlet .502", Exh 511"
Lobe separation angle 110°
