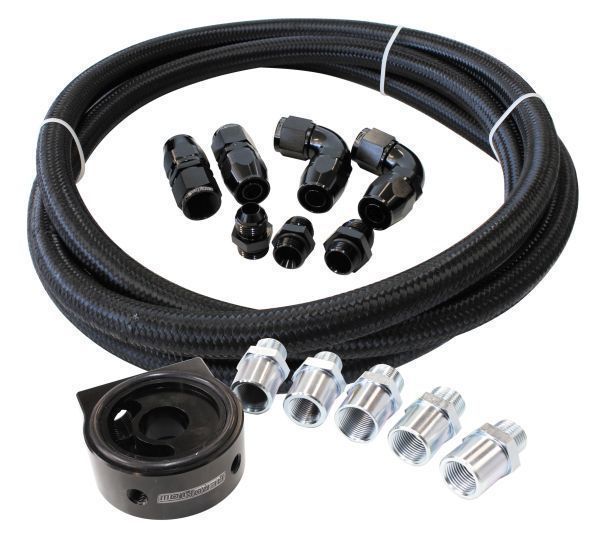

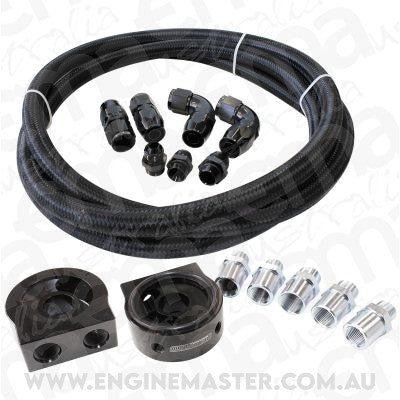

Aeroflow AF30-4000 Universalersal Oil Cooler Line Kit 3/4-" 13/16" M18 M20 & M22

The Aeroflow Universal Oil Cooler adapter and line kit has been designed for the ultimate in high performance and reliability with the ease and convenience of having to purchase just one kit. All youneed to do is purchase the appropriately sized oil coolerfor the application. It features the Aeroflowbillet oil cooler and sender adapter (AF64-2108) which is designed to sit in-between thestandard oil filter and the vehicle engine block. This adapter allows an adaptation of a gauge sender or sensors to be installed at the engine.In most cases the factory OE oil filter will work with thissandwich adaptor. It is designed as a universal fitment item and may or may not fit your application. The main body is made from billet 6061 aluminium, then anodised blackfor great looks and corrosion resistance. This features two labelled inlet and outlet -8ANORB ports provided for plumbing the engine oil to andfrom the sandwich adapter. Two1/8"quot; NPT ports and plugs are provided for auxiliary sensors. The oil filter landing will take oil filter O-ring sizes from inner diameter of 65mm (2-9/16") to outer diameter 71mm (2-13/16").In some applications when fitting this sandwich adaptor,it may interfere with the frame or exhaust systems and anew shorter depth filter may need to be used for ground clearance. This kitincludes the following thread inserts that fit most makes and models (Holden, Ford, Nissan, Toyota, Subaru, Honda & BMW) that are the same thread on both male and femalesides: 3/4"16 threadinsert 13/16"-16 thread insert M18 x 1.5mmthread insert M20 x 1.5mmthread insert M22 x 1.5mmthread insert When it comes to plumbing your oil cooler this kit provides a universal solution. You may ormay not have to purchase different angles or adapter fittings to suit your application. This Kit includes: 1x Billet sandwich adapter (AF64-2108) 1x 3/4�-16 thread insert (AF59-2108-34) 1x 13/16�-16 thread insert (AF59-2108-1316) 1x M18 x1.5mm thread insert (AF59-2108-M18) 1x M20 x 1.5mm thread insert (AF59-2108-M20) 1x M22 x 1.5mm thread insert (AF59-2108-M22) 2x 1/8� NPT port plugs (AF932-02BLK) 2x -10AN O-ring to -10ANadaptors (AF920-10BLK) 2x-8AN O-ring to -10AN adapters (AF920-10-08BLK) 2x 550 series straight -10AN black fittings (AF501-10BLK) 2x550 series 90® -10AN blackfittings (AF553-10BLK) 1x3 meters 450 series black light weight hose (AF450-10-3M)
