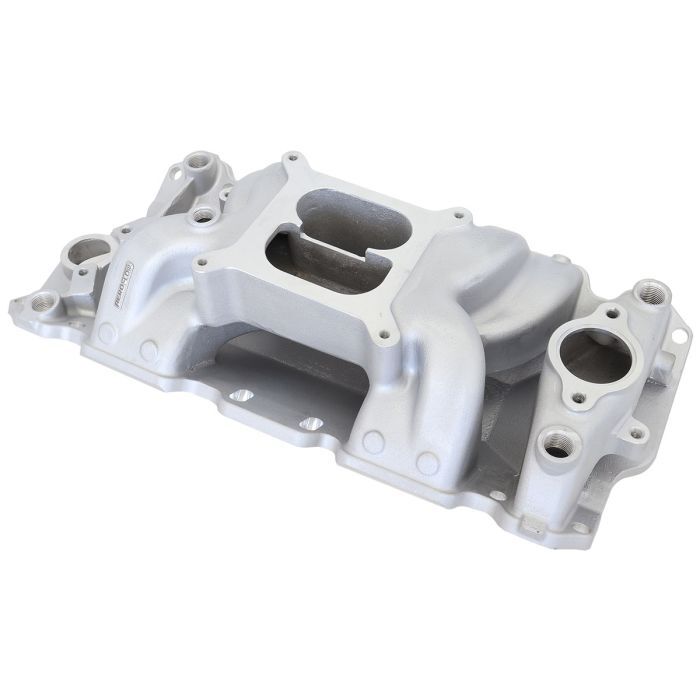

Aeroflow AF6010-1001 SB Chev Air Gap Dual Plane Intake Manifold, Natural Cast Finish 1500 - 6500 RPM, Square Bore Carburettor Pad, Non-EGR

Aeroflow AF6010-1001 SB Chev Air Gap Dual Plane Intake Manifold, Natural Cast Finish 1500 - 6500 RPM, Square Bore Carburettor Pad, Non-EGR

AF6010-1001
$589.90 AUD
$589.90 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Get the maximum power from your carburetted engine with this Air Gap Small Block Chevy carburetted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket square-bore carburettors with either manual or electric choke options available on today's market. Specifically designed for 262-400 cubic inch small-block Chevy engines operating in the 1500 to 6500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems.

• Fits Small Block Chevy 262-400 Cubic Inch Engines.

• Dual Plane Configuration.

• RPM operating range - 1500 to 6500.

• Natural Cast Finish.



Manifold Specifications

  • - Square bore carburettor pad
  • - Overall height (Carb pad to bottom of manifold) is 115mm (Ensure to Check Bonnet Clearance)
  • - Port Size: 1.15" x 1.95"
  • - Intake manifold gasket, Fel Pro 1206
  • - 5/16-18" carburettor studs (x4)
  • - 5/16-18" mounting holes (x2)
  • - 3/8-16" distributor hold down mounting hole (x2)
  • - 1/2" NPT ports (x5)


Manufacturer Part Number:
