Aeroflow Performance Products AF64-4050 Aeroflow Billet Triple Pump Hanger Weld Use 49-1013 Pumps

Billet Triple Pump Hanger Weld Use 49-1013 Pumps

1 3
Aeroflow Performance
Aeroflow Performance Part No. AF64-4050
$560.95 AUD
$560.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

AF64-4050

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

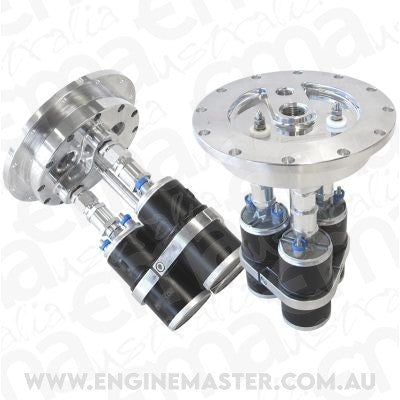

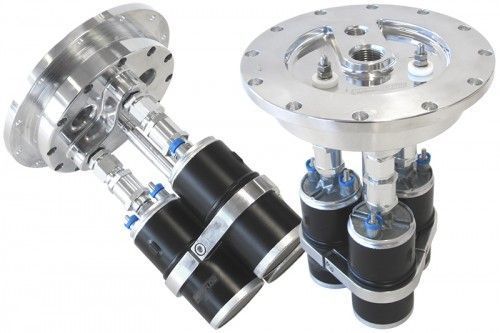

Deliver more fuel to your high powered car with Aeroflows Triple Pump Hanger kit. Aeroflows triple pump hanger kit CNC machined from billet 6061-T6aluminium with a black anodized option for maximum durability and corrosion protection against E85/Methanol.The 3 piece head incorporates a weld-on for custom tanks. The bung and "O" ring provide a positive sealfor the internal fuel log wich has a -12 feed for large flow applications with a -8 return. They have 3 x -8 internal feeds along with the check valves and male to female joiners which remove the need for intank hose and clamps. Aeroflow have designed the hanger to mount 2 or 3 intank pumps

Product Information

Deliver more fuel to your high powered car with Aeroflows Triple Pump Hanger kit. Aeroflows triple pump hanger kit CNC machined from billet 6061-T6aluminium with a black anodized option for maximum durability and corrosion protection against E85/Methanol.The 3 piece head incorporates a weld-on for custom tanks. The bung and "O" ring provide a positive sealfor the internal fuel log wich has a -12 feed for large flow applications with a -8 return. They have 3 x -8 internal feeds along with the check valves and male to female joiners which remove the need for intank hose and clamps. Aeroflow have designed the hanger to mount 2 or 3 intank pumps

Technical Information

Features
Suits a 205mm or 8" diameter output
For use with 250mm or 10" deep tanks
Twin or triple E85 compatible Aeroflow pumps (AF49-1013) or Bosch in tank pumps
Built-in fuel manifold chamber for better pressure equalization and no external couplers
12 feed for maximum flow and -8 return
Pump wiring kit
Specifications
Manufacturer
Aeroflow Performance Products
MPN
Not provided
UPC
9.33721E+12
Our Part Number
AF64-4050
Fuel Pump Hanger:
Style: In-tank
Fuel Pump:
Hanger
Material: Billet Aluminium
Fuel Pump Hanger:
Finish: Polished
Quantity: Sold individually
Note: Fuel pumps not included
