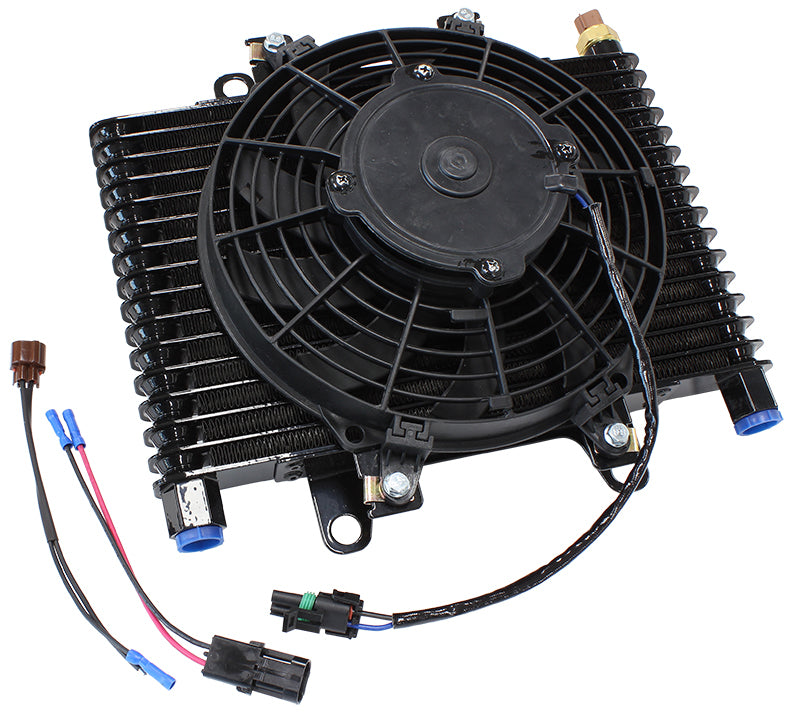

Aeroflow AF72-6001 13.5 x 9" Comp Trans Cooler with 120W Fan & Switch -10ORB

Item Description

Aeroflow's engine and transmission competition oil coolers are a fin and plate design which provides more surface area for optimal cooling of any fluid in all applications. Each cooler is fitted with high quality 12-volt 9” electric fan which flows up to 500CFM with only a 6 AMP draw for maximum cooling efficiency. The M18 x 1.50mm thermal switch located on the top of each cooler activates this electric fan via a relay at 175°F/79.5°C. The cooler features built-in attachment points and rubber mounts are sold separately (AF72-4001), making mounting the cooler assembly a breeze. The cooler accepts engine oil, transmission and power steering applications and has been pressure tested to over 200psi. Available with either 1/2” NPT or -10 ORB female fittings for a perfect O-ring seal. Each cooler comes with thermostat wiring and electric fan wiring. The dimensions are 13-1/2”(342mm) x 9”(228mm).

Dimensions:
Overall Length:342mm (13.5")
Overall Height: 228mm Thickness: 32mm
Fan Thickness: 67mm
Centre to Centre of Mounting Holes: 153mm
Centre to Centre of Oil Cooler -10ORB Ports: 305mm
Centre to Centre of Fan Mounts: 113mm

- M18x 1.50mm Thermal Switch.
- Turns electric fan on at 79.5°C (175°F) Reversible Electric Fan
-Flows 500 CFM
- Draws 6 Amps

(11.5")
Oil Cooler
- 11.5" (292mm)

Manufacturer Information

  • Manufacturer: Aeroflow Performance Products
  • Manufacturer Part Number: AF72-6001
  • UPC: 9337206102223
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
