Nissan Rb26/30 Gt40 Vband MANi
SKU:AF8227-5100
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information

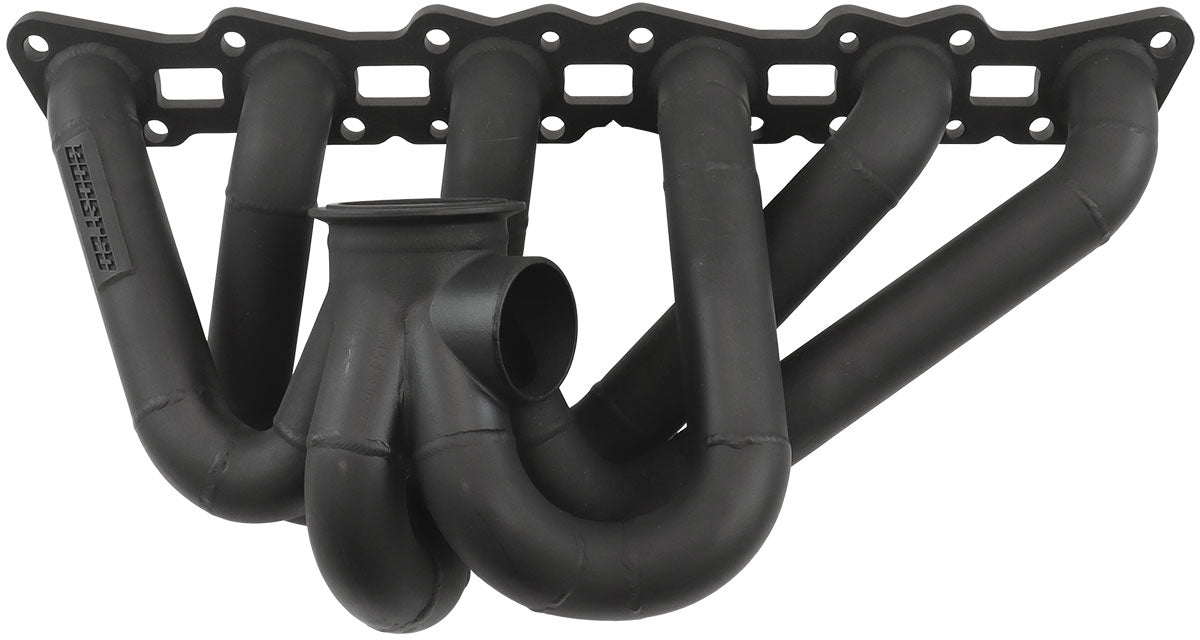

Model - Nissan RB30 engine block with RB26 Cylinder Head turbo steampipe manifold.
Turbo Collector Flange - V-Band (AF8080-1019).
Mounting Location - High Mount Forward.
Turbocharger Style - GT40/GT42 style (Boosted 6270 to Boosted 8082 in T4 flange).
Wastegate Flange - Single 50mm external wastegate.
Aeroflow Performance steampipe turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channeled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge together at a point in the middle, pointing straight into the turbine. No pipes enter across each other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.
Aeroflow turbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent steam pipe with CNC Machined header and turbo flanges. Each flange is milled after welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, and the position the wastegate sits in.
Each manifold is finished in a black finish ceramic coat providing protection for external accessories and reduce under bonnet temperatures.
The Aeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
---------Boosted Nissan RB30 with RB26 Cylinder Head V-Band Turbo ManifoldSuits High Mount GT40-GT45 Turbo, with 50mm External Wastegate Flange
Product Information
Model - Nissan RB30 engine block with RB26 Cylinder Head turbo steampipe manifold.
Turbo Collector Flange - V-Band (AF8080-1019).
Mounting Location - High Mount Forward.
Turbocharger Style - GT40/GT42 style (Boosted 6270 to Boosted 8082 in T4 flange).
Wastegate Flange - Single 50mm external wastegate.
Aeroflow Performance steampipe turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channeled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge together at a point in the middle, pointing straight into the turbine. No pipes enter across each other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.
Aeroflow turbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent steam pipe with CNC Machined header and turbo flanges. Each flange is milled after welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, and the position the wastegate sits in.
Each manifold is finished in a black finish ceramic coat providing protection for external accessories and reduce under bonnet temperatures.
The Aeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
---------Boosted Nissan RB30 with RB26 Cylinder Head V-Band Turbo ManifoldSuits High Mount GT40-GT45 Turbo, with 50mm External Wastegate Flange
