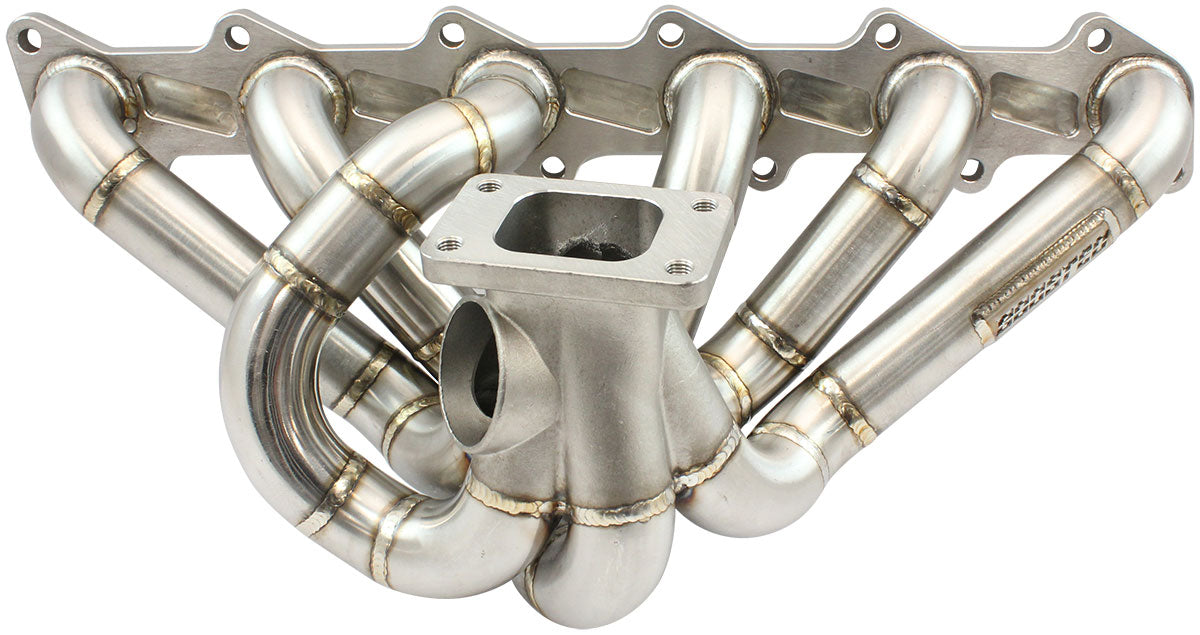

Aeroflow AF8447-3000 Ford Barra Ss T3 Turbo MANifol

Model - Ford Falcon XR6 BA, BF, FG with Turbo Barra Engine turbo thick wall stainless steel manifold.
Turbo Collector Flange - T3 single entry.
Mounting Location - High Mount.
Turbocharger Style - GT30/GT35 style (Boosted 4849 up to Boosted 6862 in T3 flange).
Wastegate Flange - Single 50mm external wastegate.

Aeroflow Performance thick wall stainless steel turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channeled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge together at a point in the middle, pointing straight into the turbine. No pipes enter across each other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.

Aeroflow turbo manifolds are finished to the highest of standards, constructed from thick wall stainless steel pipe with CNC Machined header and turbo flanges. Each flange is milled after welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, and the position the wastegate sits in.

The Aeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.

---------Boosted Ford Barra T3 Turbo Stainless Steel Manifold
Suits High Mount GT30-GT35 Turbo, with 50mm External Wastegate Flange
