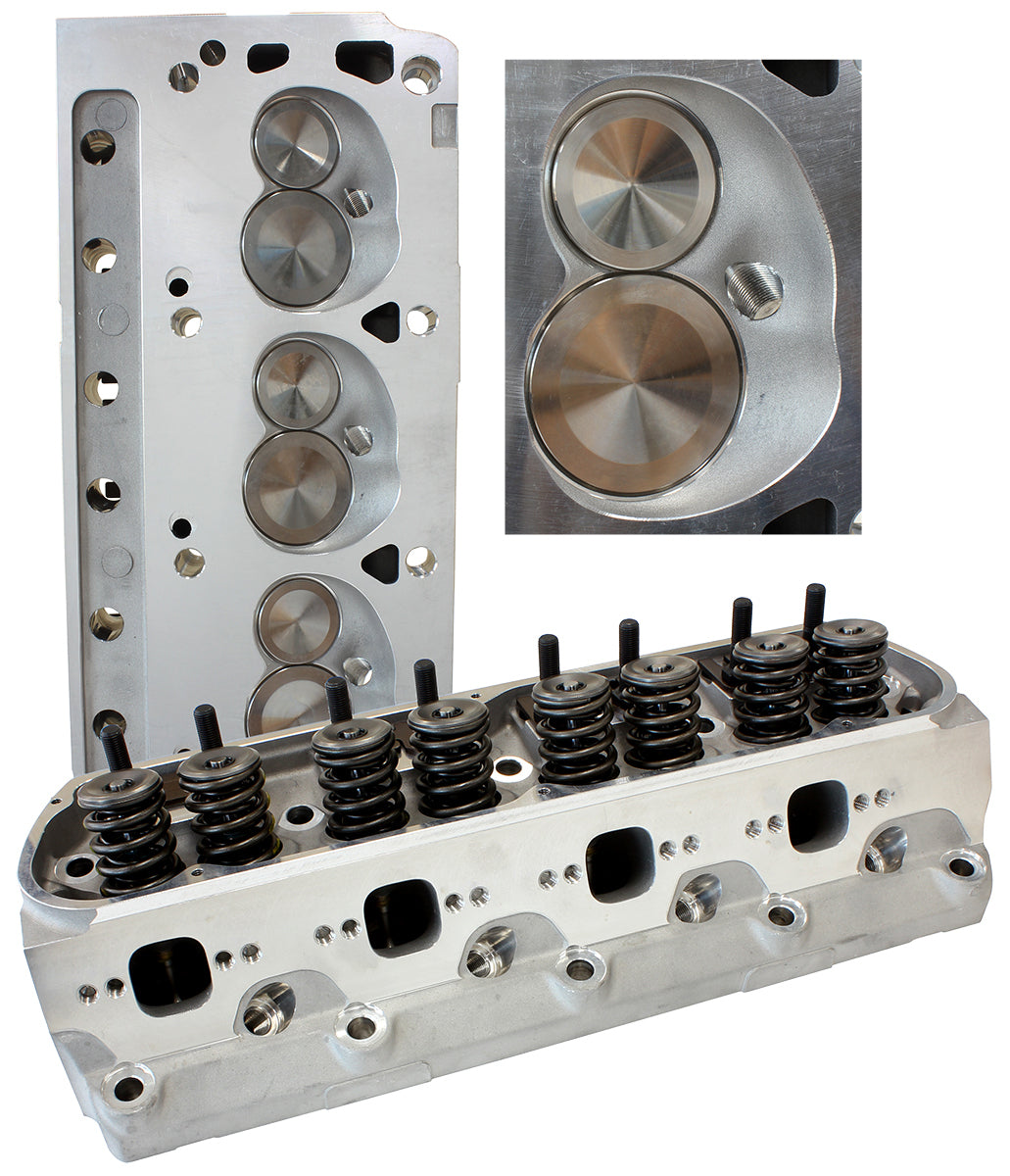

SBF 185CC Aluminium Heads Asseassemb. Alloy Cylinder Heads
SKU:AF95-2347
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
Aeroflow's Small block Ford Windsor cylinder heads are designed for street/race performance engines and ideal for operating in the idle to 6500 rpm range. Made from A356 aluminium castings. These complete heads include larger-than-stock 1.32" (33.5 mm) diameter dual valve spring to handle up to 0.600" (15.25mm) maximum valve lift. Recommended spark plugs are 14mm x 3/4" reach with flat gasket seat. Includes valves, valve , retainers & locks, guide plates and 7/16" rocker studs.
Head Specs:Chamber Volume: 58cc Chamber
Intake port volume: 185cc
Intake valve size: 2.02"
Exhaust valve size: 1.60"
Valve spring diameter: 1.320" (33.5mm)
Spring installed height: 1.86" @ 111lbs
Maximum valve lift: 0.600" (15.25mm) @ 306lbs
Rocker stud diameter: 7/16"
Pushrod diameter: 5/16" (width of slot in guide plate)
Spark plug style: Angled
Flow Chart cfm @ H2O
| .200" | .300" | .400" | .500" | .600" | |
| 2.020 Intake | 141.2 | 187 | 232.6 | 260.5 | 272 |
| 1.600 Exhaust | 103 | 135.3 | 157 | 166 | 177 |
