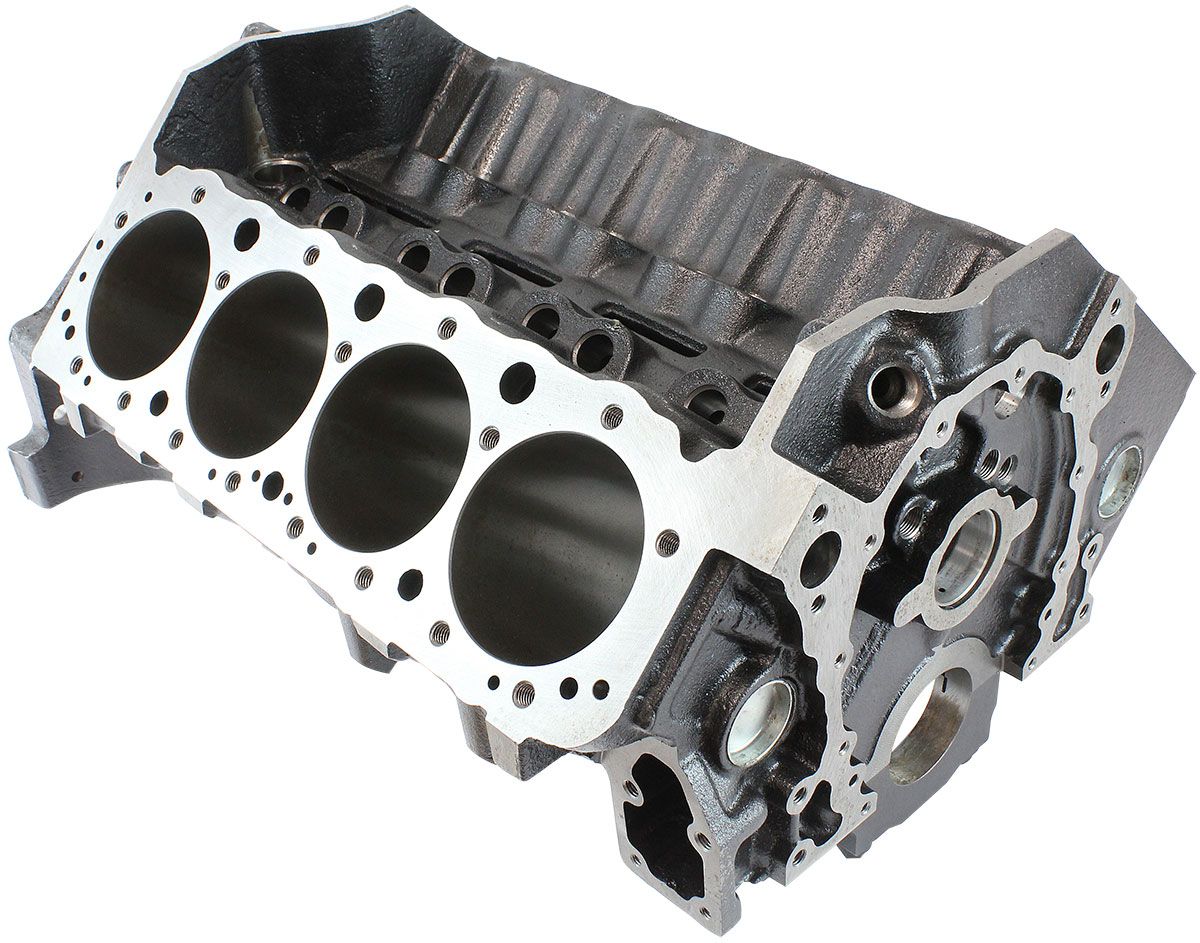

Aeroflow AF96-1000 Chev SB Bare Engine Block 4.000" Bore 9.02 Deck Main Bear 350

Aeroflow AF96-1000 SBC Bare Engine Block 4.000" Bore 9.02 Deck Main Bear 350

Aeroflow Performance engine blocks are the ideal starting point for any street performance build that demands quality and precision at a reasonable price. Why start your engine build with a worn-out production block from decades ago that needs hours of machine work. When you can start with a new heavy-duty cast iron engine block that is a semi-finished bare engine block that requires very little machining to match your internal components. These brand-new aftermarket engine blocks are cast from premium high-strength Class 32B iron. It features Siamese cylinder bores and splayed billet steel four-bolt main caps with priority main oiling system which direct oil straight to the main bearings. The extra thick standard deck height ensures a reliable head gasket seal as well as allowing the use of off the shelf standard components such as camshaft, timing chain, oil pump/pan and oil filter etc. You can rest assured that these Aeroflow engine blocks have a great foundation for your next engine build.

Specifications:

• Cylinder Bore Diameter: 4.000"
• Max Bore & Stroke: 4.185" x 4.000"
• Cam Journal OD: STD, 1.869"
• Cam Plug: 2.375" Press In Cup
• Cam Location: STD
• Cylinder Wall Thickness: .275". min @ 4.185" Bore
• Deck Height: 9.025"
• Deck Thickness: .675" Min
• Fuel Pump: STD Mechanical Provision
• Fuel Pump Pushrod: STD
• Freeze Plugs: 10 x 1-5/8" Press In Cup
• Lifter Bores: .842"
• Main Bearing Size: 2.450" (350)
• Main Bearing Bore: 2.649" (350)
• Main Cap Bolts: 7/16" & 3/8" on Caps 1 & 5, 7/16" Splayed on Caps 2, 3 & 4
• Main Caps: Billet Steel, 3 Center Caps Splayed
• Main Cap Register: Deep Stepped Register (no need for dowels)
• Oil System: Main Priority Oiling (can use dry sump)
• Oil Pump Shaft: 350 .481" Standard
• Oil Filter: STD, Uses 2-Bolt Adapter
• Oil Pan: STD 350
• Rear Main Seal: STD 350 2-Piece
• Serial No. Location: Left Front & Main Caps
• Starter: STD
• Stud Holes, Head: Blind Holes
• Timing Chain / Gears: STD
• Timing Cover: STD
• Torque Specs: 7/16" Bolts 65 ft. lbs., 3/8" Bolts - 35 ft. lbs.
• Weight: 92kg (205 lbs.)

Suggested Components (sold separate)

• Cam Bearings: Dart 32210020
• Main Bearings: Clevite MS909P STD
• Rear Main Seal: Fel-Pro BS40013
• Lifters: Melling JB-817
• Welsh Plugs: Aeroflow AF3000-1002
• Timing Chain: Rollmaster CS1000 or JP 5981
• Timing Cover: Aeroflow AF1828-2000 or AF1827-2000
• Dipstick: Aeroflow AF64-2110 or AF64-2110BLK
• Oil Filter Adapter: Aeroflow AF64-2185BLK
• Oil Pan: Aeroflow AF82-9005, AF82-9005BLK or AF82-9005C
• Oil Pump Drive shaft: Aeroflow AF37-2385
• Oil Pump: Melling M-55 or M-55HV
• Fuel Pump: Aeroflow AF49-1300
• Fuel Pump Push Rod: Aeroflow AF37-2495
• Starter Motor: Aeroflow AF4250-5323
• Engine Mounts: Aeroflow AF1200-1000
• Cylinder Head Bolts: Aeroflow AF37-2100
• Cylinder Head Studs: Aeroflow AF37-2000

Important Information:

• Sizes in reference to Deck Height, Cylinder Bore, Wall Thickness, etc, listed in these instructions are Nominal. This Block must be professionally finish machined.
• Due to a vast difference of opinion among professional builders regarding specifications and procedures, all blocks, when purchased bare, are finished within factory +/- tolerances. Tighter than factory or OE specs when applicable.
• Cam bearing OD should be de-burred before installation.
  When initially removing main caps, the caps & block should be de-burred before reinstalling; this will insure that correct main size is maintained.
• This Block should be assembled by experienced, professional engine builders. Many parameters such as Cylinder Bores will need additional, professional machine work.
• Many pistons are oversized, and cylinder bore must be honed to correct skirt clearance. Very few aftermarket components are drop ins to any engine block, without additional checking/machining.
