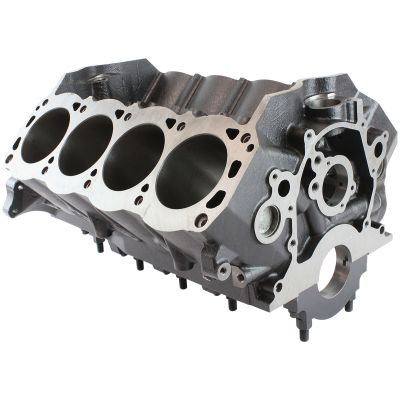

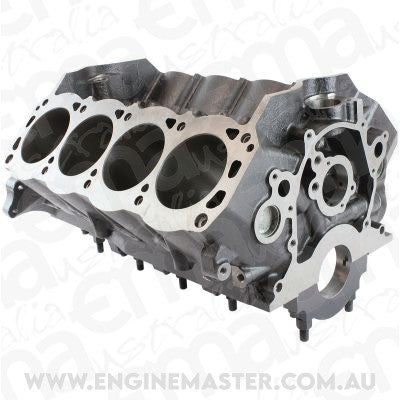

Aeroflow AF96-1010 Ford Windsor Bare Engine Block4.00 Bore 351C Main 9.50 Deck

Aeroflow Cast Iron Ford 351W Engine Block, 4.000" Bore
9.500" Deck Height, 351 Cleveland Mains, 4-Bolt Billet Splayed Caps

Aeroflow Performance engine blocks are the ideal starting point for any street performance build that demands quality and precision at a reasonable price. Why start your engine build with a worn-out production block from decades ago that needs hours of machine work. When you can start with a new heavy-duty cast iron engine block that is a semi-finished bare engine block that requires very little machining to match your internal components. These brand-new aftermarket engine blocks are cast from premium high-strength Class 32B iron. It features Siamese cylinder bores and splayed billet steel four-bolt main caps with priority main oiling system which direct oil straight to the main bearings. The extra thick standard deck height ensures a reliable head gasket seal as well as allowing the use of off the shelf standard components such as camshaft, timing chain, oil pump/pan and oil filter etc. You can rest assured that these Aeroflow engine blocks have a great foundation for your next engine build.

Specifications:
Cylinder Bore Diameter: 4.000"
Max Bore & Stroke: 4.185" x 4.125"
Cam Journal OD: STD SBF (can be bored to 55mm)
Cam Plug: 2.375" Press In Cup
Cam Location: STD
Cylinder Wall Thickness: .250". min @ 4.185" Bore
Deck Height: 9.500"
Deck Thickness: .675" Min
Fuel Pump: STD Mechanical Provision
Fuel Pump Pushrod: STD
Freeze Plugs: STD 1.500" Press In Cup
Lifter Bores: .874"
Main Bearing Size: 2.749" (351C)
Main Bearing Bore: STD (351C)
Main Cap Bolts: 1/2" & 3/8" on Caps 1 & 5, 7/16" Splayed on Caps 2, 3 & 4
Main Caps: Billet Steel, 3 Center Caps Splayed
Main Cap Register: Deep Stepped Register (no need for dowels)
Oil System: Main Priority Oiling (can use dry sump)
Oil Pump Shaft: STD SBF
Oil Filter: STD SBF
Oil Pan: Modified STD 351W
Rear Main Seal: STD 1-Piece
Serial No. Location: Right Front & Main Caps
Starter: STD
Stud Holes, Head: STD 1/2" Blind Holes
Timing Chain / Gears: STD
Timing Cover: STD
Torque Specs: 1/2" Bolts 105 ft. lbs., 7/16" Bolts 65 ft. lbs., 3/8" Bolts - 35 ft. lbs.
Weight: 94kg (208 lbs.)

Suggested Components (not included)
Cam Bearings: Clevite SH2510S
Main Bearings: Clevite MS1010P STD
Rear Main Seal: Fel-Pro 2921
Lifters: Melling 29901
Welsh Plugs: Aeroflow AF3000-1000
Timing Chain: Rollmaster CS3010 or JP 5982
Oil Pan: Aeroflow AF82-9532, AF82-9532BLK or AF82-9532C
Oil Pump Drive shaft: Aeroflow AF37-2388
Oil Pump: Melling M-83 or M-83HV
Fuel Pump: Aeroflow AF49-1306
Starter Motor: Aeroflow AF4250-5055
Engine Mounts: Aeroflow AF1202-1000
Cylinder Head Bolts: Aeroflow AF37-2117
Cylinder Head Studs: Aeroflow AF37-2017

Important Information
Sizes in reference to Deck Height, Cylinder Bore, Wall Thickness, etc, listed in these instructions are Nominal. This Block must be professionally finish machined.
Due to a vast difference of opinion among professional builders regarding specifications and procedures, all blocks, when purchased bare, are finished within factory +/- tolerances. Tighter than factory or OE specs when applicable.
Cam bearing OD should be de-burred before installation.
When initially removing main caps, the caps & block should be de-burred before reinstalling; this will insure that correct main size is maintained.
This Block should be assembled by experienced, professional engine builders. Many parameters such as Cylinder Bores will need additional, professional machine work.
Many pistons are oversized, and cylinder bore must be honed to correct skirt clearance. Very few aftermarket components are drop ins to any engine block, without additional checking/machining.
