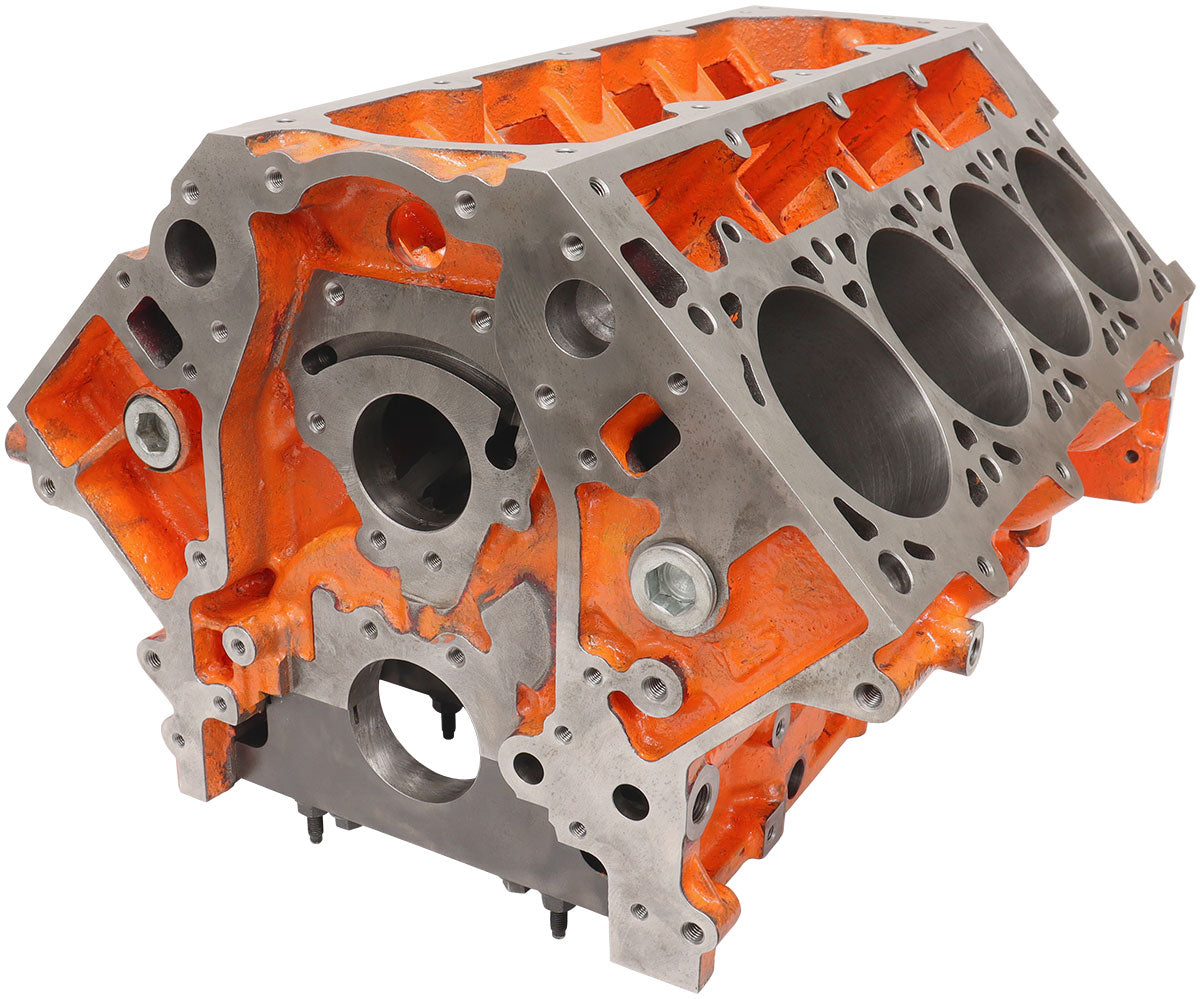

Aeroflow AF96-1023 GM LSX Bare Engine Block 4.000" Bore

Item Description

Aeroflow Cast Iron GM LSX Engine Block, 4.000" Bore
9.260" Deck Height, 4-Bolt Main Caps

Aeroflow Performance engine blocks are the ideal starting point for any street performance build that demands quality and precision at a reasonable price. Start with a new heavy-duty cast iron engine block that is a semi-finished bare engine block that requires very little machining to match your internal components. These brand-new aftermarket GM LSX engine blocks have priority main oiling systems with two lifter crossover channels for extra oiling. An extra thick deck height, thick Siamese cylinder bores and enlarged water jackets ensures a reliable block. Featuring conventional 4 bolt steel main caps with splayed outer bolts, extended cylinder barrels at the bottom with enough stroker clearance for up to 4.100” stroke. The use of off the shelf standard components such as camshaft, timing chain and oil pump/pan etc. means a variety of aftermarket and factory components can be used. You can rest assured that these Aeroflow engine blocks have a great foundation for your next engine build.

Specifications
Cylinder Bore Diameter: 4.000"
Max Bore & Stroke: 4.030" x 4.100"
Cam Journal OD: STD, 2.164"
Cam Location: STD
Deck Height: 9.260"
Fuel Pump: Electrical
Freeze Plugs: Screw in
Lifter Bores: .842"
Main Bearing Size: 2.558"
Main Bearing Bore: 2.750"
Main Cap Bolts: 4 Bolt
Main Caps: Billet Steel
Oil Filter: No Oil Filter landing (MUST use remote filter)
Oil Pan: STD
Rear Main Seal: STD 4.527"
Serial No. Location: Left Front & Main Caps
Starter: Factory OE Position
Stud Holes, Head: Blind Holes
Timing Chain / Gears: STD
Timing Cover: STD
Weight: 110kg (242 lbs.)

Suggested Components (not included)
Cam Bearings: Clevite SH2142S
Main Bearings: Clevite MS2199 STD
Rear Main Seal: Fel-Pro BS40640
Lifters: GM 124992257
Timing Cover: Aeroflow AF64-4361BLK
Dipstick: Aeroflow AF64-2111BLK
Oil Pan: AF82-2305, AF82-2014, AF82-2300
Oil Pump: Melling M-295 or M-295HV
Starter Motor: Aeroflow AF4250-9109
Engine Mounts: Aeroflow AF1201-0001, AF1201-0002
Cylinder Head Studs: ARP 234-4319
Main Studs: Aeroflow AF37-2227
Valley Plate: LS3 Aeroflow AF77-5016
