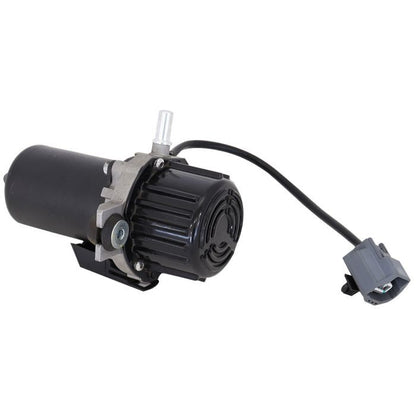

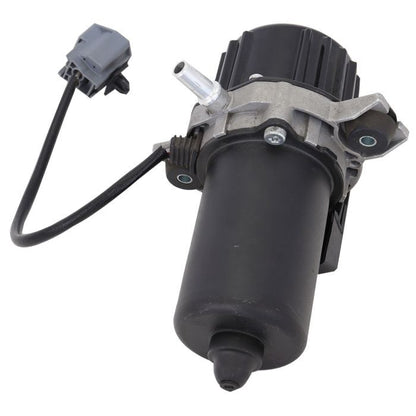

Holden VE-VF Vacuum Pump Compact (Universal Applications also)
SKU:AF49-1150
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
The braking system is one of the most important systems in any vehicle.
To ensure that constant brake power is accessible at all times, the use of a vacuum pump is often necessary. Most vehicle brake boosters use a vacuum that is generated by the naturally aspirated engine. The UP32 universal vacuum pump by Aeroflow Performance can be triggered on demand to support the brake booster. Especially when the engine does not supply sufficient vacuum under certain operating conditions, the UP32 supplies the vacuum to ensure brake booster operation. The compact design is a direct bolt on replacement fitment for Holden Commodore VE-VF models but can also be used in any universal application.
- Dimensions :
- Overall Width - 135mm
- Overall Depth - 110mm
- Operating temperature range: -40 °C to 120 °C
- Voltage Range: 10 Volts to 16 Volts
- Noise level: ≦ 65dB
- Current Working Amp Draw: 6.2 Amps
- Maximum Vacuum Level: 86 % (below ambient pressure level)
- Pressure build-up time to
- -50Kpa ≦ 2 seconds
- -70Kpa ≦ 4 seconds
- -80Kpa ≦ 6 seconds
