AFR - Air Flow Research AFR3001 Chevy BB Enforcer 335CC Cylinder Head Complete (each)

Chevy BB Enforcer 335CC Cylinder Head Complete (each)

1 1
AFR - Air Flow Research
AFR - Air Flow Research Part No. AFR3001
$1,915.75 AUD
$1,915.75 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

AFR3001

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

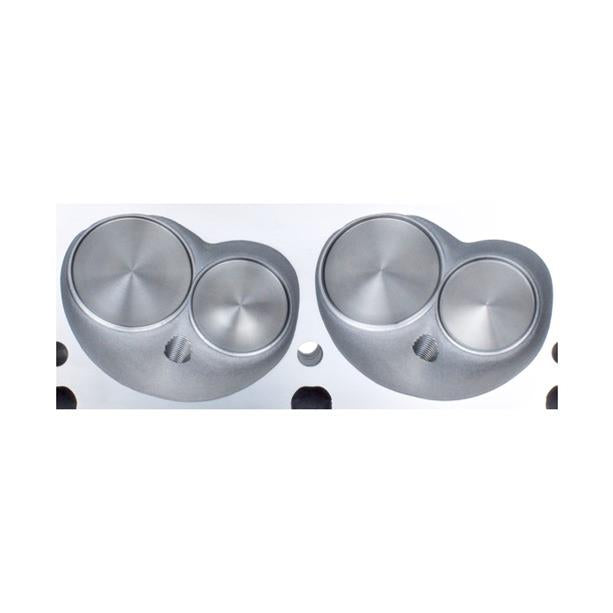

AFR 335cc Enforcer BBC Cylinder Heads AFR's 335cc BBC Enforcer cylinder heads feature their Permanent Mold "As-Cast" Technology surfaces on the intake runners, exhaust runners, and combustion chambers that allow for extremely accurate and repeatable port location/performance. These budget-friendly heads are perfect for your 509 to 540 cu.in. operating below 6,500 rpm. They come fully assembled with the identical components found in AFR's higher end CNC-ported cylinder headssuch as ARP rockers studs, PAC Racing springs, Viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring seats, and AFR's one-piece 8mm 21 4N stainless steel valves. Order the cylinder heads recommended for your year/make and engine application

Product Information

AFR 335cc Enforcer BBC Cylinder Heads AFR's 335cc BBC Enforcer cylinder heads feature their Permanent Mold "As-Cast" Technology surfaces on the intake runners, exhaust runners, and combustion chambers that allow for extremely accurate and repeatable port location/performance. These budget-friendly heads are perfect for your 509 to 540 cu.in. operating below 6,500 rpm. They come fully assembled with the identical components found in AFR's higher end CNC-ported cylinder headssuch as ARP rockers studs, PAC Racing springs, Viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring seats, and AFR's one-piece 8mm 21 4N stainless steel valves. Order the cylinder heads recommended for your year/make and engine application

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
AFR - Air Flow Research
MPN
Not provided
UPC
Not provided
Our Part Number
AFR3001
Combustion Chamber Volume (cc): 122
Intake Runner Volume (cc): 335cc
Exhaust Runner Volume (cc): 140cc
Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.250 in
CN:
C-Machined
Combustion Chamber: No
CN:
C-Machined Intake Runner: No
CN:
C-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Rectangular
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.880 in
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.725 in
Camshaft Style: Hydraulic roller
Outside Diameter of Outer Spring (in.): 1.550 in
Damper Spring Included: No
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24/4
Exhaust Valve Angle: 15/4
Valve Guides Included: No
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually. (ONE Cylinder Head)
Notes: Requires minimum bore diameter of 4.250 in
