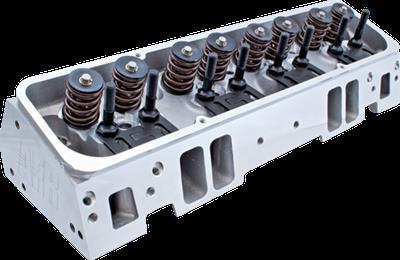

Air Flow Research AFR1001 Chev SB Enforcer Cylinder Head 64cc Chamber 195cc Intake Straight Plug (each)

1 3

AFR - Air Flow Research

AFR1001
$1,366.90 AUD
$1,366.90 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Air Flow Research AFR1001 Chev SB Enforcer Cylinder Head 64cc Chamber 195cc Intake Straight Plug (each)

Item Description

AFR 195cc SBC Enforcer Cylinder heads feature their Permanent Mold "As-Cast" Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance.

These budget-friendly heads are perfect for your 350 to 400 cu. in. operating below 6,000 rpm. They come fully assembled with the identical components found in their higher end CNC-ported cylinder heads, such as ARP rockers studs, PAC Racing springs, Viton® valve seals, AFR adjustable guide plates, machined bead valve locks, hardened spring cups and ductile iron seats, and their one piece 8mm 21 4N stainless steel valves. The AFR 195cc SBC Enforcer cylinder heads are available in straight or angle plug, assembled or bare.



  • Combustion Chamber Volume (cc):64
  • Intake Runner Volume (cc):195cc
  • Exhaust Runner Volume (cc):76cc
  • Cylinder Head Style:Assembled
  • Cylinder Head Material:Aluminum
  • Intake Port Shape:Rectangular
  • Intake Valve Diameter (in.):2.020 in.
  • Cylinder Head Color:Natural
  • CNC-Machined Combustion Chamber:No
  • CNC-Machined Intake Runner:No
  • CNC-Machined Exhaust Runner:No
  • Combustion Chamber Style:Heart
  • Intake Port Location:Standard
  • Exhaust Port Shape:Square
  • Exhaust Port Location:Standard
  • Spark Plug Style:Straight
  • Intake Valves Included:Yes
  • Exhaust Valves Included:Yes
  • Exhaust Valve Diameter (in.):1.600 in.
  • Valve Springs Included:Yes
  • Maximum Valve Lift (in.):0.600 in.
  • Camshaft Style:Hydraulic roller
  • Outside Diameter of Outer Spring (in.):1.290 in.
  • Damper Spring Included:Yes
  • Number of Springs Per Valve:Dual
  • Retainers Included:Yes
  • Retainer Material:Chromoly steel
  • Locks Included:Yes
  • Lock Style:7 degree
  • Valve Stem Seals Included:Yes
  • Rocker Arm Studs Included:Yes
  • Rocker Arm Nut Thread Size:3/8 in.-24
  • Rocker Arms Included:No
  • Rocker Arm Nuts Included:No
  • Guideplates Included:Yes
  • Guideplate Pushrod Size:5/16 in.
  • Valve Cover Mounting Style:Perimeter bolt
  • Accessory Bolt Holes Drilled:Yes
  • Intake Valve Angle:23
  • Exhaust Valve Angle:23
  • Valve Guides Included:Yes
  • Valve Seats Machined:Yes
  • Valve Seat Machine Style:3-angle
  • Valve Seat Material:Ductile iron
  • Steam Holes Drilled:No
  • Oiling Style:Through pushrod
  • Machined for O-Ring:No
  • Heat Crossover:No
  • Quantity:Sold individually.

Manufacturer Information

  • Manufacturer: AFR - Air Flow Research
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
