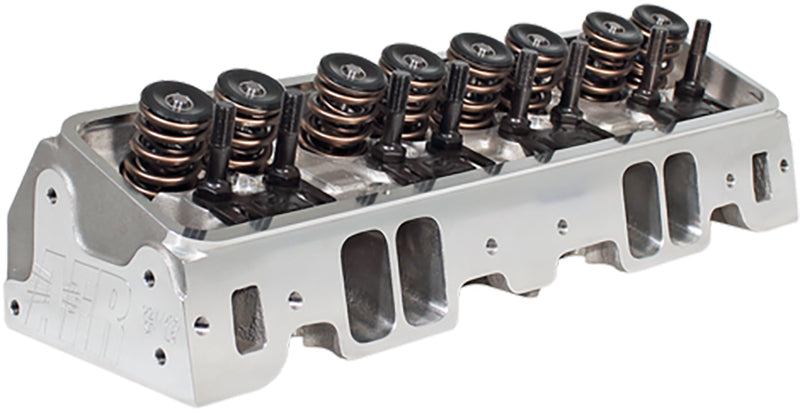

Air Flow Research AFR1130-TI Heads Chev SB 235cc Cnc Competition Ported 8

With the price of big displacement SBC engines fraction of what they were years ago, the allure to go BIG is stronger than ever. To help quench the thirst of that large displacement monster AFR is proud to offer the largest direct bolt on 23° Chevy head yet. At 235 cc's, anything under 400 inches can look the other way. It has the same geometry as the 227 head and will accept all the same rocker arms, stud girdles, etc. AFR offset stud girdles are the only special parts required. Some applications require shaft mount rockers or .050 offset intake rocker arm for durability and reliability of valve train components. Standard rocker arms can be used but the intake rocker arm will be at a slight angle and the roller tip will not be perfectly centered on the valve. It will feature a larger 2.125 diameter intake valve. Exhaust valve diameter stays the same with a little more flow from its larger runner volume. The big news is our all new intake port design which pushes this standard location intake port over 335 CFM's! That's 18° territory and this head should be able to generate power figures that rival those heads (725+ HP).

Basic Package Components:

•
• 100% CNC Ported Combustion Chambers
• 100% CNC Ported Exhaust Ports
• 100% CNC Ported Intake Ports
• 3-angle Radiused Valve Job
• Bead Lock Intake Valve, 2.125" x .100" long
• Bead Lock Exhaust Valve, 1.600" x .100" long
• 1.550" OD Roller Dual Valve Spring, 225 lbs on seat, .710" maximum lift
• 10° Titanium Retainers
• 10° Bead Lock Valve Keepers
• 7/16" Rocker Studs
• Guide Plates
• Viton Valve Seals
• Hardened Spring Seat
• Intake Valve Seats
• Exhaust Valve Seats
• Bronze Valve Guides
