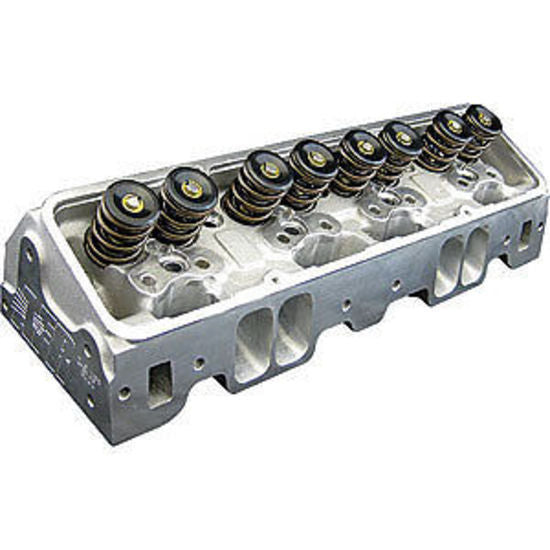

Air Flow Research AFR1138 245cc Chev SB Eliminator Competition Alloy Heads Complete Chev SB
AFR - Air Flow Research
AFR1138
Regular price
$4,416.95 AUD
Regular price
Sale price
$4,416.95 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Air Flow Research AFR1138 245cc Chev SB Eliminator Competition Alloy Heads Complete Chev SB
Item Description
|
AFR 245CC SBC ELIMINATOR COMPETITION ALLOY HEADS COMPLETE CHEV SB AFR1138 AFR 245cc NPP SBC Eliminator Racing cylinder heads have been designed for use in max effort applications, but would also be a consideration for larger displacement 427+ pump gas engines. They feature 100 percent CNC-ported combustion chambers, CNC-ported exhaust ports, and CNC-ported intake ports. They are a conventional direct bolt-on, non-raised runner intake port configuration. AFR 245CC Eliminator heads share identical valve centerlines and rocker stud locations to the SBC 227 and 235 product lines. Larger diameter 3/8 in. pushrods will fit without additional clearancing. They also come standard with a 3/4 in. deck, 2.125 in. intake, and 1.600 in. exhaust valves. AFR 245cc NPP SBC Eliminator Racing cylinder heads are available bare or assembled and represent one of the best flowing 23 degree heads to date. |
| Application: Chev Small Block Gen I Cylinder Head Style: Assembled Cylinder Head Material: Aluminum Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 80 CNC-Machined Combustion Chamber: Yes Intake Runner Volume (cc): 245cc Exhaust Runner Volume (cc): 80cc CNC-Machined Intake Runner: Yes CNC-Machined Exhaust Runner: Yes Combustion Chamber Style: Heart Intake Port Shape: Rectangular Intake Port Location: Standard Exhaust Port Shape: Square Exhaust Port Location: Raised Spark Plug Style: Angle Intake Valves Included: Yes Intake Valve Diameter (in): 2.125 in. Exhaust Valves Included: Yes Exhaust Valve Diameter (in): 1.600 in. Valve Springs Included: Yes Maximum Valve Lift (in): 0.800 in. Outside Diameter of Outer Spring (in): 1.550 in. Damper Spring Included: Yes Number of Springs Per Valve: Dual Retainers Included: Yes Retainer Material: Chromoly steel Locks Included: Yes Lock Style: 10 degree Valve Stem Seals Included: Yes Valve Stem Seal Style: Positive stop Rocker Arm Studs Included: No Rocker Arms Included: No Rocker Arm Nuts Included: No Guideplates Included: No Valve Cover Mounting Style: Perimeter bolt Accessory Bolt Holes Drilled: Yes Intake Valve Angle: 23 Exhaust Valve Angle: 23 Valve Guides Included: Yes Valve Guide Material: Bronze Valve Seats Machined: Yes Valve Seat Machine Style: 5-angle Valve Seat Material: Steel Steam Holes Drilled: No Oiling Style: Through pushrod Machined for O-Ring: No Heat Crossover: No Quantity: Sold as a pair. Notes: Designed for large displacement small blocks. Requires shaft mount rocker system and 0.180 in. offset lifters on intake valve. Exhaust port raised 0.250 in. over GM L98 head. |
Manufacturer Information
- Manufacturer: AFR - Air Flow Research
- Manufacturer Part Number:
- UPC:
- Colour:
- Additional Information:
- Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
