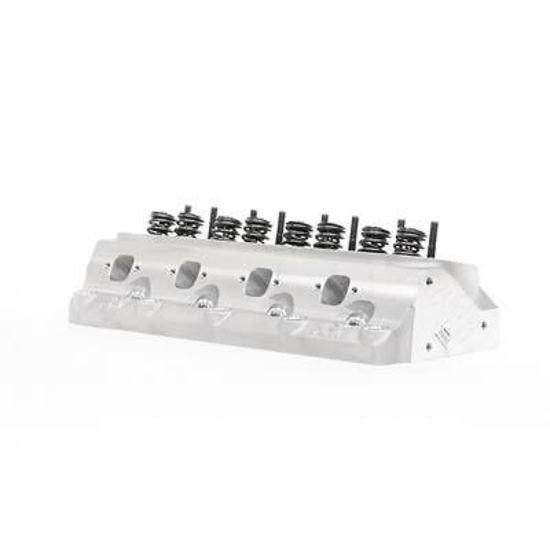

Air Flow Research AFR1399 Ford S/B Windsor 289-351 Alloy Head 165cc 1399
Item Description
Outlaw heads for the street or strip from AFR!
These AFR 165cc SBF Street/Strip Outlaw aluminum cylinder heads come ready for maximum small block Ford performance. They are not emissions-legal. The 165cc heads come with lightweight 8mm, 1.900 in. intake and 1.600 in. exhaust valves. These cylinder heads feature 58cc combustion chambers with 68cc exhaust ports. These heads have an available nitrous or blower exhaust port option featuring a 70cc ultra high-flowing exhaust port. With AFR's trademark 3/4 in. thick head deck, it's no problem handling that additional cylinder pressure. Each of these serious race pieces in street disguises is also drilled for the larger 1/2 in. head bolt hole as a standard feature for maximum head gasket retention.
- Brand Airflow Research
- Manufacturer's Part Number 1399
- Part Type Cylinder Heads
- Product Line AFR 165cc SBF Street/Strip Outlaw Heads
- Part Number AFR-1399
- Cylinder Head Style Assembled
- Cylinder Head Material Aluminum
- Cylinder Head Finish Natural
- Combustion Chamber Volume (cc) 58
- CNC-Machined Combustion Chamber Yes
- Intake Runner Volume (cc) 165cc
- Exhaust Runner Volume (cc) 68cc
- CNC-Machined Intake Runner Yes
- CNC-Machined Exhaust Runner Yes
- Combustion Chamber Style Heart
- Intake Port Shape Rectangular
- Intake Port Location Standard
- Exhaust Port Shape Square
- Exhaust Port Location Standard
- Spark Plug Style Angle
- Intake Valves Included Yes
- Intake Valve Diameter (in) 1.900 in.
- Exhaust Valves Included Yes
- Exhaust Valve Diameter (in) 1.600 in.
- Valve Springs Included Yes
- Maximum Valve Lift (in) 0.600 in.
- Outside Diameter of Outer Spring (in) 1.290 in.
- Damper Spring Included Yes
- Number of Springs Per Valve Dual
- Retainers Included Yes
- Retainer Material Chromemoly steel
- Locks Included Yes
- Lock Style 7 degree
- Valve Stem Seals Included Yes
- Valve Stem Seal Style Viton®
- Rocker Arm Studs Included Yes
- Rocker Arm Nut Thread Size 3/8-24 in.
- Rocker Arms Included No
- Rocker Arm Nuts Included No
- Guideplates Included Yes
- Guideplate Pushrod Size 5/16 in.
- Valve Cover Mounting Style Perimeter bolt
- Accessory Bolt Holes Drilled Yes
- Intake Valve Angle 20
- Exhaust Valve Angle 20
- Valve Guides Included Yes
- Valve Guide Material Bronze
- Valve Seats Machined Yes
- Valve Seat Machine Style 3-angle
- Valve Seat Material Ductile iron
- Steam Holes Drilled No
- Oiling Style Through pushrod
- Machined for O-Ring No
- Heat Crossover No
- Quantity Sold as a pair.
- Notes Cylinder heads are street ported.
