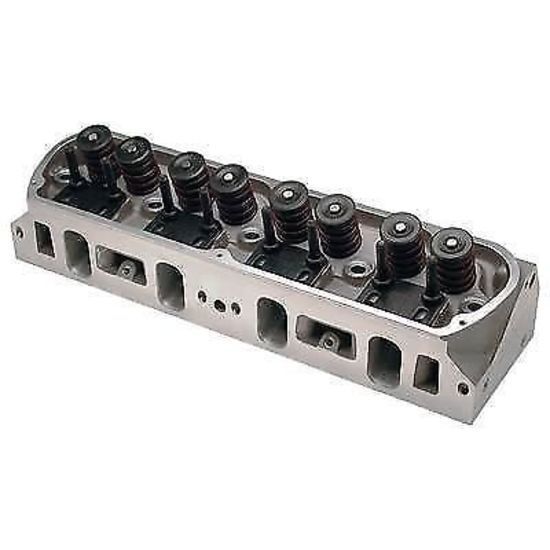

Air Flow Research AFR1450 205cc Renegade Alloy Ford Small Block Race Heads 1450

Air Flow Research AFR1450 205cc Renegade Alloy Ford Small Block Race Heads 1450

AFR1450
$5,648.09 AUD
$5,648.09 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
AFR 205CC RENEGADE ALLOY FORD SMALL BLOCK RACE HEADS AFR 1450If you're looking for the world's finest street/strip heads available, then AFR's 205cc Renegade Race cylinder heads are your answer. With lightweight 8mm 2.080 in. intake and 1.600 in. exhaust valves, these heads move tremendous volumes of air through conservative runner volumes, spelling big torque and horsepower numbers. With combustion chamber volumes of 58cc or 72cc accompanied by 70cc exhaust ports, which are raised .125 in. higher than stock, AFR's 205cc Outlaw Race heads are the ultimate choice for 331 through 392 c.i.d. engines operating from 3,500 rpm to 8,000 rpm. AFR's trademark 3/4 in. thick head deck makes them ideal for heavy nitrous or blower applications. They even offer an available nitrous or blower exhaust port option featuring a 73cc ultra high-flowing exhaust port. Specs:Application: Ford Small Block Windsor 302/351CID 1968-'95Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 58
CNC-Machined Combustion Chamber: Yes
Intake Runner Volume (cc): 205cc
Exhaust Runner Volume (cc): 70cc
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.080 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in): 0.710 in.
Outside Diameter of Outer Spring (in): 1.600 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16-20 in.
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold as a pair.
Notes: Exhaust ports are raised 0.125 in. higher than stock. These cylinder heads are race ready ported. Requires aftermarket pistons notched for valve clearance.




Manufacturer Part Number:
