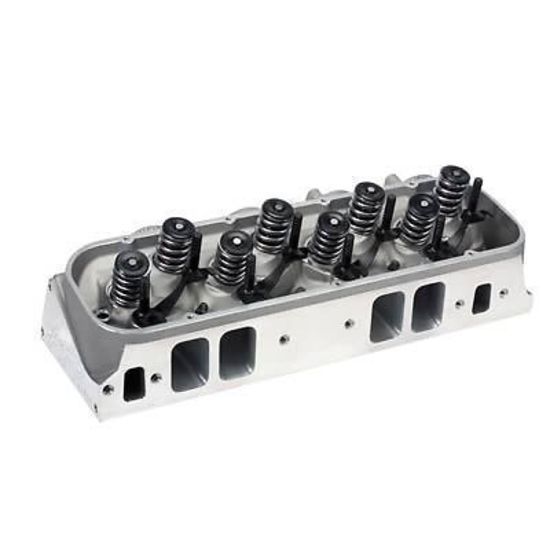

Air Flow Research AFR2110 Magnum 345 Alloy Heads 119cc Chamber Chev Big Block Assembled (pair)

Skip to product information
1 of 4

AFR - Air Flow Research

AFR2110

Regular price $6,620.20 AUD
Regular price Sale price $6,620.20 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Air Flow Research AFR2110 Magnum 345 Alloy Heads 119cc Chamber Chev Big Block Assembled (pair)

Item Description

AFR MAGNUM 345 ALLOY HEADS 119CC CHAMBER CHEV BIG BLOCK ASSEMBLED PAIR AFR2110
If "Dirty Harry" drove a race car, then it would certainly be fitted with a pair of AFR 345 Magnum aluminum cylinder heads. If huge horsepower is what you are searching for, then these castings will certainly deliver. With AFR race-ready "as cast" 345cc heads flirting with 400 cfm. AFR 345cc Magnum BBC cylinder heads represent the ultimate in airflow for your big block Chevrolet. These cylinder heads were targeted at larger cubic inch engines (509-632 c.i.d.) looking for maximum horsepower and rpm capability with a primary operating range of 3,500-8,000 rpm (this range is an average and will vary with engine displacement and component selection). These aluminum heads also provide impressive torque figures at higher rpm levels. Blown, turbo, and nitrous engines will especially like the larger, higher flowing intake ports. These heads will work best with camshafts exceeding 0.750 in. gross valve lift to make better use of the substantial airflow found in the higher lift range. AFR 345cc Magnum BBC cylinder heads come standard with AFR's trademark 3/4 in. thick cylinder head deck, reinforced rocker stud bosses, and premium one-piece stainless steel 2.300 in. intake and 1.880 in. exhaust valves.
Specs:Application: Chev Big Block 396-454 C.I.D Mark IV, Gen V, Gen VI
Cylinder Head Style Assembled
Cylinder Head Material Aluminum
Cylinder Head Finish Natural
Combustion Chamber Volume (cc) 115
CNC-Machined Combustion Chamber Yes
Intake Runner Volume (cc) 345cc
Exhaust Runner Volume (cc) 124cc
CNC-Machined Intake Runner No
CNC-Machined Exhaust Runner No
Combustion Chamber Style Heart
Intake Port Shape Rectangular
Intake Port Location Standard
Exhaust Port Shape Square
Exhaust Port Location Standard
Intake Valves Included Yes
Intake Valve Diameter (in) 2.300 in.
Exhaust Valves Included Yes
Exhaust Valve Diameter (in) 1.880 in.
Valve Springs Included Yes
Maximum Valve Lift (in) 0.750 in.
Outside Diameter of Outer Spring (in) 1.625 in.
Damper Spring Included Yes
Number of Springs Per Valve Dual
Retainers Included Yes
Retainer Material Chromoly steel
Locks Included Yes
Lock Style 10 degree
Valve Stem Seals Included Yes
Rocker Arm Studs Included Yes
Rocker Arm Nut Thread Size 7/16-20 in.
Rocker Arms Included No
Rocker Arm Nuts Included No
Guideplates Included Yes
Guideplate Pushrod Size 3/8 in.
Valve Cover Mounting Style Perimeter bolt
Accessory Bolt Holes Drilled Yes
Intake Valve Angle 24/4
Exhaust Valve Angle 15/4
Valve Guides Included Yes
Valve Guide Material Bronze
Valve Seats Machined Yes
Valve Seat Machine Style 5-angle
Valve Seat Material Ductile iron
Steam Holes Drilled No
Oiling Style Through pushrod
Machined for O-Ring No
Heat Crossover No
Quantity Sold as a pair.
