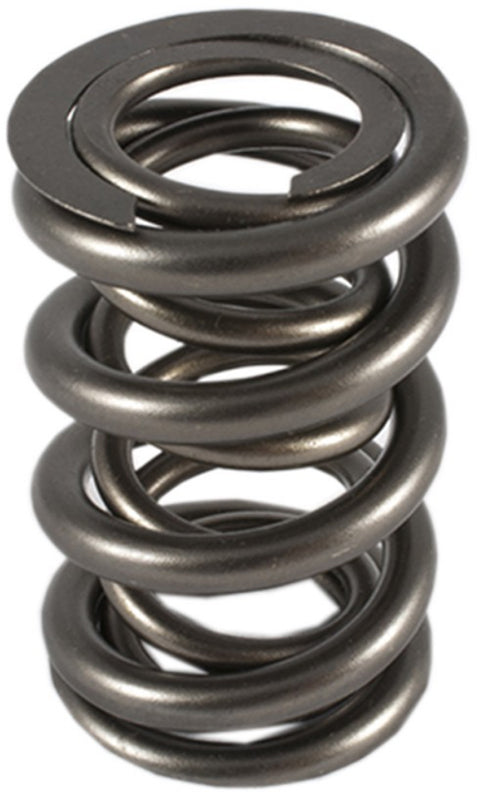

Air Flow Research AFR8001 Solid Roller Valve Spring 1.550 OD 250Lbs Yellow Stripe

Air Flow Research AFR8001 Solid Roller Valve Spring 1.550 OD 250Lbs Yellow Stripe

Skip to product information
1 of 2
AFR - Air Flow Research Part No. AFR8001
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:AFR8001

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Spring Specifications:

Outside Diameter:1.550"
Outer Spring ID: 1.100"
Middle Spring ID: N/A
Damper: No
Inner Spring ID: 0.788"
Install Height: 2.000"
Load at Installed Height: 250lbs
Spring Open Height: 1.200"
Spring Open Load: 765lbs
Recommended Valve Lift: 0.800"
Spring Rate (lbs/in): 644lbs
Coil Bind (max): 1.150"



Product Information

Spring Specifications:

Outside Diameter:1.550"
Outer Spring ID: 1.100"
Middle Spring ID: N/A
Damper: No
Inner Spring ID: 0.788"
Install Height: 2.000"
Load at Installed Height: 250lbs
Spring Open Height: 1.200"
Spring Open Load: 765lbs
Recommended Valve Lift: 0.800"
Spring Rate (lbs/in): 644lbs
Coil Bind (max): 1.150"



Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
AFR - Air Flow Research
MPN
Not provided
UPC
Not provided
Our Part Number
AFR8001

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

AFR - Air Flow Research

AFR - Air Flow Research products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
