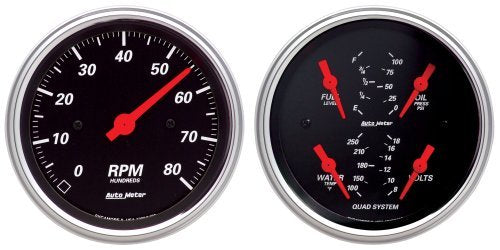

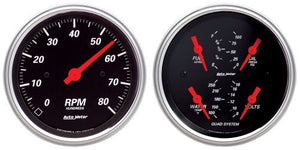

AutoMeter 1408 2 PC. GAUGE KIT, 3-3/8" QUAD & SPEEDOMETER, 240-33 Ohm, DESIGNER BLACK

1408 2 PC. GAUGE KIT, 3-3/8" QUAD & SPEEDOMETER, 240-33 Ohm, DESIGNER BLACK

1 2
AutoMeter
AutoMeter Part No. AU1408
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU1408

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8� NPT temperature sender and a 1/8� NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Product Information

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8� NPT temperature sender and a 1/8� NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Technical Information

Features
• Highly polished chrome bezel
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
• Sending unit adapters (1/4", 3/8�, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
• Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
• Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074014086
Our Part Number
AU1408
Series: DESIGNER BLACK
Dial Color: Black
Lens Style: Domed, Clear
Bezel Color: Chrome
Bezel Style: Street Rod
Size - Metric - MM: 85.7mm
Size - Standard - IN: 3-3/8"
Cup/Hole Size - Metric - MM: 85.7mm
Cup/Hole Size - Standard - IN: 3-3/8"
Outer Bezel Diameter - Standard: 3-3/8"
Outer Bezel Diameter: 3-3/4"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Fluorescent Red
Movement: Electric, Air-Core
Gauge Type: 2 Piece Kit
Range: 120 MPH/100 PSI/100-250 °F/8-18V/240OE-33OF
Includes Sensor Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.
Includes Bulb & Socket: 3211 & 3212
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: Brackets Included
Cross Sell: 5291, 5292, 5289, 5290, 2282, 2280
Upsell: 5291, 5292, 5289, 5290, 2282, 2280
Related Item: 2160, BEX-1500, EP-800, 0423XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Oil Pressure,0-100 psi
Water Temperature,100-250°F
Fuel Level, 240 ohms Empty/33 ohms Full
Voltmeter,8-18 volts
