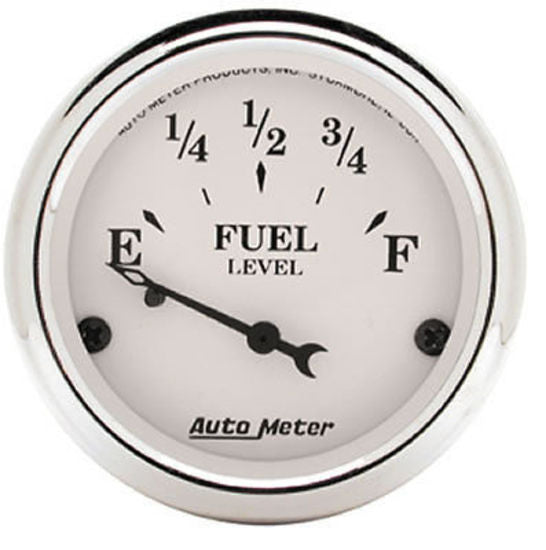

AutoMeter 1604 2-1/16" FUEL LEVEL, 0-90 Ohm, GM, OLD TYME WHITE

1604 2-1/16" FUEL LEVEL, 0-90 Ohm, GM, OLD TYME WHITE

1 2
AutoMeter
AutoMeter Part No. AU1604
$123.95 AUD
$142.80 AUD $123.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU1604

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Product Information

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Technical Information

Features
• Highly polished chrome bezel
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Works with most 1965 to 1997 Chevrolet/GM senders
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074016042
Our Part Number
AU1604
Bezel Style: Street Rod
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-15/64"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Black
Movement: Electric, Air-Core
Gauge Type: Fuel Level
Range: 0 O Empty / 90 O Full
Includes Bulb & Socket: 3220
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: 2230
Cross Sell: 3298, 3288, 3286, 3285, 3284, 3287
Upsell: 3298, 3288, 3286, 3285, 3284, 3287
Related Item: 2160, BEX-1500, EP-800, 0423XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Series: OLD-TYME WHITE
Dial Color: White
Lens Style: Domed, Clear
Bezel Color: Chrome
