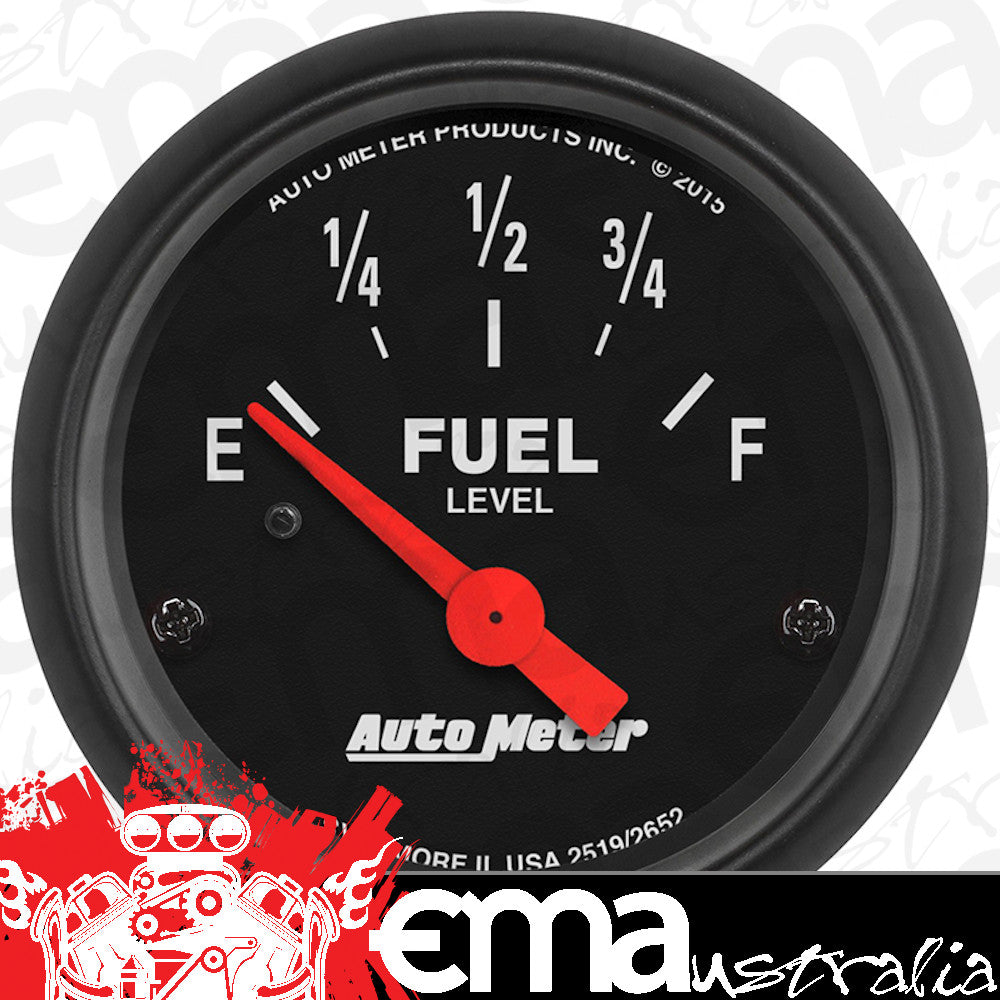

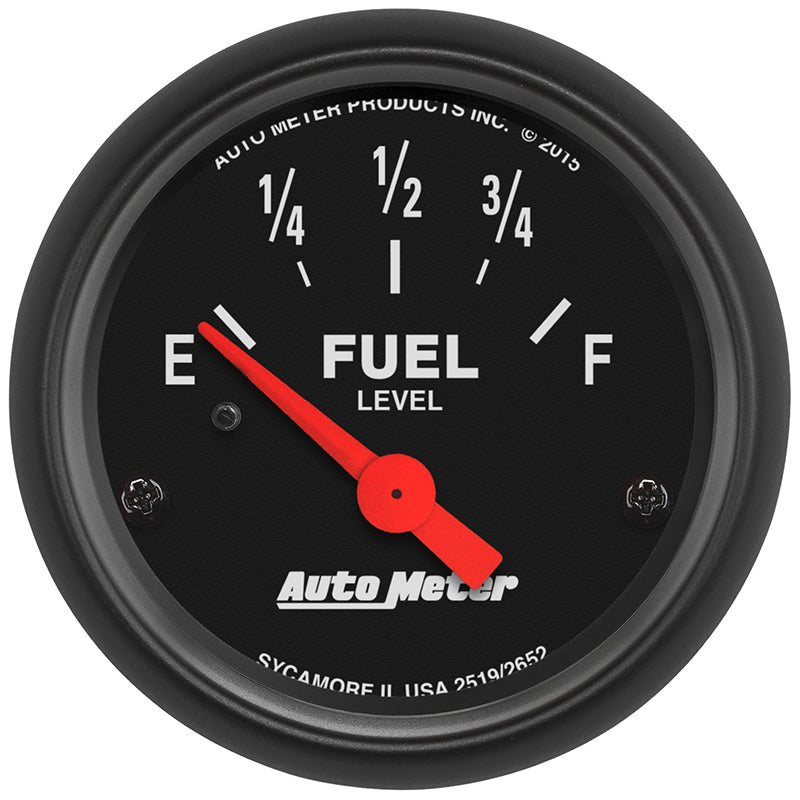

AutoMeter 2652 2-1/16" FUEL LEVEL, 73-10 Ohm LINEAR, Z-SERIES

2652 2-1/16" FUEL LEVEL, 73-10 Ohm LINEAR, Z-SERIES

1 2
AutoMeter
AutoMeter Part No. AU2652
$135.95 AUD
$159.55 AUD $135.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU2652

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Product Information

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Technical Information

Features
• Includes bulb and socket assembly with red and green bulb covers
• Designed specifically for use with aftermarket/reproduction 73-10ohm fuel level sensors for Ford and Chrysler applications that have a linear scale.
• Features Air-Core meter movement
• Includes gauge mounting hardware and installation instructions
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074026522
Our Part Number
AU2652
Series: Z-SERIES
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Black
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-5/16"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Fluorescent Red
Movement: Electric, Air-Core
Gauge Type: Fuel Level
Range: 73 O Empty / 10 O Full (LINEAR)
Includes Bulb & Socket: 3220
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: 2230
Cross Sell: 3288, 3286, 3285, 3284, 3287
Upsell: 3288, 3286, 3285, 3284, 3287
Related Item: 2160, BEX-1500, EP-800, 0423XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Includes bulb and socket assembly with red and green bulb covers
Designed specifically for use with aftermarket/reproduction 73-10ohm fuel level sensors for Ford and Chrysler applications that have a linear scale.
Features Air-Core meter movement
Includes gauge mounting hardware and installation instructions
Gauge Face Color: Black
Sending Unit: Electrical
Gauge Range: Empty-full
Gauge Size (in): 2 1/16 in. diameter
Gauge Size (mm): 52.40mm diameter
Sweep: 90 degree sweep
Sender Ohm Range: 70 ohms empty, 10 ohms full
Gauge Number Color: White
Pointer Color: Red
Bezel Finish: Black
Illuminated: Yes
Liquid-Filled: No
OEM Replacement: No
Sending Unit Included: No
Quantity: Sold individually.
Gauge Series: Analog
