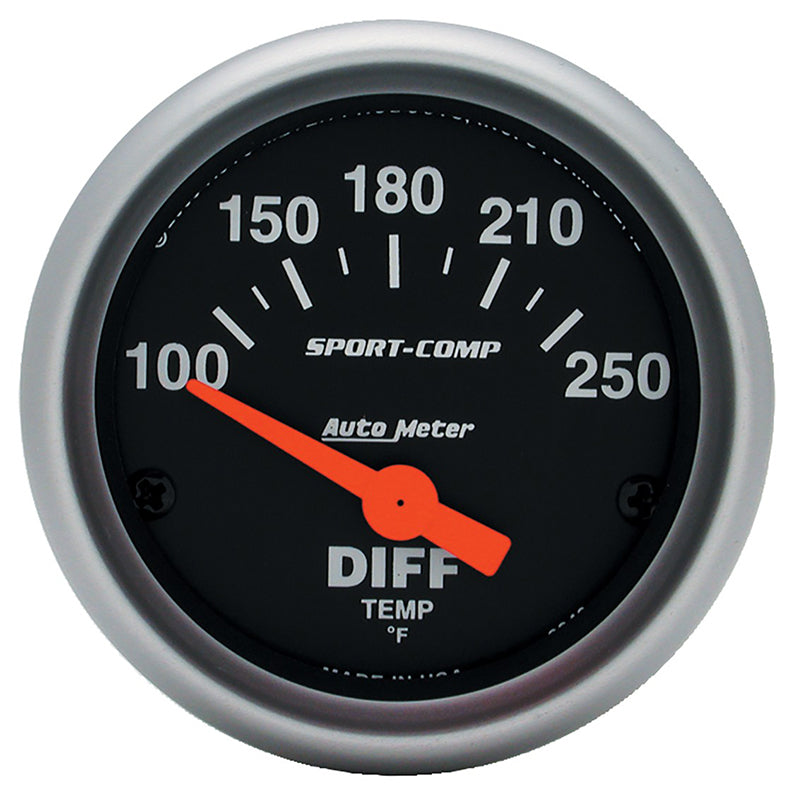

AutoMeter 3349 2-1/16" DIFFERENTIAL TEMPERATURE, 100-250 F, SPORT-COMP

3349 2-1/16" DIFFERENTIAL TEMPERATURE, 100-250 F, SPORT-COMP

1 2
AutoMeter
AutoMeter Part No. AU3349
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU3349

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

When your vehicle leaves the pavement, the importance of differential temp can’t be understated. Make sure your vehicle will make it safely back to the pavement and ensure the long life of your differential with AutoMeter’s Short Sweep Electronic Diff Temp Gauge. Built with the same attention to quality and detail as every AutoMeter gauge, you can be assured of top notch accuracy and durability thanks to AutoMeter’s patented air core meter movement.. A single wire 1/8� NPT temperature sender is included.

Product Information

When your vehicle leaves the pavement, the importance of differential temp can’t be understated. Make sure your vehicle will make it safely back to the pavement and ensure the long life of your differential with AutoMeter’s Short Sweep Electronic Diff Temp Gauge. Built with the same attention to quality and detail as every AutoMeter gauge, you can be assured of top notch accuracy and durability thanks to AutoMeter’s patented air core meter movement.. A single wire 1/8� NPT temperature sender is included.

Technical Information

Features
• Traditional incandescent lighting illuminates around the perimeter of the dial
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes 1/8� NPT temperature sender, 3/8� and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074033490
Our Part Number
AU3349
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Fluorescent Red
Movement: Electric, Air-Core
Gauge Type: Differential Temperature
Range: 100-250 °F
Includes Sensor Unit: 2258
Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
Includes Bulb & Socket: 3220
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: 2230
Cross Sell: 3284, 3285, 3286, 3287, 3288
Upsell: 3284, 3285, 3286, 3287, 3288
Related Item: 2160, BEX-1500, EP-800, 0423XL, 0424XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Series: SPORT-COMP
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Brushed Aluminum
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Includes 1/8" NPT Sender.
Air-Core meter movement.
Includes 3/8" NPT adapter/fitting.
Includes 1/2" NPT adapter/fitting.
