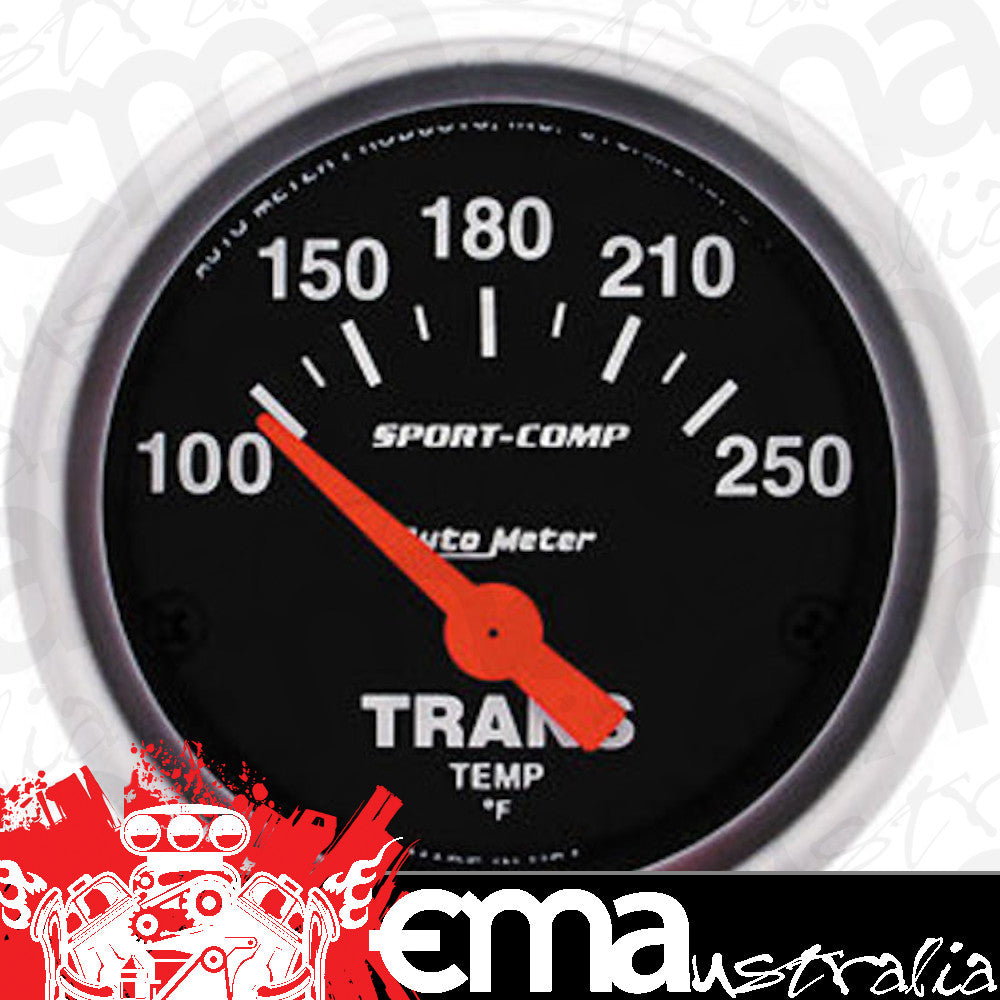

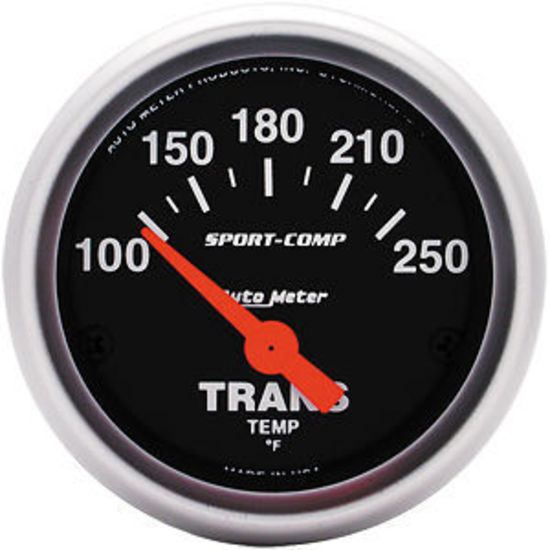

AutoMeter 3357 2-1/16" TRANSMISSION TEMPERATURE, 100-250 F, SPORT-COMP

3357 2-1/16" TRANSMISSION TEMPERATURE, 100-250 F, SPORT-COMP

1 2
AutoMeter
AutoMeter Part No. AU3357
$159.95 AUD
$159.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU3357

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8� NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Product Information

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8� NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Technical Information

Features
• Traditional incandescent lighting illuminates around the perimeter of the dial
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes 1/8� NPT temperature sender, 3/8� and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074033575
Our Part Number
AU3357
Series: SPORT-COMP
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Brushed Aluminum
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Fluorescent Red
Movement: Electric, Air-Core
Gauge Type: Transmission Temperature
Range: 100-250 °F
Includes Sensor Unit: 2258
Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
Includes Bulb & Socket: 3220
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: 2230
Cross Sell: 2259, 2260, 2286, 2287
Upsell: 2259, 2260, 2286, 2287
Related Item: 2160, BEX-1500, EP-800, 0423XL, 0424XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
