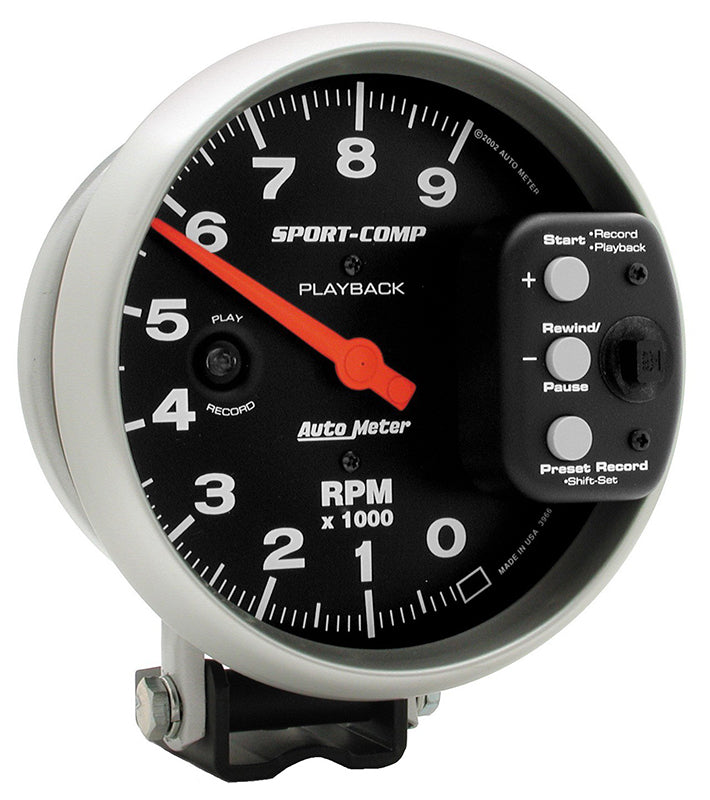

AutoMeter 3966 5" PEDESTAL PLAYBACK TACHOMETER, 0-9,000 RPM, SPORT-COMP

3966 5" PEDESTAL PLAYBACK TACHOMETER, 0-9,000 RPM, SPORT-COMP

1 2
AutoMeter
AutoMeter Part No. AU3966
$755.95 AUD $680.36 AUD SAVE 10% Applied automatically in cart · Ends Mon 8am AEDT
Taxes included. Shipping calculated at checkout.

AU3966

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

Since 1957, AutoMeter has set the standard in performance, accuracy and durability with their legendary Tachometers. Built for a lifetime of service under the harshest conditions, this is the no compromise tach for no compromise builds. Record up to 80 seconds of engine RPM data and playback at slow motion speeds to analyze vehicle and driver performance following a run. Identify key performance data such as burnout, launch RPM, tire spin, gear changes and engine speed through the traps to fine tune your setup and trip the win lights.

Product Information

Since 1957, AutoMeter has set the standard in performance, accuracy and durability with their legendary Tachometers. Built for a lifetime of service under the harshest conditions, this is the no compromise tach for no compromise builds. Record up to 80 seconds of engine RPM data and playback at slow motion speeds to analyze vehicle and driver performance following a run. Identify key performance data such as burnout, launch RPM, tire spin, gear changes and engine speed through the traps to fine tune your setup and trip the win lights.

Technical Information

Features
• Remote recording trigger lead may be connected to driver accessible push button, trans-brake, line-lock, clutch switch, or foot brake light switch for maximum versatility and ease of use for the driver.
• Green LED recording status lamp provides quick visual indication of tachometer mode to the driver to ensure you never miss a recording.
• Playback a complete run of engine RPM data at 1:1 or 1:3 speed
• Compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
• AutoMeter’s race proven air-core electric tachometers provide quick and accurate readings with a needle so responsive it can go from 0 - full scale in 333 milliseconds
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Optional shift light connector allows for the addition of a variety of options from AutoMeter to improve driver visibility and reaction to desired gear change points.
• Program up to 4 gear-specific shift light points to maximize your vehicle's performance.
• Built in short-shift protection prevents missed shifts due to early shifts by monitoring RPM drop and intelligently determining when a gear change has occurred.
• Optional Launch Lite feature utilizes a Shift Lite connected to the tachometer to help the driver properly stage the vehicle and maintain desired RPM prior to launch in classes.
• Where launch control electronics are prohibited by utilizing the light to indicate whether you are at, above, or below your desired launch RPM.
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074039669
Our Part Number
AU3966
Series: SPORT-COMP
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Brushed Aluminum
Bezel Style: Super Bezel
Size - Metric - MM: 127mm
Size - Standard - IN: 5"
Cup/Hole Size - Metric - MM: 111.13mm
Cup/Hole Size - Standard - IN: 3-7/16"
Outer Bezel Diameter - Standard: 3-7/16"
Outer Bezel Diameter: 4-15/16"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Fluorescent Red
Movement: Electric, Air-Core
Gauge Type: Pedestal Tachometer
Range: 0-9,000 RPM
Includes Bulb & Socket: 3219
Includes Mounting Hardware: 3209
Cross Sell: 5334, 5330, 5332, 3296, 9117, 5265
Upsell: 5334, 5330, 5332, 3296, 9117, 5265
Related Item: 2160, BEX-1500, EP-800, 0424XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
