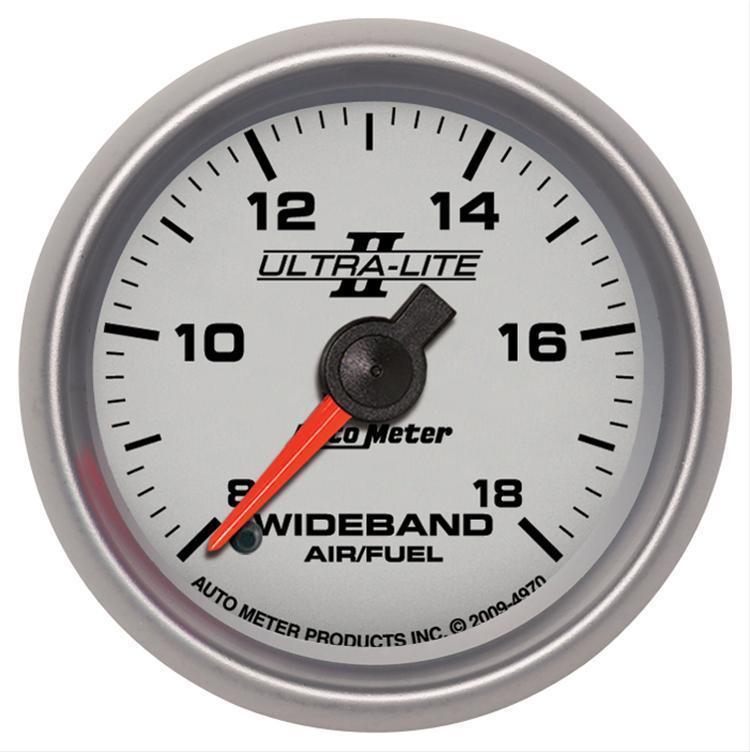

AutoMeter 4970 2-1/16" WIDEBAND AIR/FUEL RATIO, ANALOG, 8:1-18:1 AFR, ULTRA-LITE II

4970 2-1/16" WIDEBAND AIR/FUEL RATIO, ANALOG, 8:1-18:1 AFR, ULTRA-LITE II

1 2
AutoMeter
AutoMeter Part No. AU4970
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU4970

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Mirroring the functions of AutoMeter’s Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you’re extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.

Product Information

Mirroring the functions of AutoMeter’s Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you’re extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.

Technical Information

Features
• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
• AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
• Display range of 8:1 to 18:1
• Suitable for use with gasoline powered engines
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074049705
Our Part Number
AU4970
Series: ULTRA-LITE II
Dial Color: Silver
Lens Style: Flat, Clear
Bezel Color: Brushed Aluminum
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: LED
Lighting Color: White
Pointer Color: Fluorescent Red
Movement: Electric, Digital Stepper Motor
Gauge Type: Wideband Air/Fuel Ratio (AFR)
Range: 8:1-18:1 AFR
Includes Sensor Unit: 2243
Includes Adapter/Fitting: M18X1.5 Fitting and Plug
Includes Wire Harness: 5298
Includes Mounting Hardware: 2230
Cross Sell: 5252, 2204, 2236, 2121, 4379, 4397
Upsell: 5252, 2204, 2236, 2121, 4379, 4397
Related Item: 2160, BEX-3000, EP-800
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Gauge Style: Auto Meter Ultra-Lite II
Gauge Type: Air/Fuel ratio
Gauge Series: Analog
Gauge Face Color: Silver
Sending Uni Electrical
Gauge Range: 8:1-18:1 air/fuel ratio
Gauge Size (in): 2 1/16 in. diameter
Gauge Size (mm): 52.40mm diameter
Sweep: Full sweep
Gauge Number Color: Black
Pointer Color: Orange
Bezel Finish: Silver
Liquid-Filled: No
OEM Replacemen No
Sending Unit Included: Yes
Quantity: Sold individually.
Notes: Includes 8 ft. wiring harness.
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

AutoMeter

AutoMeter products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.

Read more about AutoMeter →
