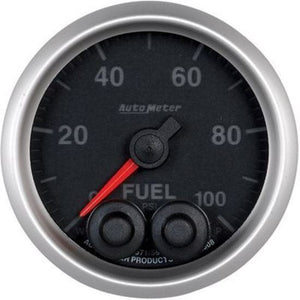

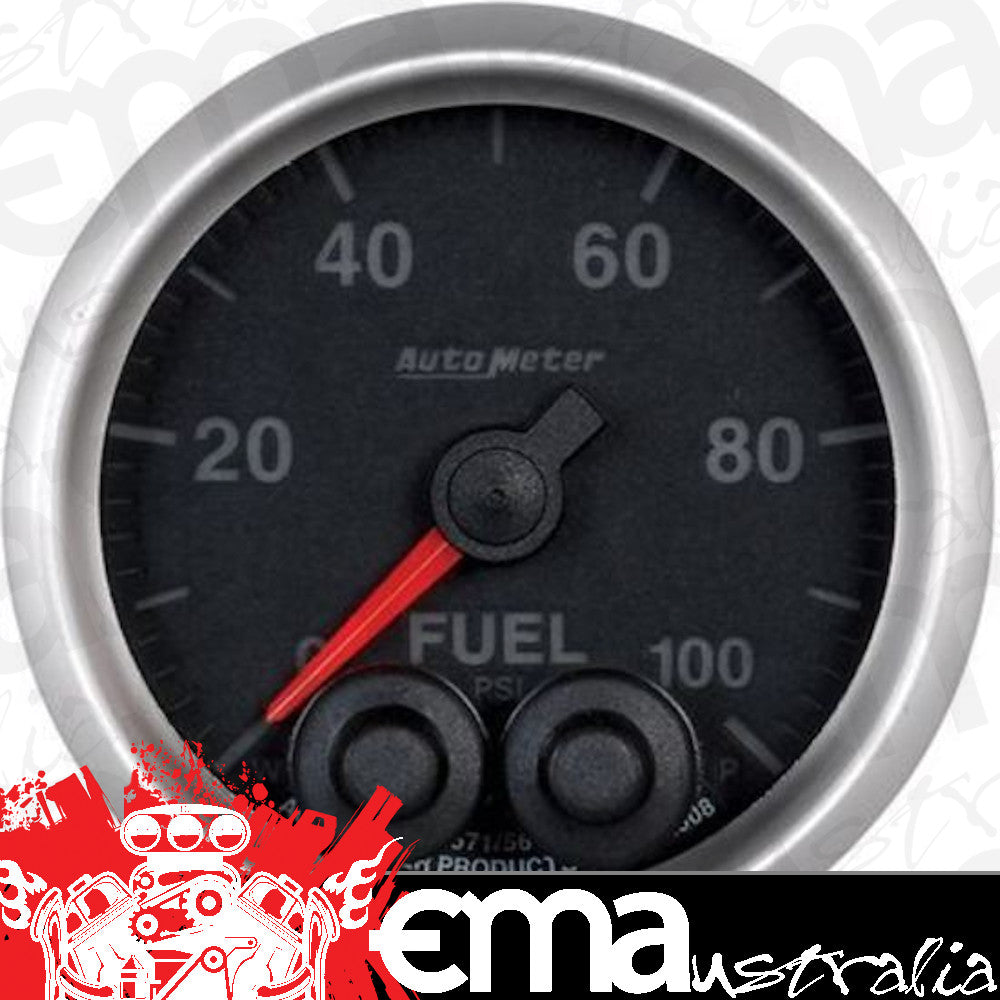

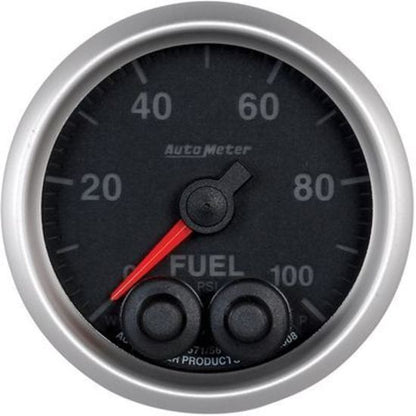

AutoMeter 5671 2-1/16" FUEL PRESSURE, 0-100 PSI, ELITE

5671 2-1/16" FUEL PRESSURE, 0-100 PSI, ELITE

1 2
AutoMeter
AutoMeter Part No. AU5671
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU5671

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.

Product Information

a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.

Technical Information

Features
• 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
• Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
• Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
• Acquire data for later review with one-touch Peak Recall functionality
• Data logger 0-5V output provides ECU and data systems with vital information
• Gauge kit includes 1/8� NPT stainless steel pressure transducer, wiring harness, mounting hardware, and detailed instructions for installation
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
• The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074056710
Our Part Number
AU5671
Series: ELITE
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Brushed Aluminum
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: LED
Lighting Color: 7 User Selectable Colors
Pointer Color: Fluorescent Red
Movement: Electric, Digital Stepper Motor
Gauge Type: Fuel Pressure
Range: 0-100 PSI
Includes Sensor Unit: 2246
Includes Wire Harness: 5275
Includes Mounting Hardware: 2230
Cross Sell: 3280, 3275, 2276, 2296, 2121, 2205
Upsell: 3280, 3275, 2276, 2296, 2121, 2205
Related Item: 2163, BEX-5000, EP-800, 0424XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
