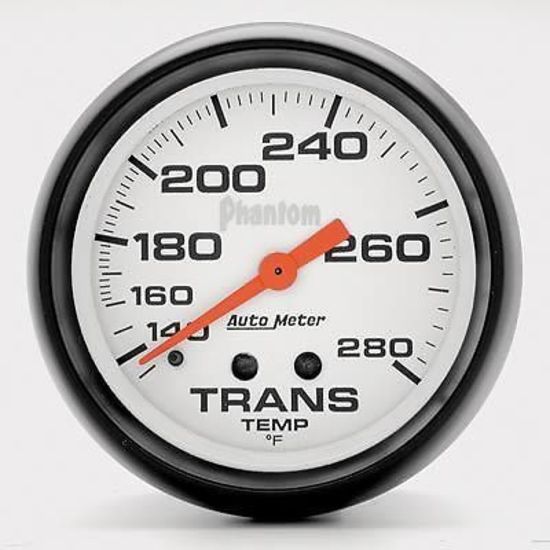

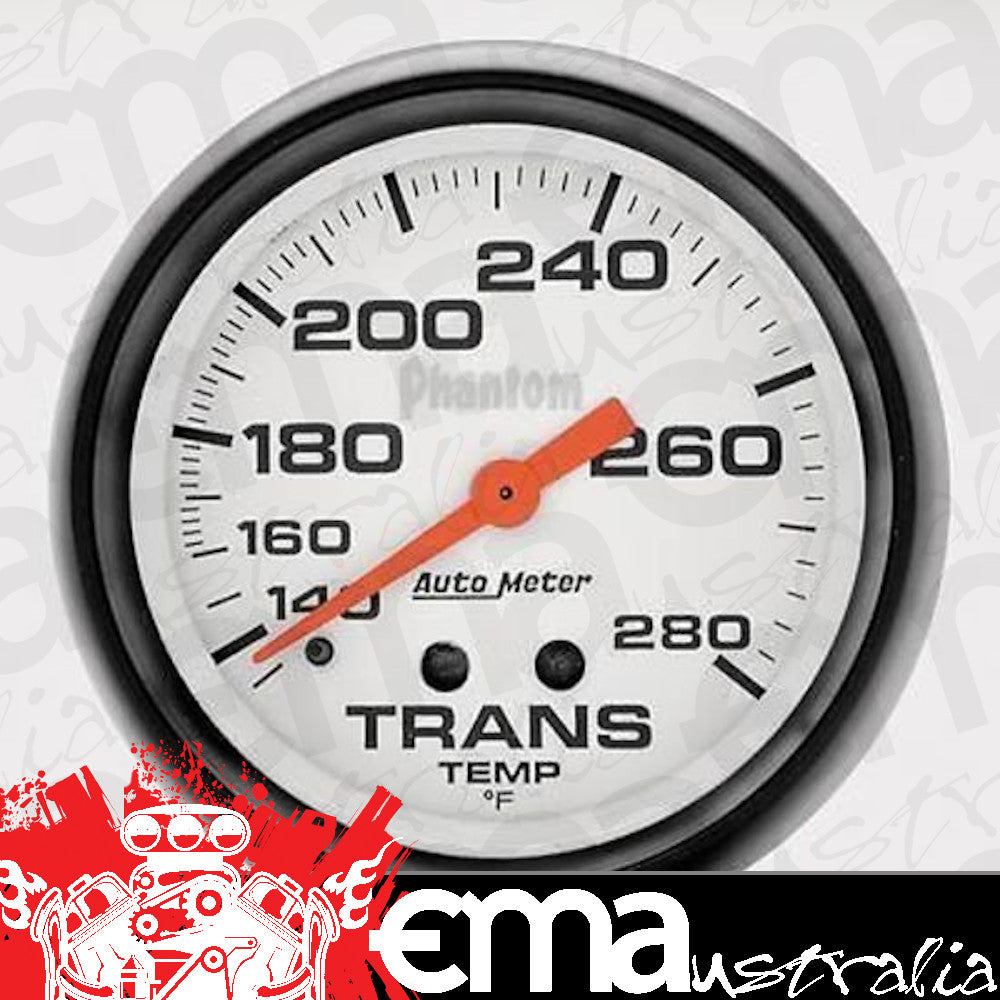

AutoMeter 5851 2-5/8" TRANSMISSION TEMPERATURE, 140-280 F, PHANTOM

5851 2-5/8" TRANSMISSION TEMPERATURE, 140-280 F, PHANTOM

1 2
AutoMeter
AutoMeter Part No. AU5851
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU5851

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8’ Capillary Tube with a 1/2� NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.

Product Information

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8’ Capillary Tube with a 1/2� NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.

Technical Information

Features
• Traditional incandescent lighting illuminates around the perimeter of the dial
• AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
• No electrical system required for gauge operation - compatible with every street or race vehicle
• Mechanical movements provide accuracy and durability even in the harshest environments
• Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074058516
Our Part Number
AU5851
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Series: PHANTOM
Dial Color: White
Lens Style: Flat, Clear
Bezel Color: Black
Bezel Style: Super Bezel
Size - Metric - MM: 66.7mm
Size - Standard - IN: 2-5/8"
Cup/Hole Size - Metric - MM: 66.7mm
Cup/Hole Size - Standard - IN: 2-5/8"
Outer Bezel Diameter - Standard: 2-5/8"
Outer Bezel Diameter: 2-7/8"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Fluorescent Red
Movement: Mechanical
Gauge Type: Transmission Temperature
Range: 140-280 °F
Includes Adapter/Fitting: 1/2"" NPT adapter/fitting.
Includes Tubing: 10.5 ft. Capillary Tube
Includes Bulb & Socket: 3220
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: 3245
Cross Sell: 2261
Upsell: 2261
Related Item: 2160, BEX-1500, EP-800, 0424XL
Prop 65 Yes/No: Yes
Includes 8 ft. tubing.
Includes 1/2" NPT adapter/fitting.
