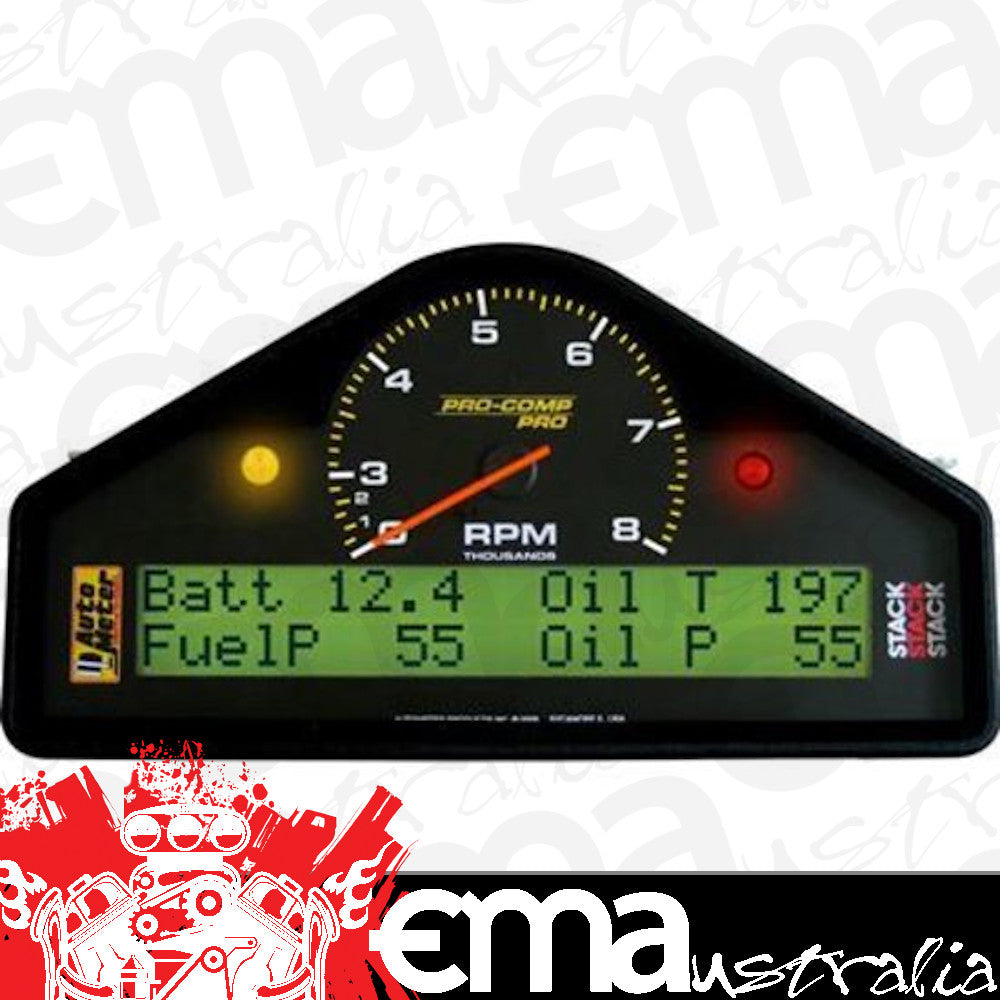

AutoMeter 6012 RACE DASH, 0-3-8K RPM, PRO-COMP PRO

6012 RACE DASH, 0-3-8K RPM, PRO-COMP PRO

Skip to product information
1 of 2
AutoMeter Part No. AU6012
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:AU6012

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

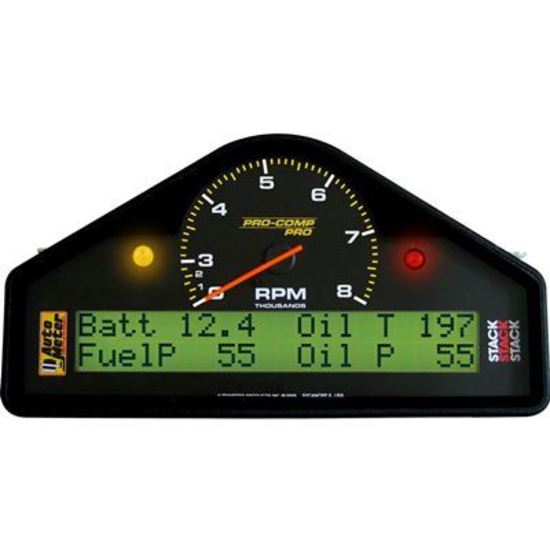

The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.

Product Information

The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.

Technical Information

Features
• Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.
• Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
• Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
• Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
• Display features digital values for vehicle parameters and configurable text warning messages
• Built-in warning and shift light LEDs
• Optional shift light output, single stage or progressive shift light
• Configurable for engines from 1-12 cylinders
• Programmable Speed input
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074060120
Our Part Number
AU6012
Range: 0-3-8K RPM/200+ MPH/0-150 PSI/0-150 PSI/0-300 °F/0-300°F/8-18V
Includes Sensor Unit: ST764K, ST747, ST492
Includes Wire Harness: Call Auto Meter Technical Support At 1-866-248-6357
Includes Mounting Hardware: Hardware Included
Cross Sell: 5289, 5290, 5291, 5292, ST539, ST537
Upsell: 5289, 5290, 5291, 5292, ST539, ST537
Related Item: BEX-5000, 2163, EP-800
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Series: PRO-COMP
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Black
Bezel Style: Stack
Size - Standard - IN: 7.5"W x 4"H x 1-1/2"D
Lighting Type: LED
Lighting Color: White
Pointer Color: Fluorescent Red
Movement: Analog/Digital
Gauge Type: Analog/Digital
Dimensions - 8.3" Wide x 5.2" High x 1.4" Deep
Carbon Composite Housing
Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
Display features digital values for vehicle parameters and configurable text warning messages
Built-in warning and shift light LEDs
Optional shift light output, single stage or progressive shift light
Configurable Tachometer for 1 to 12 cylinders
Vehicle speed
Oil pressure
Water temperature
Oil temperature
Fuel pressure
Internal 3-axis accelerometer +/-6g
Internal battery voltage
IP67 sealed
Operating temperature range: 20ºF to 180ºF
Humidity: 0-100% RH
Continuous vibration up to 20g, Shock up to 50g
Weight: 1.5lbs
Motorsports grade wiring harness included
Data download upgrade with ST8185 - Allows the Race dash to download to DataPro software. Includes network harness, network to USB cable, and DataPro software
