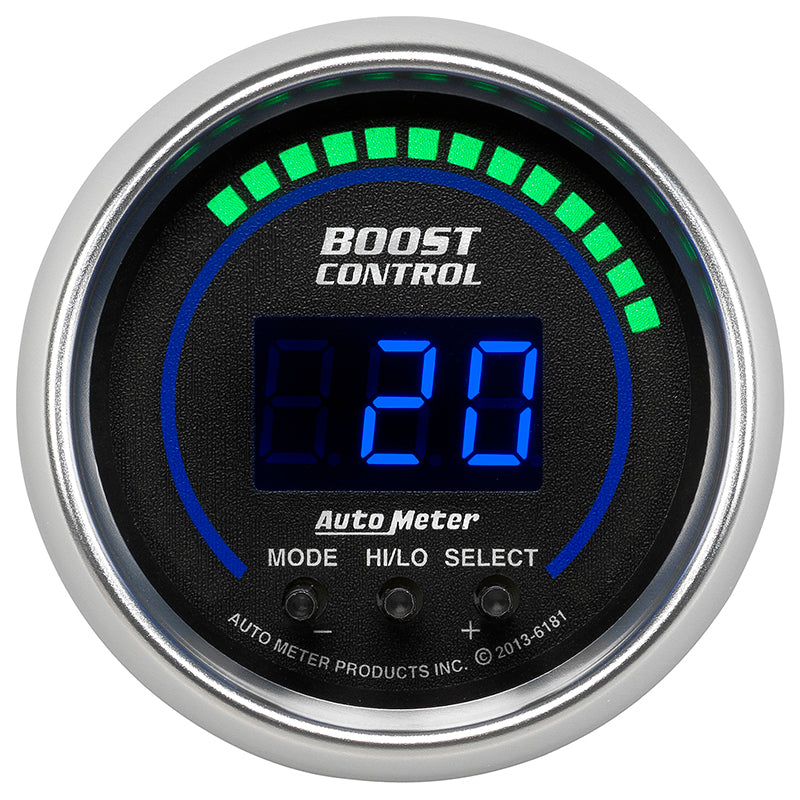

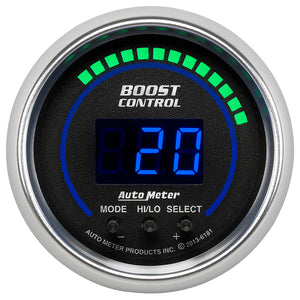

AutoMeter 6181 2-1/16" BOOST CONTROLLER, 30 IN HG/30 PSI, COBALT

6181 2-1/16" BOOST CONTROLLER, 30 IN HG/30 PSI, COBALT

1 2
AutoMeter
AutoMeter Part No. AU6181
$868.95 AUD
$829.90 AUD $868.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU6181

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

Offering an unparalleled feature set, the AutoMeter Boost Controller redefines what a boost controller should be. In addition to the standard hi/lo mode, boost by RPM and boost by gear give you absolute control of your power delivery. Initial setup is is incredibly simple using an intuitive menu and a revolutionary gear capture process. Configurable warnings with peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show only the needed range for your application. AutoMeter’s Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection, nitrous, etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Display pressure in PSI, BAR, or kPa and easily data log and display with or without realtime barometric compensation. A direct plug wiring harness is included for ease of installation.

Product Information

Offering an unparalleled feature set, the AutoMeter Boost Controller redefines what a boost controller should be. In addition to the standard hi/lo mode, boost by RPM and boost by gear give you absolute control of your power delivery. Initial setup is is incredibly simple using an intuitive menu and a revolutionary gear capture process. Configurable warnings with peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show only the needed range for your application. AutoMeter’s Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection, nitrous, etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Display pressure in PSI, BAR, or kPa and easily data log and display with or without realtime barometric compensation. A direct plug wiring harness is included for ease of installation.

Technical Information

Features
• User programmable high/low boost, boost by gear, and boost by RPM.
• EZ™ On-Controller Programming - No Need for External Modules
• Exclusive Progressive Overboost Warning System and Peak Recall
• Patented Pro-Control™ Input Allows External Devices to Trigger Safety Mode and Prevent Engine Damage. Patented Pro-Control™ Output Enables Automatic Control of Other Power Systems - Nitrous, Water/Methanol Injection
• Configurable Data Logger Output for Easy ECU or Data Logger Integration.
• Ideal for Single or Twin Turbo Turbocharged Applications. Not For Diesel Applications or Wastegate-less Setups
• Display readings in PSI, kPa, or BAR
• Includes 6ft. Wire harness, MAP sensor, Boost Control Valve
• Programmable high boost warning and shut down modes.
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074061813
Our Part Number
AU6181
Series: COBALT
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Bright Anodized
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: Digital LED
Lighting Color: BLUE LED/Red Yellow Green Segments
Movement: Digital
Gauge Type: Boost Controller
Range: 30 IN HG/30 PSI
Includes Sensor Unit: 2249
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
Includes Tubing: 10 ft. nylon tubing
Includes Mounting Hardware: 2230
Cross Sell: 6197, 6163, 6162, 6158, 6155, 6153
Upsell: 6197, 6163, 6162, 6158, 6155, 6153
Related Item: 2160, BEX-3000, EP-800
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
EZ On-Controller Programming - No Need for External Modules
Exclusive Progressive Overboost Warning System and Peak Recall
Patented Pro-Control Input Allows External Devices to Trigger Safety Mode and Prevent Engine Damage. Patented Pro-Control Output Enables Automatic Control of Other Power Systems - Nitrous, Water/Methanol Injection
Configurable Data Logger Output for Easy ECU or Data Logger Integration.
Ideal for Single or Twin Turbo Turbocharged Applications. Not For Diesel Applications or Wastegate-less Setups
