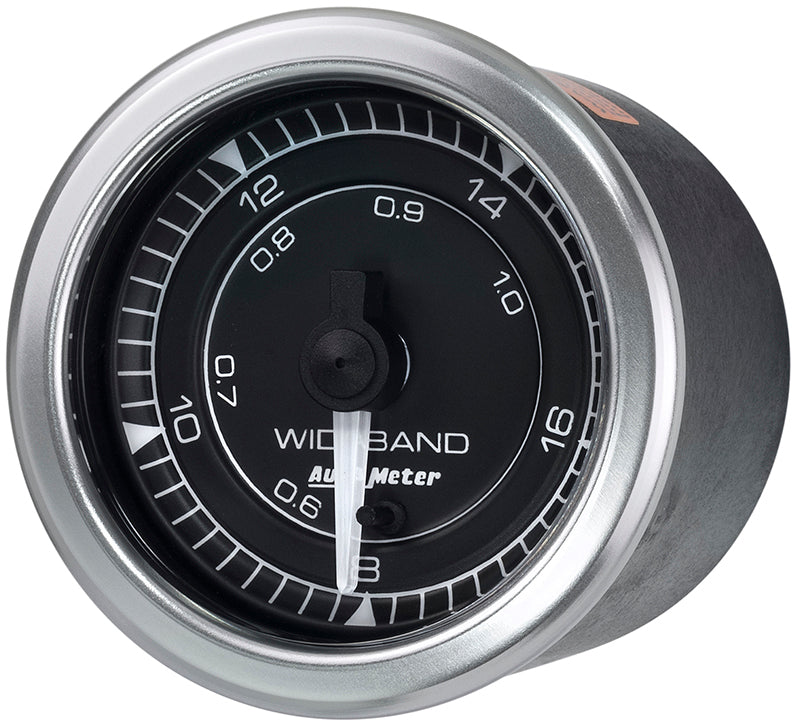

AutoMeter 8170 2-1/16" AIR/FUEL RATIO-WIDEBAND ANALOG 8:1-18:1 STEPPER MOTOR CHRONO

8170 2-1/16" AIR/FUEL RATIO-WIDEBAND ANALOG 8:1-18:1 STEPPER MOTOR CHRONO

Skip to product information
1 of 2
AutoMeter Part No. AU8170
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:AU8170

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Mirroring the functions of AutoMeter’s Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you’re extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.

Product Information

Mirroring the functions of AutoMeter’s Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you’re extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.

Technical Information

Features
• Unique three dimensional dial design gives added depth and style to your custom dash
• Over 320º of pointer movement adds dial scale and resolution, providing the most accurate reading in an analog dial
• Features metric and imperial scalings for easily relatable readings on applications around the world without the need for mental unit conversions
• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
• AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
• Display range of 8:1 to 18:1
• Suitable for use with gasoline powered engines
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074081705
Our Part Number
AU8170
Includes Sensor Unit: 2243
Includes Wire Harness: 5298
Includes Mounting Hardware: 2230
Cross Sell: 8159, 8153, 8162, 8154, 8140, 8197
Upsell: 8159, 8153, 8162, 8154, 8140, 8197
Related Item: 2160, BEX-5000, EP-800, 0423XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Series: CHRONO
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Bright Anodized
Bezel Style: Stack
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: LED
Lighting Color: White
Pointer Color: White
Movement: Electric, Digital Stepper Motor
Gauge Type: Wideband Air/Fuel Ratio (AFR)
Range: 8:1-18:1 AFR
Modern white LED through-the-dial lighting provides clear visibility during nighttime use
Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Display range of 8:1 to 18:1
Suitable for use with gasoline powered engines
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Unique three dimensional dial design gives added depth and style to your custom dash
Over 320° of pointer movement adds dial scale and resolution, providing the most accurate reading in an analog dial
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

AutoMeter

AutoMeter products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.

Read more about AutoMeter →

Warranty View information
Returns
