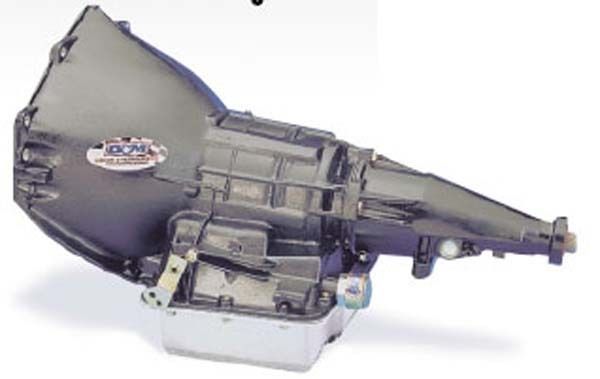

B&M BM127045 Race Transmission Gm Powerglide Shorty w/ Transbrake
B&M BM127045 Race Transmission Gm Powerglide Shorty w/ Transbrake
Regular price
$6,082.40 AUD
Regular price
Sale price
$6,082.40 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
B&M RACE TRANSMISSION GM POWERGLIDE SHORTY
WITH TRANSBRAKE BM127045
The Powerglide race transmissions are available in several configurations depending on the
vehicle and engine combination. If you are bracket racing on Saturday nights or if you are
following a National event schedule or the high dollar bracket races, B&M has the transmission
combination for your vehicle. The standard length models are typically for door car & roadster
applications while the shorty models are mainly for rear engine dragsters. When choosing a
unit it is highly recommended you include E9310 gears and a high strength carrier for cars
running quicker than 11.00's especially if the vehicle weight is over 2600 lbs. The E9310
gears are available in 1.76 helical design or 1.80 straight cut design. The 1.80 ratio gears are
suggested for heavy (3200 lbs) vehicles to improve the launch characteristics and reaction
times as well as for high horsepower applications(cars running 8:50's and quicker). The high
strength carrier features a 4340 output shaft for added strength and durability for those hard
transbrake launches round after round. The Dedenbear case option provides an all new case
as well as it incorporates the SFI requirements for transmission shield and flexplate shield in
one unit. No exterior bolt-on shields are needed when the components are assembled into a
Dedenbear Case. Dedenbear case equipped transmissions also include all new internal linkage
components and pistons. Hand assembled by highly trained technicians along with a fully
tested unit will provide the confidence you require for run after run of consistent performance.
We also sell this part at our retail outlet, we do our best to keep stock quantities on our Ebay listing correct, but to
avoid any disapointment, please contact us to ensure it is in stock before pressing buy it now.
WITH TRANSBRAKE BM127045
The Powerglide race transmissions are available in several configurations depending on the
vehicle and engine combination. If you are bracket racing on Saturday nights or if you are
following a National event schedule or the high dollar bracket races, B&M has the transmission
combination for your vehicle. The standard length models are typically for door car & roadster
applications while the shorty models are mainly for rear engine dragsters. When choosing a
unit it is highly recommended you include E9310 gears and a high strength carrier for cars
running quicker than 11.00's especially if the vehicle weight is over 2600 lbs. The E9310
gears are available in 1.76 helical design or 1.80 straight cut design. The 1.80 ratio gears are
suggested for heavy (3200 lbs) vehicles to improve the launch characteristics and reaction
times as well as for high horsepower applications(cars running 8:50's and quicker). The high
strength carrier features a 4340 output shaft for added strength and durability for those hard
transbrake launches round after round. The Dedenbear case option provides an all new case
as well as it incorporates the SFI requirements for transmission shield and flexplate shield in
one unit. No exterior bolt-on shields are needed when the components are assembled into a
Dedenbear Case. Dedenbear case equipped transmissions also include all new internal linkage
components and pistons. Hand assembled by highly trained technicians along with a fully
tested unit will provide the confidence you require for run after run of consistent performance.
- Four '0' Transbrake with two-wire solenoid.
- All carriers receive new B&M axles & thrust washers.
- Machined clutch pistons for additional clutches
- B&M selector Pro Lever is installed
- B&M steel clutch hub
- Rebuilt front pump
- Cast Deep Pan.
- Shorty w/bearing Extension Housing.
- Helical E9310 1.76 gear
Trans-Brake Included: Yes
Lockup: No
Pan Type: Deep cast aluminum
Fluid Fill Location: Case
Dipstick Included: No
Yoke Style: Slip-on
Input Spline Quantity: 30
First Gear Ratio (Automatic Transmissions): 1.76
Input Style: 300M
Clutch Hub: Steel
Case Material: Aluminum
Case Finish: Black
Transmission Shield Built In: No
Flexplate Shield Built In: No
Safety Rating: SFI 30.1
Quantity: Sold individually.
Notes:Helical E9310 Gears. Speedo drive is NOT included.
