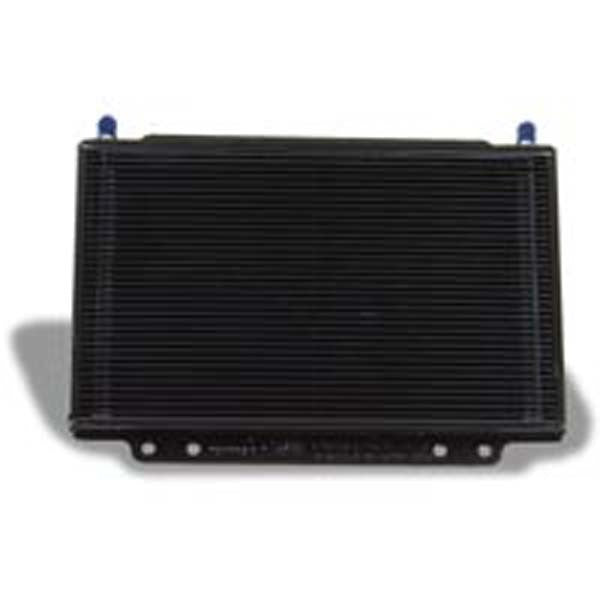

Automatic Transmission Supercooler Aluminium 11.25"X8-1/2"X1" Black
SKU:BM70268
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
- Stacked Plate design.
- Low Pressure Drop feature
- All aluminium construction
- Oven brazed construction
- Small & efficient design
- Includes installation kit
- Overall Height 216mm x Overall Width 285mm x Overall Thickness 26mm.
- 3/8" extended nipple fittings providing improved hose & clamp contact
B&M SuperCoolers are 100% aluminium construction and use stamped plates sandwiched together to create one of the most efficient oil cooling devices available. Not only does this unique design provide for maximised cooling through more efficient heat dissipation but it also provides a much sturdier cooler which is practically impervious to flying rocks or other debris. The Super-Coolers intended for automatic transmission fluid also offer an additional feature known as "Low Pressure Drop". The coolers assembled with hose barb endsinclude a unique bypass feature allowing a controlled amount of ATF to bypass the stacked plate core when the fluid is cold. This is beneficial in cold climate areas to guard against lube system failure. Controlled by viscosity, fluid is returned directly to the lube circuit through bypass openings in the stacked plate core. As the temperature increases, more ATF is directed through the core. This highly efficient design combines improved protection against lube system failure with the required levels of optimal heat transfer.
- Fluid Cooler Type:Transmission Fluid
- Overall Height (in.):8.500 in.
- Overall Width (in.):11.250 in.
- Overall Thickness (in.):1.000 in.
- Cooler Construction:Plate
- Cooler Material:Aluminum
- Fluid Cooler Inlet Size:0.375 in.
- Inlet Attachment:Hose barb
- Fluid Cooler Outlet Size:0.375 in.
- Outlet Attachment:Hose barb
- Fan Included:No
- Number of Cooling Rows:36
- Core Height (in.):7.000 in.
- Core Width (in.):11.250 in.
- Core Thickness (in.):1.000 in.
- Cooler Finish:Black painted
- Quantity:Sold individually.
- Notes:Fittings and hose included with kit.
