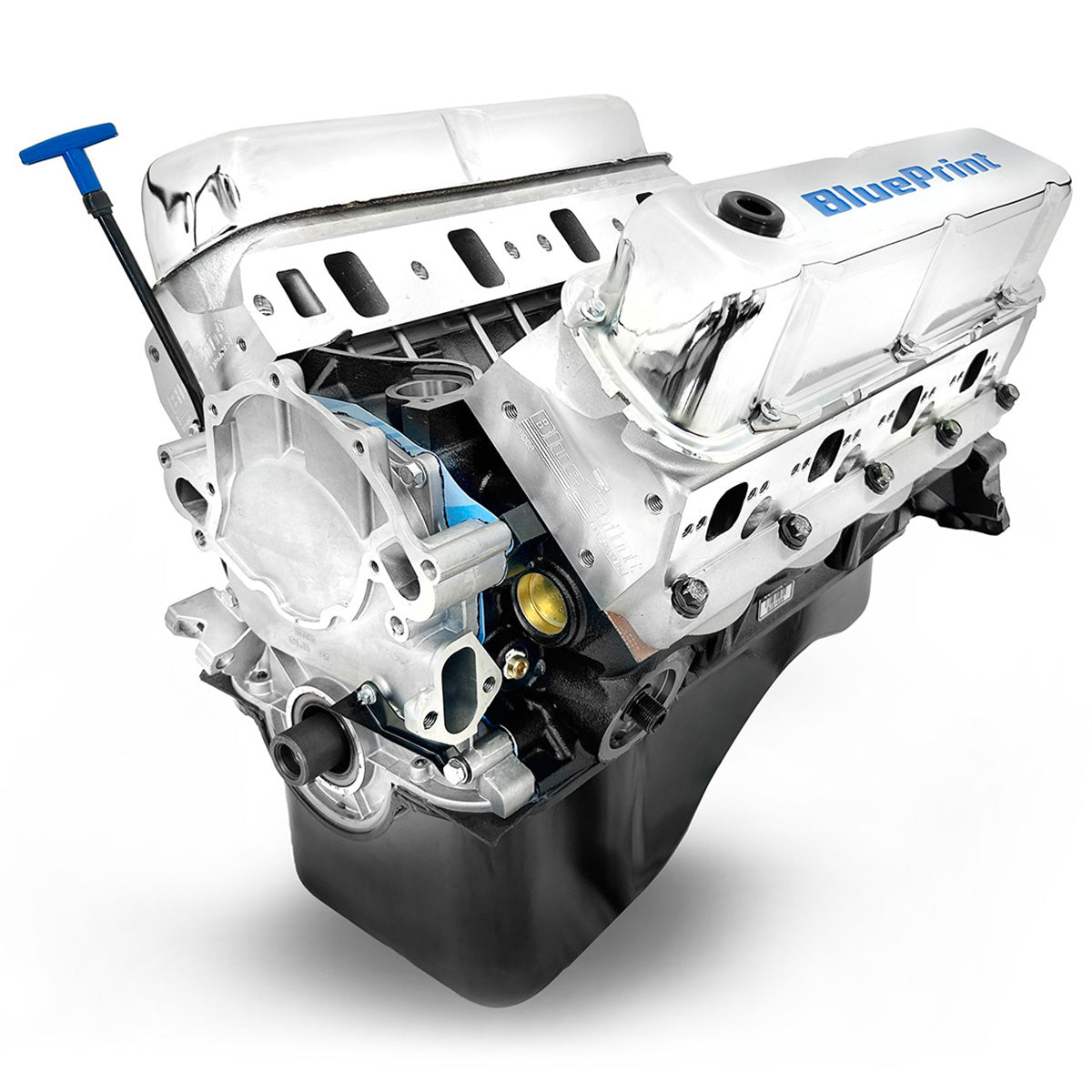

BluePrint BP302CT Ford SB 302 CI Cruiser Crate Engine Longblock 361HP

BluePrint Engines 302 c.i.d. Cruiser base crate engines make an excellent choice for daily drivers and cruising. These crate engines make up to 16 inches of vacuum and are designed to work great with power brakes, stock torque converter, stock gearing.

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Details and specs:

• 361 hp/334 lbs.-ft.
• Compression ratio: 9.4:1
• Aluminum heads
• Hydraulic roller cam
• Cast iron crankshaft
• Hypereutectic pistons

Block:

• New BluePrint cast iron block
• 4-bolt main
• 4.000 in. bore
• One-piece rear main seal
• Mechanical fuel pump provision

Rotating Assembly:

• Cast iron crankshaft
• 3.00 in. stroke
• OEM 5.090 in. connecting rods
• Hypereutectic pistons
• 50oz external engine balance

Cylinder heads:

• BluePrint aluminum cylinder heads (HP9008)
• 60cc chamber
• 2.02 in. intake/1.60 in. exhaust valves
• 190cc intake/60cc exhaust runners

Roller Cam specs:

• .533 intake/.544 exhaust
• 215 intake/220 exhaust duration @ .050 - 114-degree lobe separation

Ignition timing:

• 10-16 degrees initial with 32-34 degrees total

Also includes:

• Valve covers
• Oil pan
• Timing cover
• Dyno tested results shipped with engine

Specifications:

• UPC: 00887753841230
• Crate Engine Family: Ford Windsor
• Actual Engine Displacement: 5.0L/302
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 9.4:1
• Assembled: Yes
• Engine Balance: External, 50 oz. imbalance
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: No
• Cylinder Heads Included: Yes
• Carburetor Included: No
• Throttle Body Included: No
• Distributor Included: No
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
• Notes: Engine has 4-bolt mains.
