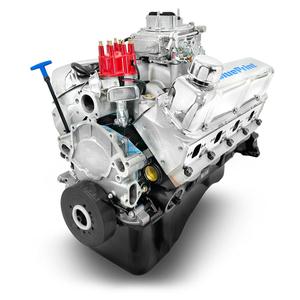

BluePrint BP3479CTC Ford SB 347 CI Stroker Crate Engine Dressed Long w/ Carb 415HP

BluePrint Engines Ford 347 C.I.D. 415 HP Dressed Stroker Long Block Crate Engines

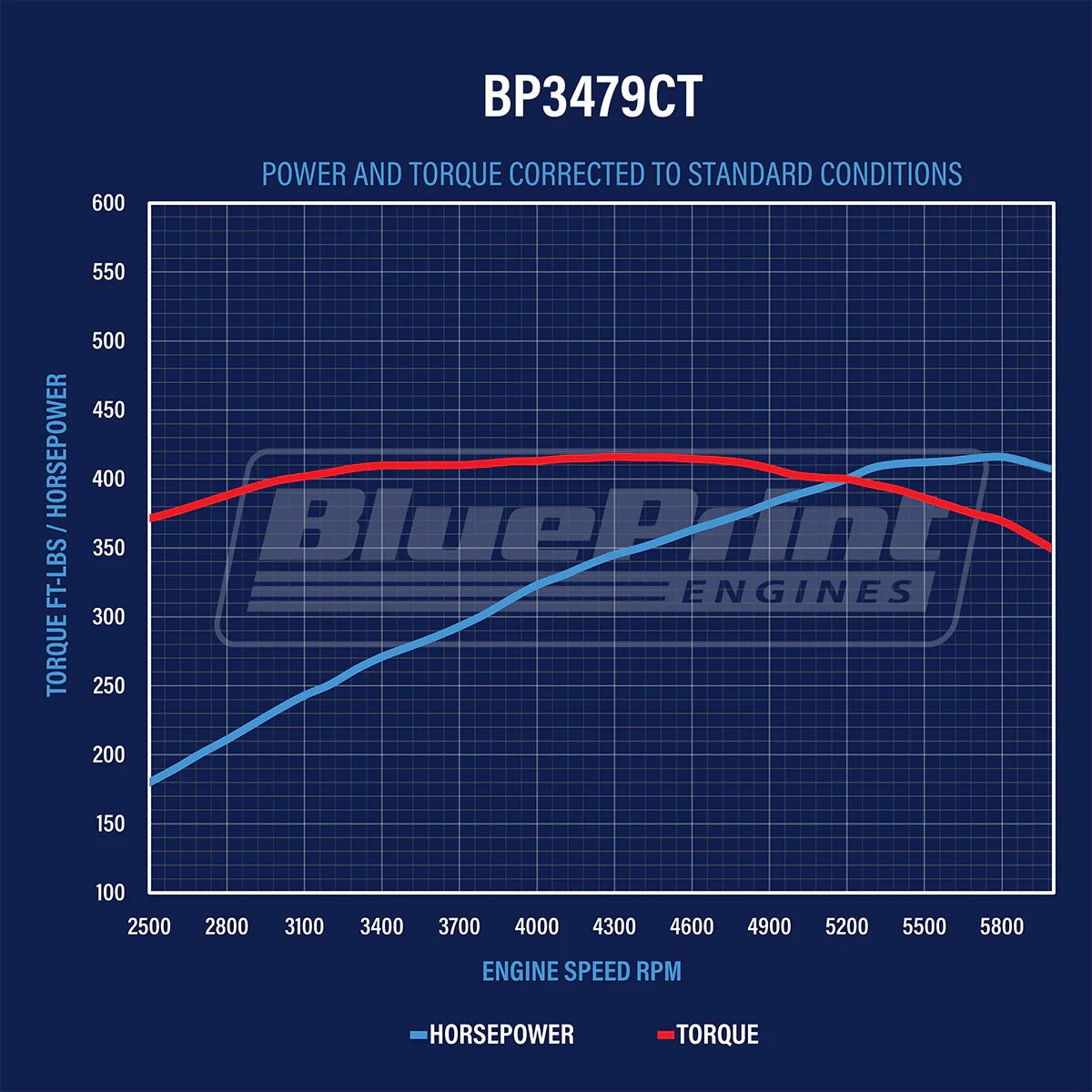

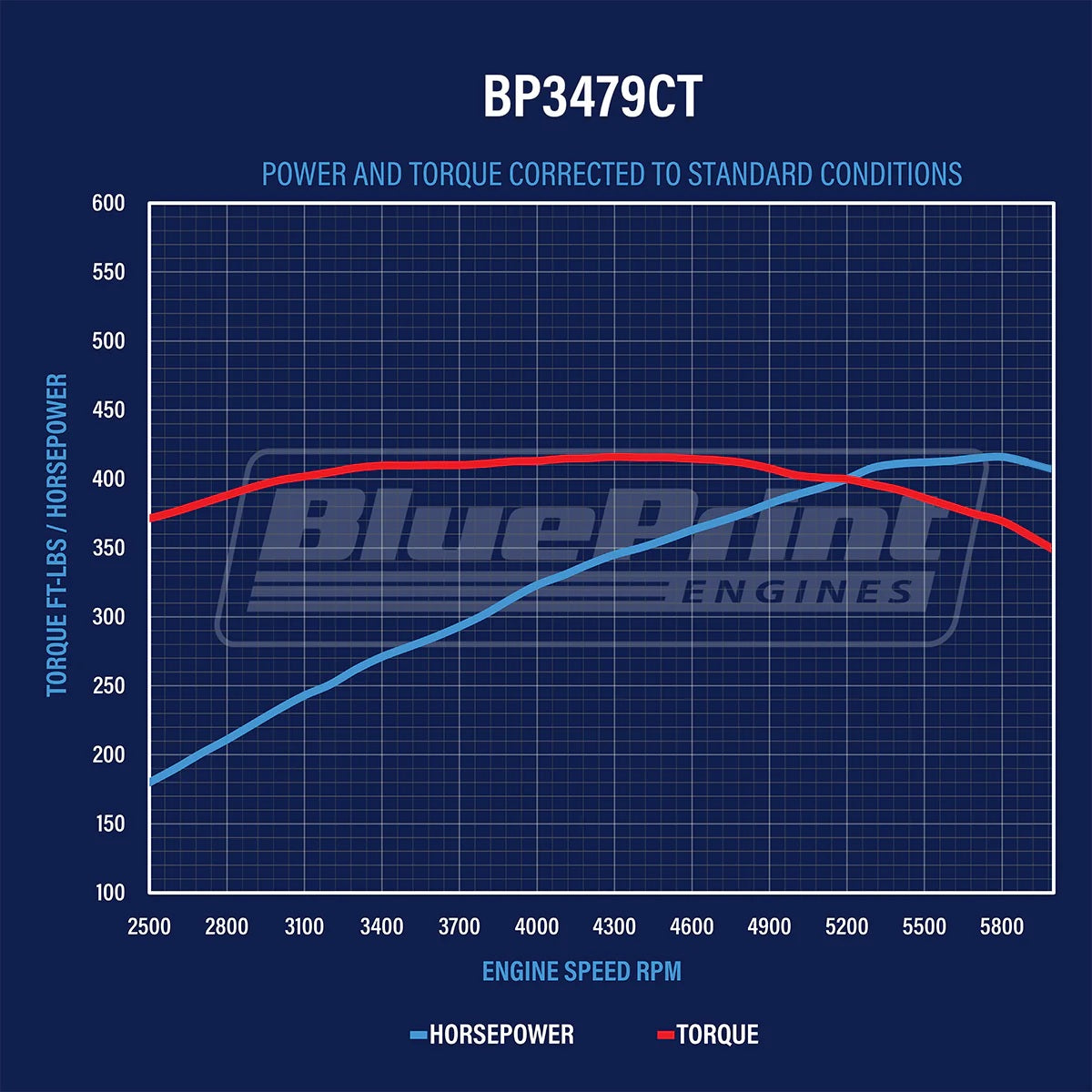

Satisfy your craving for horsepower with BluePrint 347 c.i.d. 415 hp dressed stroker long block crate engines, meticulously built by a solid, reputable company that does the job right and stands behind their work. BluePrint custom-built crate and stroker performance engines are always balanced and dyno-tested to add a lot of muscle to your fun! Plus, they're shipped with the dyno results so you can see the BluePrint difference! So, where will you get your horsepower from?

Block:

• New BluePrint cast iron block
• Square and parallel decked
• Align-honed main bearing bore
• Cylinders honed on computer-controlled machine to within .0002 in. straightness and roundness
• Cylinders are sonic tested for thickness

Rotating assembly:

• New cast steel crankshaft
• New rods with 150,000 psi bolts
• Forged pistons
• Moly rings
• Balanced rotating assembly
• High-volume oil pump
• Hydraulic roller camshaft
• Heavy-duty, double-roller timing set

Cylinder heads:

• Aluminum heads
• Swirl-polished intake and exhaust valves
• Hardened pushrods

Plus:

• Dual plane, satin aluminum intake manifold
• Carburetor
• Distributor
• Valve covers
• Painted oil pan
• Brass freeze plugs

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Specifications

• UPC: 00887753908254
• Crate Engine Family: Ford Windsor
• Actual Engine Displacement: 5.7L/347
• Crate Engine Cylinder Head Material: Aluminum
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Engine Balance: External, 28 oz. imbalance
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually
• Notes: Engine has 4-bolt mains.
• Special Attention: Includes a 670 cfm carburetor with electric choke.
