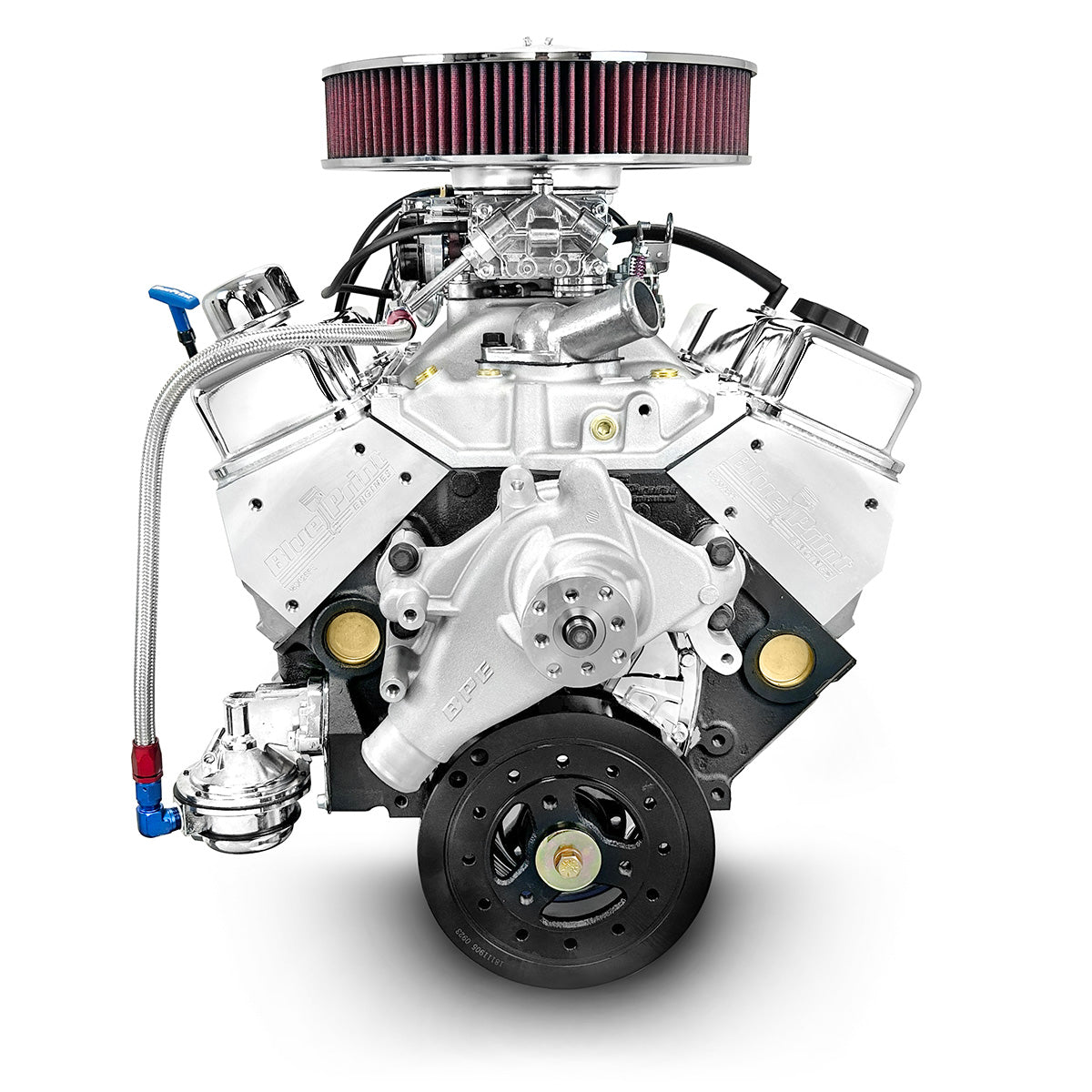

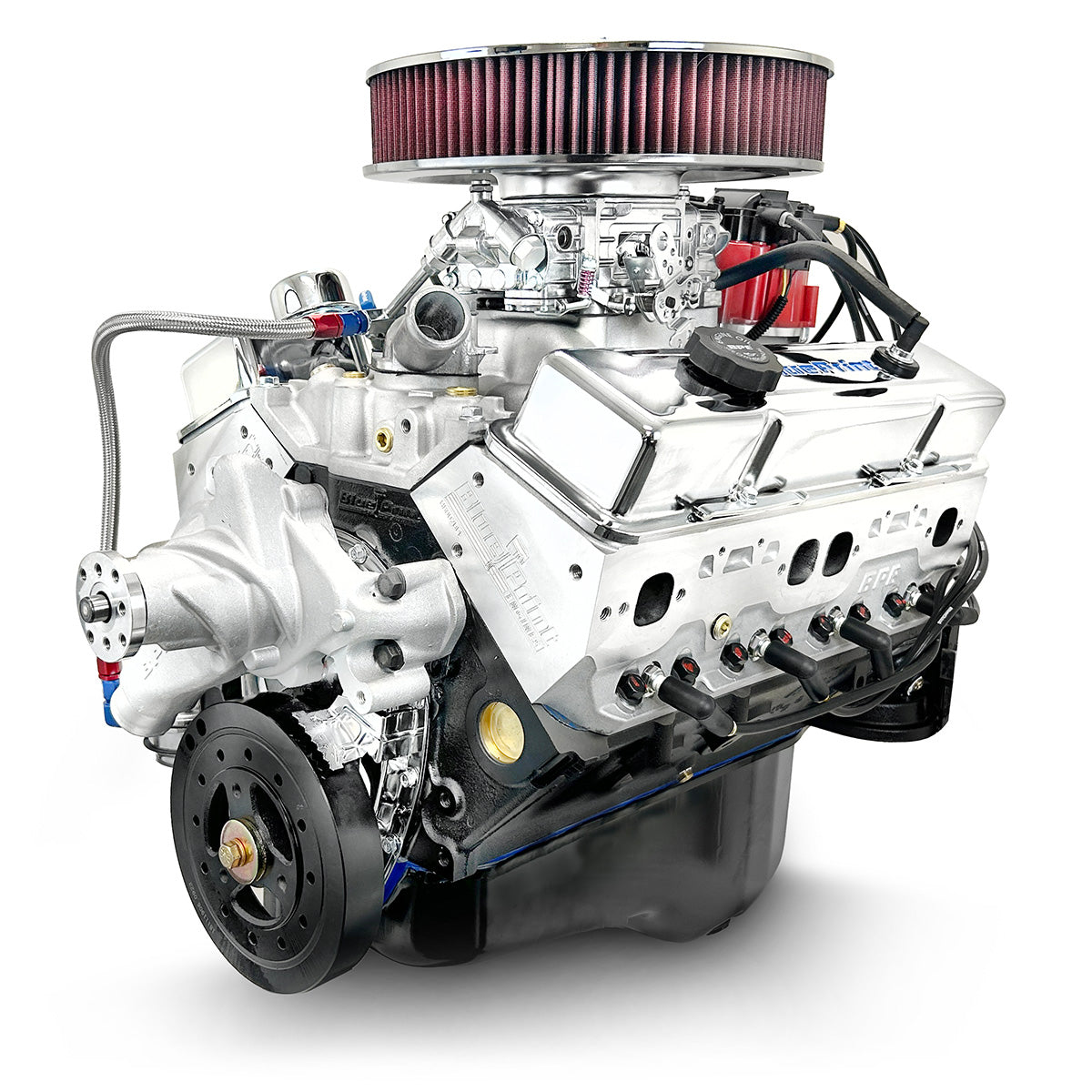

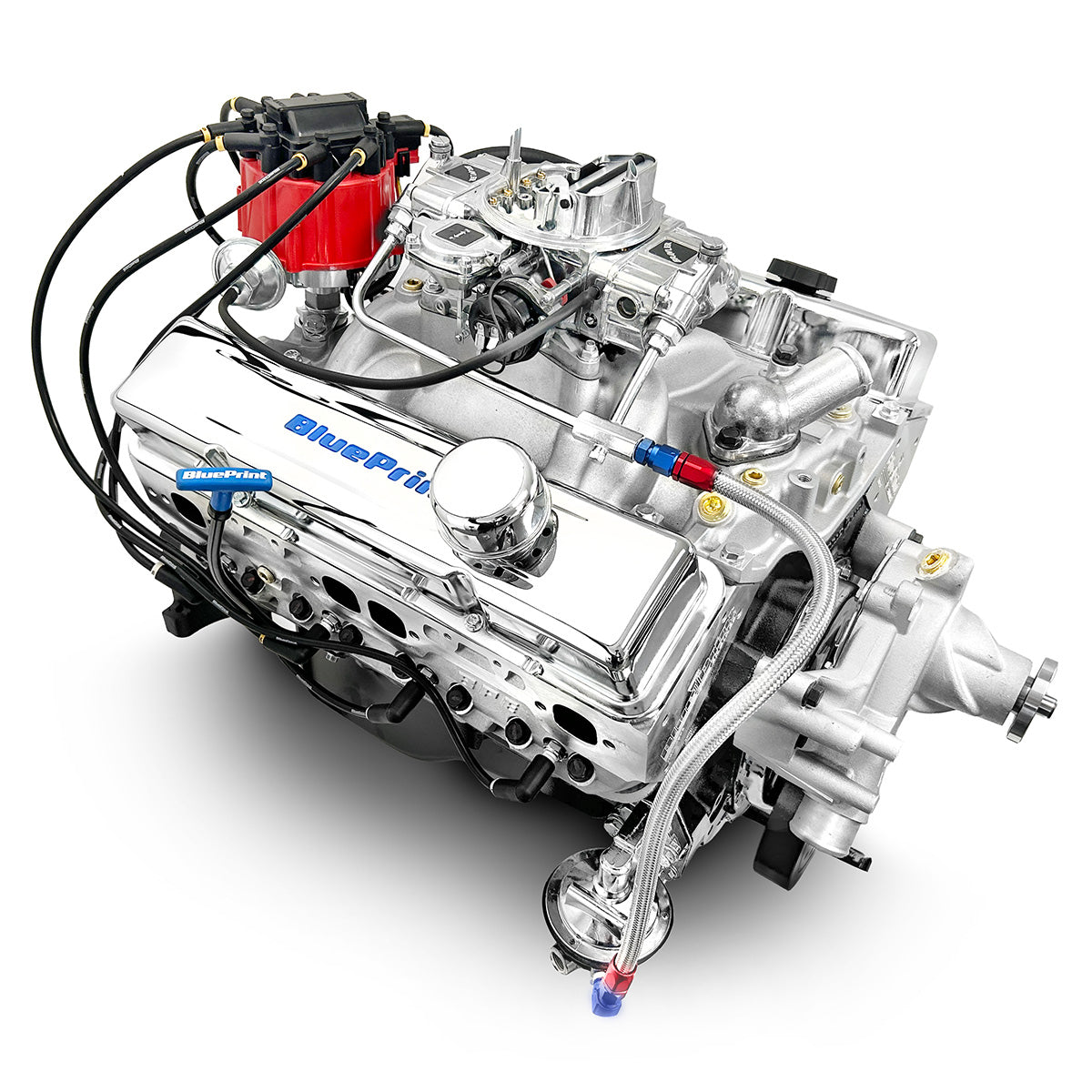

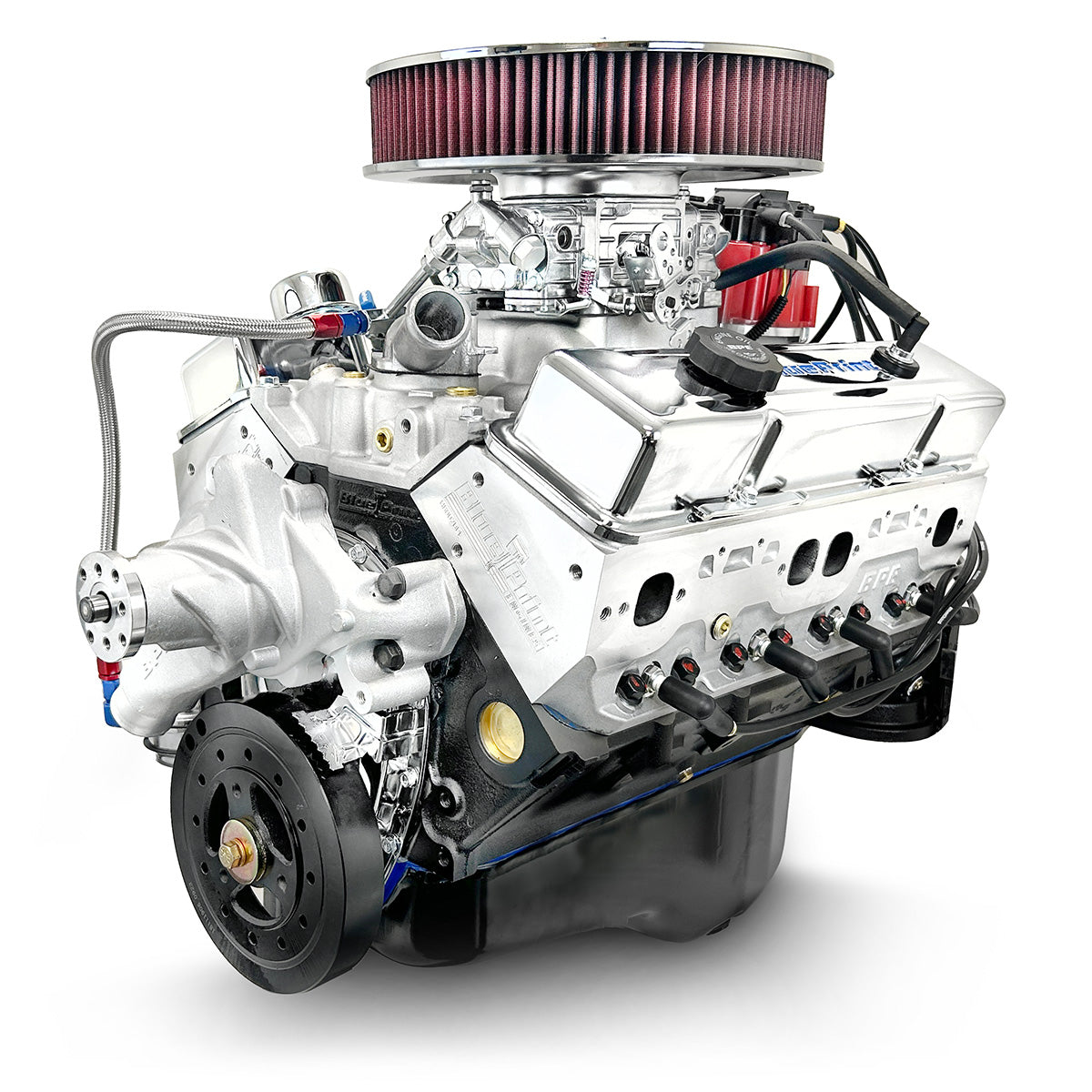

BluePrint BP350CTCD Chev SB 350 CI Crate Engine Dressed Longblock w/ Carb

BluePrint BP350CTCD Chev SB 350 CI Crate Engine Dressed Longblock w/ Carb

BluePrint Engines 350 C.I.D. Cruiser Fully Dressed Crate Engines

BluePrint Engines 350 c.i.d. Cruiser fully dressed crate engines make an great choice for daily drivers and cruising. These fully dressed engines make up to 18 in. of vacuum and work excellent with power brakes, stock torque converter and stock gearing and they will run on 87 octane fuel.

Details and specs:

* 341 hp/371 lbs.-ft.
* Compression Ratio: 9.2:1
* Aluminum heads
* Hydraulic roller cam
* Cast iron crankshaft
* Hypereutectic pistons

Block:

* New BluePrint cast iron block
* 4-bolt main
* 4.000 in. bore
* One-piece rear main seal
* Mechanical fuel pump provision
* Passenger side dipstick
* Drilled and tapped for clutch linkage

Rotating Assembly:

* Cast iron crankshaft
* 3.480 in. stroke
* Forged 5.700 in. connecting rods
* Hypereutectic pistons
* Internal front/external rear engine balance

Cylinder Heads:

* BluePrint aluminum cylinder heads (H8002K)
* 64cc chamber
* 2.02 in. intake/1.60 in. exhaust valves
* 195cc intake/75cc exhaust runners

Roller Cam specs:

* .477 intake/.471 exhaust
* 202 intake/212 exhaust duration @ .050 - 115-degree lobe separation

Ignition timing:

* 32 degrees total at 3,500 rpm

Also includes:

* Valve covers
* Harmonic balancer
* Spark plugs
* Spark plug wires
* Standard rotation long style water pump
* Waterneck and thermostat
* Fuel pump
* Oil pan
* Timing cover
* Aluminum intake
* HEI distributor
* 600 cfm carburetor

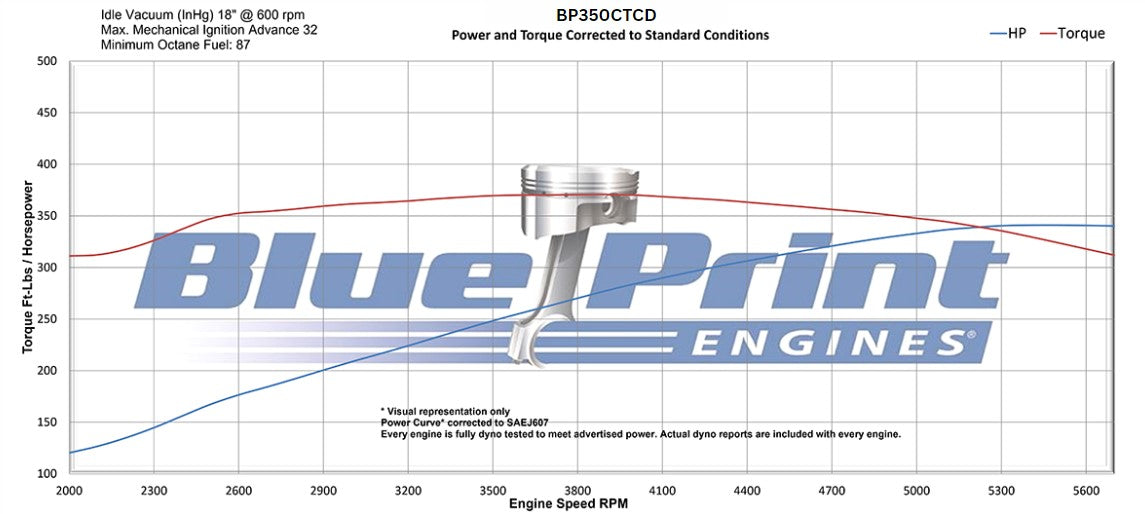

* Dyno test results shipped with engine

Specifications

• UPC: 00887753800763
• Crate Engine Family: Chevy Small Block
• Actual Engine Displacement: 5.7L/350
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 9.2:1
• Assembled: Yes
• Engine Balance: Internal/External
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: Yes
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: No
• Wiring Harness Included: No
• Water Pump Style: Long
• Stall Speed Rating RPM Range: Stock
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
• Notes: Ready to drop in and includes fuel pump, 600 cfm carburetor, and HEI distributor. Will not clear stock Corvette hood. Passenger side dipstick. Block is drilled and tapped for clutch linkage.
