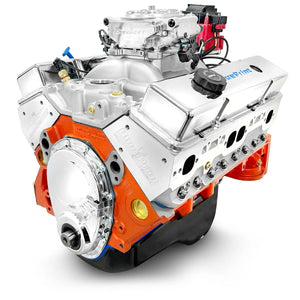

BluePrint BP4002CTF Chev 400 CI Crate Engine Dressed w/ EFI 500HP

BluePrint Engines GM 400 C.I.D. 508 HP EFI Stroker Fully Dressed Long Block Crate Engines

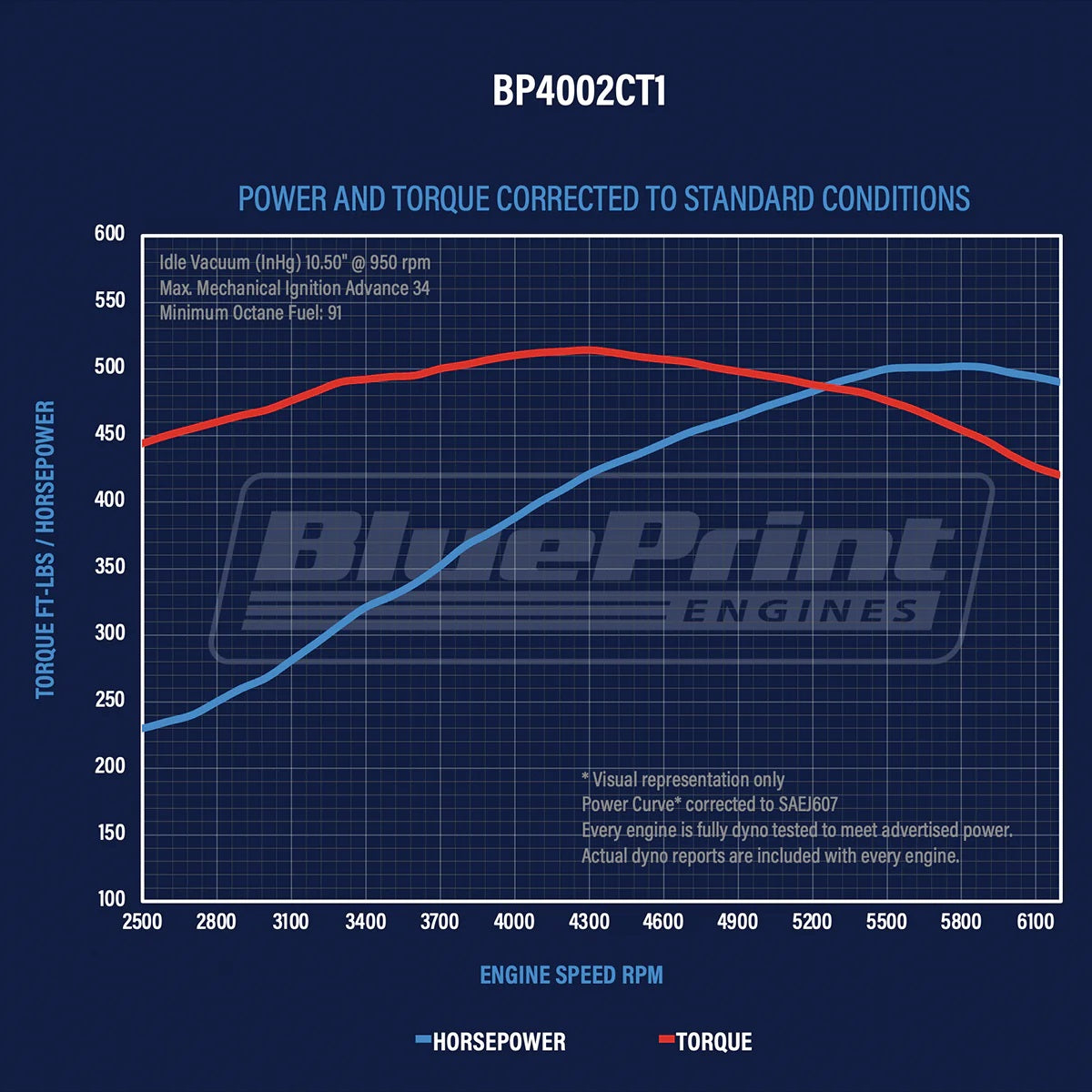

BluePrint Engines GM 400 c.i.d., 508 hp EFI stroker fully dressed long block crate engines deliver an impressive 508 hp and 473 lbs.-ft. of torque! With a 30-month/50,000-mile warranty, these engines are built for drivable, reliable high-performance. Each assembly is manufactured with strict tolerances for outstanding, consistent results. BluePrint GM 400 EFI stroker engines are dyno-tested, with dyno sheets included.

Features:

• BluePrint cast iron block
• Cast steel 3.750 in. stroke crankshaft
• 5.700 in. long connecting rods
• Forged pistons
• 10.3:1 compression ratio

Camshaft:

• Hydraulic roller camshaft
• .555 in. lift intake / .576 in. lift exhaust
• 236 intake / 242 exhaust duration @ 0.050 in. lift
• 110-degree lobe separation

Cylinder Heads:

• BluePrint aluminum cylinder heads

Additional Components:

• Premium single true roller timing set
• Dual plane intake manifold

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Specifications:

• UPC: 00887753743992
• Crate Engine Family: Chevy Small Block
• Actual Engine Displacement: 6.6L/400
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 10.3:1
• Assembled: Yes
• Engine Balance: External
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Fuel Injection
• Cylinder Heads Included: Yes
• Carburetor Included: No
• Throttle Body Included: Yes
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: Yes
• Wiring Harness Included: Yes
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
• Notes: This engine requires a weighted harmonic balancer (external balance) and a late-style 350 CID (1-piece rear main) weighted flexplate/flywheel. It includes tall chrome valve covers and 1.6 ratio full roller aluminum rocker arms.
