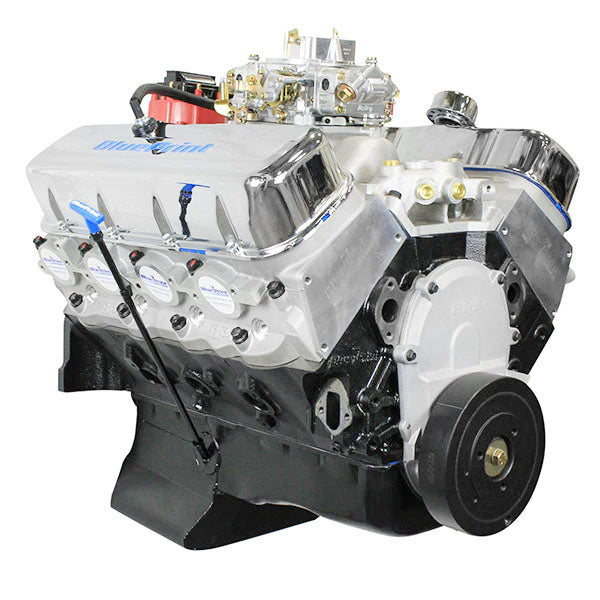

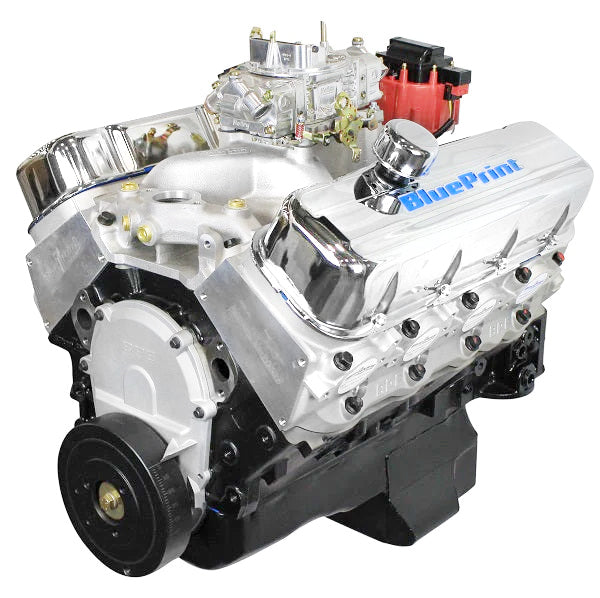

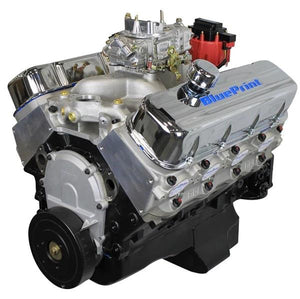

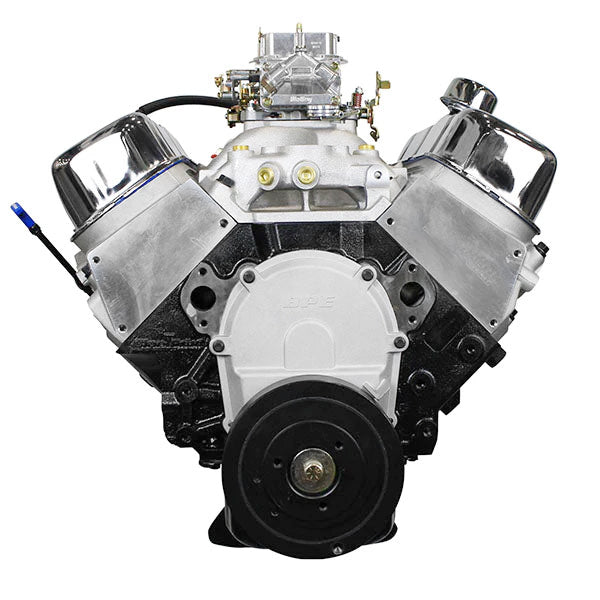

BluePrint BP454CTC Chev BB 454 CI Crate Engine Dressed w/ Carb 460HP

BluePrint Engines GM 454 C.I.D. 460 HP Cruiser Dressed Long Block Crate Engines

BluePrint Engines GM 454 c.i.d. 460 hp Cruiser dressed long block crate engines come in three models, two featuring complete front accessory drives. All models deliver 460 hp and 479 lbs.-ft. of torque, designed for cruisers and daily driving with great low-end power. These engines are ideal for setups with power brakes, stock torque converters, and stock gearing, running smoothly on 87 octane fuel.

Specifications:

• Power Output: 460 hp / 479 lbs.-ft.
• Compression Ratio: 9.85:1
• Warranty: 30-month / 50,000-mile

Block:

• New BluePrint cast iron block (454 BBC)
• 4-bolt main, 4.250 in. bore
• Standard deck height, 1-piece rear main seal
• Mechanical fuel pump provision

Rotating Assembly:

• New BluePrint forged crankshaft
• 4.000 in. stroke with 4.250 in. bore
• 6.135 in. rods with 150,000 psi bolts
• Hypereutectic pistons, external balance (42.5 oz.)

Cylinder Heads:

• BluePrint aluminum cylinder heads
• 119cc chambers, 2.30 in. intake / 1.88 in. exhaust valves
• 316cc intake / 124cc exhaust runners with a .300 in. raised exhaust port (header/exhaust clearance required)

Camshaft:

• Hydraulic roller camshaft
• .501 in. lift intake / .510 in. lift exhaust
• 216 intake / 228 exhaust duration @ .050 in.
• 112-degree lobe separation

Ignition Timing:

• Initial: 10-16 degrees
• Total: 32-36 degrees at 3,500 rpm

Also Includes:

• Satin aluminum single-plane intake manifold
• 850cfm carburetor
• Valve covers, oil pan, timing cover
• Dyno test results included

Model-Specific Inclusions:

• BP454CTCK: Polished front accessory drive system with A/C, P/S, WP, belts, and pulleys
• BP454CTCKB: Black front accessory drive system with A/C, P/S, WP, belts, and pulleys

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Specifications:

• UPC: 00887753802842
• Crate Engine Family: Chevy Big Block
• Actual Engine Displacement: 7.4L/454
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 9.85:1
• Assembled: Yes
• Engine Balance: External, 42.5 oz. imbalance
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
• Notes: New BluePrint Cast Iron 4-bolt main block. This engine is not designed or intended for marine applications.
