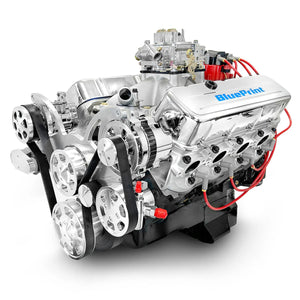

BluePrint BP4967CTCK 496 Stroker Crate Engine Dressed w/ Carb 600HP

BluePrint Engines GM 496 C.I.D. 600 HP Stroker Dressed Carbureted Long Block Crate Engines

Give your ride a new breath of life with BluePrint Engines GM 496 c.i.d. 600 hp stroker dressed carbureted long block crate engines with aluminum heads. These engines crank out an incredible 600 hp and 568 ft.-lbs. of tire-shredding torque. Each engine is hand-built and balanced to provide you with a powerful mill that is sure to kick some fresh life into your project car or hot rod.

Block:

• Cast iron 454 big block
• Cylinders honed to within .0002 straightness and roundness
• Cylinders are sonic-tested for thickness
• 4.250 in. stroke, bored .060 in. over
• Standard deck

Rotating Assembly:

• Forged steel crankshaft
• OEM-type connecting rods with 150,000 psi rod bolts
• Hypereutectic pistons, 10.1 to 1 Compression ratio
• Hydraulic roller camshaft

Additional Features:

• Aluminum cylinder heads
• 850 cfm carburetor
• Aluminum intake manifold
• Valve covers, oil pan

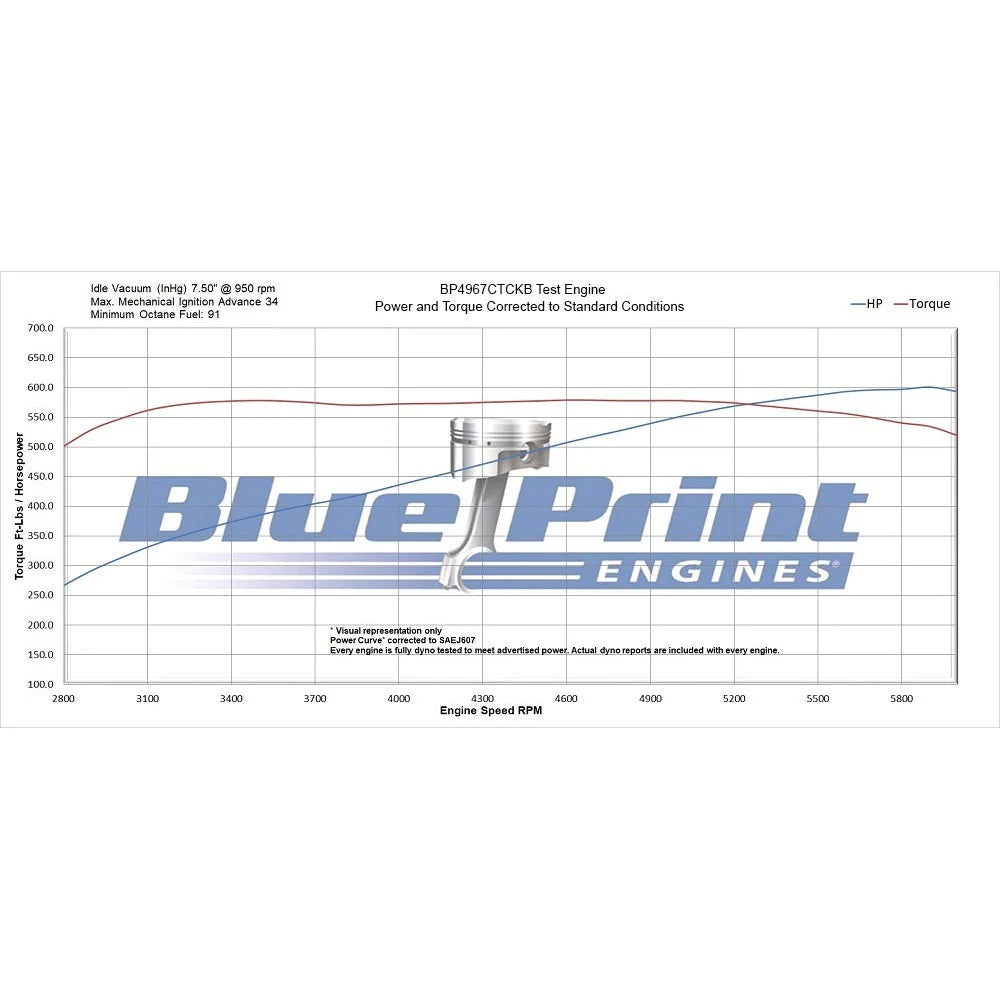

• Dyno test results shipped with engine

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

• UPC: 00887753837127
  Crate Engine Family: Chevy Big Block
  Actual Engine Displacement: 8.1L/496
  Crate Engine Cylinder Head Material: Aluminum
  Advertised Compression Ratio: 10.1:1
  Assembled: Yes
  Engine Balance: External
  Cam Style: Hydraulic roller, OE roller
  Rear Main Seal Style: 1-piece
  Intake Manifold Included: Yes
  Intake Manifold Style: Carbureted
  Cylinder Heads Included: Yes
  Carburetor Included: Yes
  Throttle Body Included: No
  Distributor Included: Yes
  Oil Pan Included: Yes
  Valve Covers Included: Yes
  Timing Cover Included: Yes
  Water Pump Included: Yes
  Harmonic Balancer Included: Yes
  Flexplate Included: No
  Flywheel Included: No
  Air Cleaner Included: No
  Spark Plugs Included: Yes
  Spark Plug Wires Included: Yes
  Computer Included: No
  Wiring Harness Included: No
  Supercharger Included: No
  Remanufactured: No
  Quantity: Sold individually
  Notes: Standard deck engine has 4-bolt mains. Includes polished front pulley kit
  Special Attention: Includes an 850 cfm carburetor. Cylinder heads feature a 0.300 in. raised exhaust port vs. an OEM casting.
